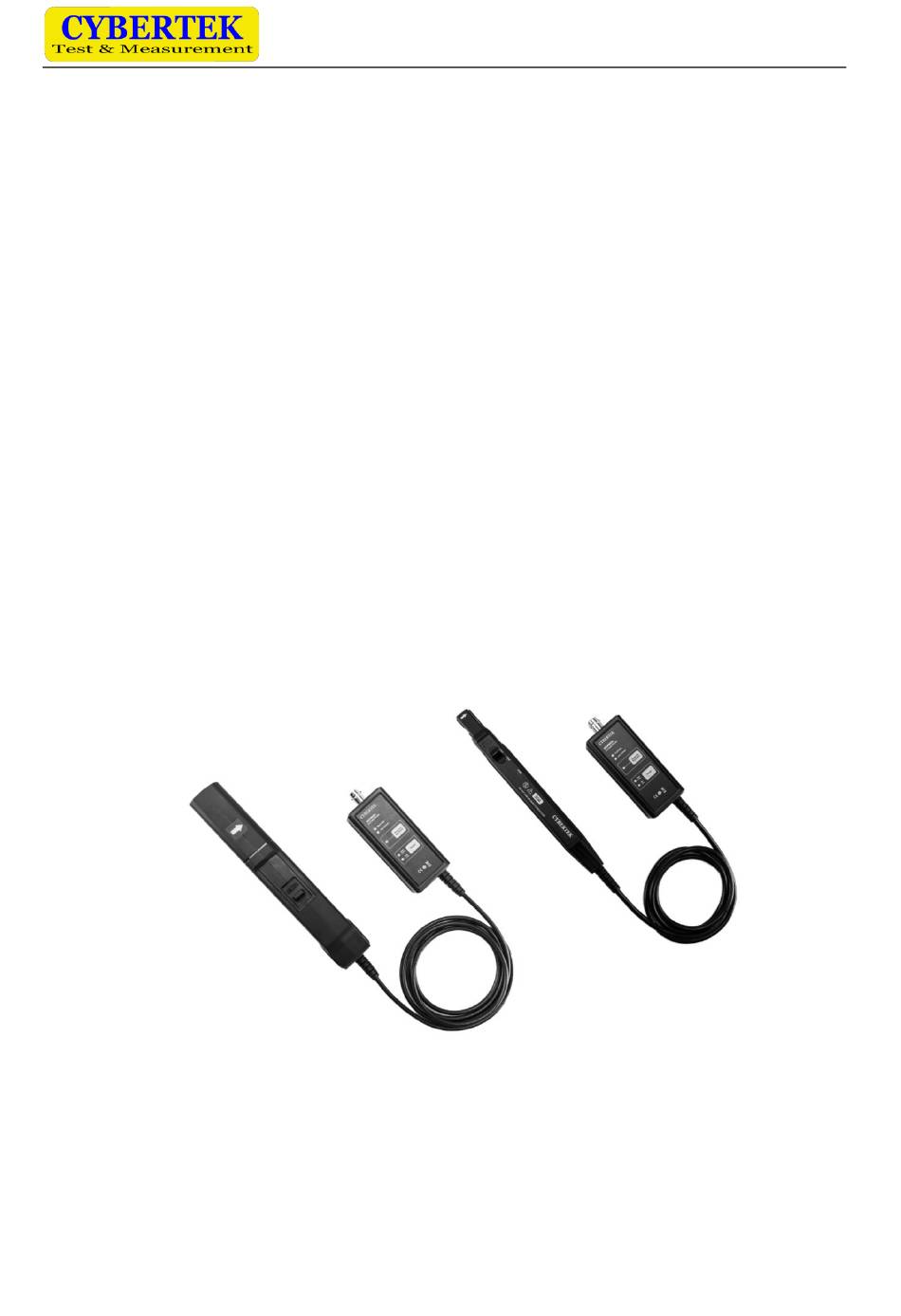

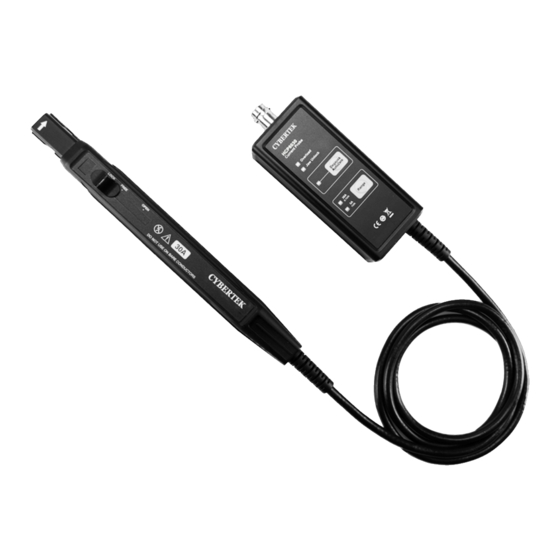

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd DC/AC Current Probes HCP8000 Series HCP8030 30A/DC～ 50 MHz HCP8030D 30A/DC～100 MHz HCP8050 50A/DC～ 50 MHz HCP8150 150A/DC～12 MHz HCP8300 300A/DC～ 6 MHz HCP8500 500A/DC～ 5 MHz Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
-
Page 2: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd Safety Notices A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data. Do not proceed beyond a CAUTION notice until the indicated conditions are fully understood and met. -
Page 3: Features And Applications
Shenzhen Zhiyong Electronics Co., Ltd 1. Features and Applications The HCP8000 series current probes are wide band width DC/AC active current probes, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. - Page 4 Shenzhen Zhiyong Electronics Co., Ltd HCP8150 HCP8300 HCP8500 1) Sensor Head The core component to measure conductor current. The component contains a precise semi-conductor that could be damaged by drastic change of environmental temperature, external pressure and shock. Please be careful during measurement.
-
Page 5: Making Measurements
3. Making Measurements Before using the probe, check that the system is safe and that the preparations described in Safe Probing. Have a visual inspection of the current probe of high frequency HCP8000 Series probes, power supply, cable, and oscilloscope. ... -
Page 6: Safe Probing
Shenzhen Zhiyong Electronics Co., Ltd Do not demagnetize while the conductor being measured is clamped. This could damage the components of the circuit being measured. Also, check that the conductor being measured is not clamped when supplying power to the current probe for the same reason. Demagnetized waveforms are generated when switching on the supply. - Page 7 Before using the device the first time, verify that it operates normally to ensure that the no damage occurred during storage or shipping. If you find any damage, contact your dealer or CYBERTEK representative. This device is not designed to be entirely water- or dust- proof. To avoid damage, do not use it in a wet or dusty environment.
-
Page 8: Accessories Description
Shenzhen Zhiyong Electronics Co., Ltd indicates an upper waveform response limit of 30A peak. Use the sensor at RMS current input levels that are within the rated continuous maximums. (2) Indicates the upper response limit for a single input pulse. ... -
Page 9: Specification
Shenzhen Zhiyong Electronics Co., Ltd 6. Specification Electrical characteristics Model HCP8030(D) HCP8050 HCP8150 HCP8300 HCP8500 DC-50MHz HCP8030 Bandwidth (Figure 1.a) DC-50MHz DC-12MHz DC-6MHz DC-5MHz (-3dB) (Figure 4) (Figure7) (Figure10) (Figure13) DC-100MHz HCP8030D (Figure 1.b) ≤7ns HCP8030 ≤7ns ≤29ns ≤58ns ≤70ns Rise time ≤3.5ns HCP8030D... - Page 10 Shenzhen Zhiyong Electronics Co., Ltd Fig 1 .a HCP8030 Fig 1 .b HCP8030D Amp- Frequency curve Amp- Frequency curve Fig 2.a HCP8030 Fig 2.b HCP8030D Continuous maximum input measurement Continuous maximum input measurem Fig. 3.a HCP8030 Fig. 3.b HCP8030D Input impedance VS Frequency Input impedance VS Frequency...
- Page 11 Shenzhen Zhiyong Electronics Co., Ltd Fig 4 HCP8050 Fig 5 HCP8050 Amplitude-Frequency Curve Continuous maximum input rating Fig 6 HCP8050 Figure 7 HCP8150 Input Impedance-frequency curve Amplitude-Frequency Curve Fig 8 HCP8150 Fig 9 HCP8150 Continuous maximum input measurement Input Impedance-Frequency curve...
- Page 12 Shenzhen Zhiyong Electronics Co., Ltd Fig 10 HCP8300 Fig 11 HCP8300 Amplitude-frequency Curve Continuous maximum input measurement Fig 12 HCP8300 Fig 13 HCP8500 Input Impedance-Frequency Curve Amplitude-frequency Curve Fig 14 HCP8500 Fig 15 HCP8500 Maximum continuous input measurement Input Impedance-Frequency Curve...
-
Page 13: Operating Method
Shenzhen Zhiyong Electronics Co., Ltd Mechanical characteristics Model HCP8030(D) HCP8050 HCP8150 HCP8300 HCP8500 Measurement conductor 20mm diameter max. 1.5m Cable length 100cm Cable length(CK-310) Adapter dimensions(CK-612) 62*58*29mm line：1.5m Clamp dimensions 176*39.5*18mm 174*67.5*30mm （L*W*H） Termination unit（L*W*H） 91.5*40*26.5mm Probe weight 255g 555g 525g 525g Environmental characteristic... - Page 14 At the lock state, please do not press the entire part as shown below. 7.1 Preparation before testing Prepare the high frequency current probe HCP8000 series, adapter and oscilloscope Power up the HCP8000 probe and the green LED power indicator will be lighted.
-
Page 15: The Method To Deal With Abnormal Situation
9.2 Can HCP8000 series product measure small current? A: Yes. For now, the HCP8000 series current probe has two optional ranges, and one is for small current. The current resolution of the HCP8030(D) is 1mA. When measuring small current, please accurately zero set and degaussing the probe, and do not change the position of the probe hand grip. -
Page 16: Packing List
Quantity Probe DC-12V/1A adapter BNC connecting line Instruction manual Guarantee card Test report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO.,LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000 Q Q: 400 852 0005 ©Zhiyong Electronics, 2021...
