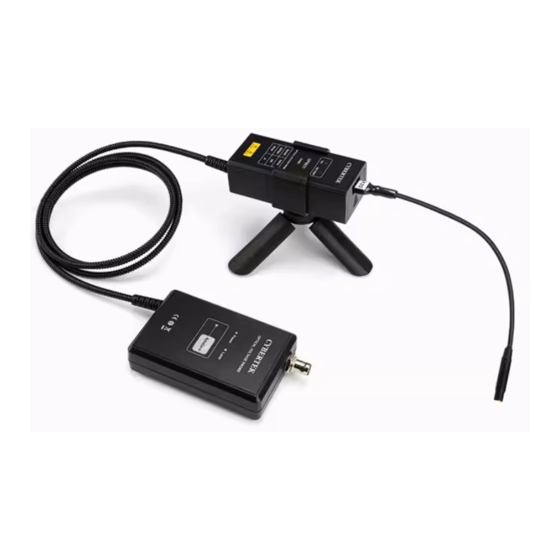

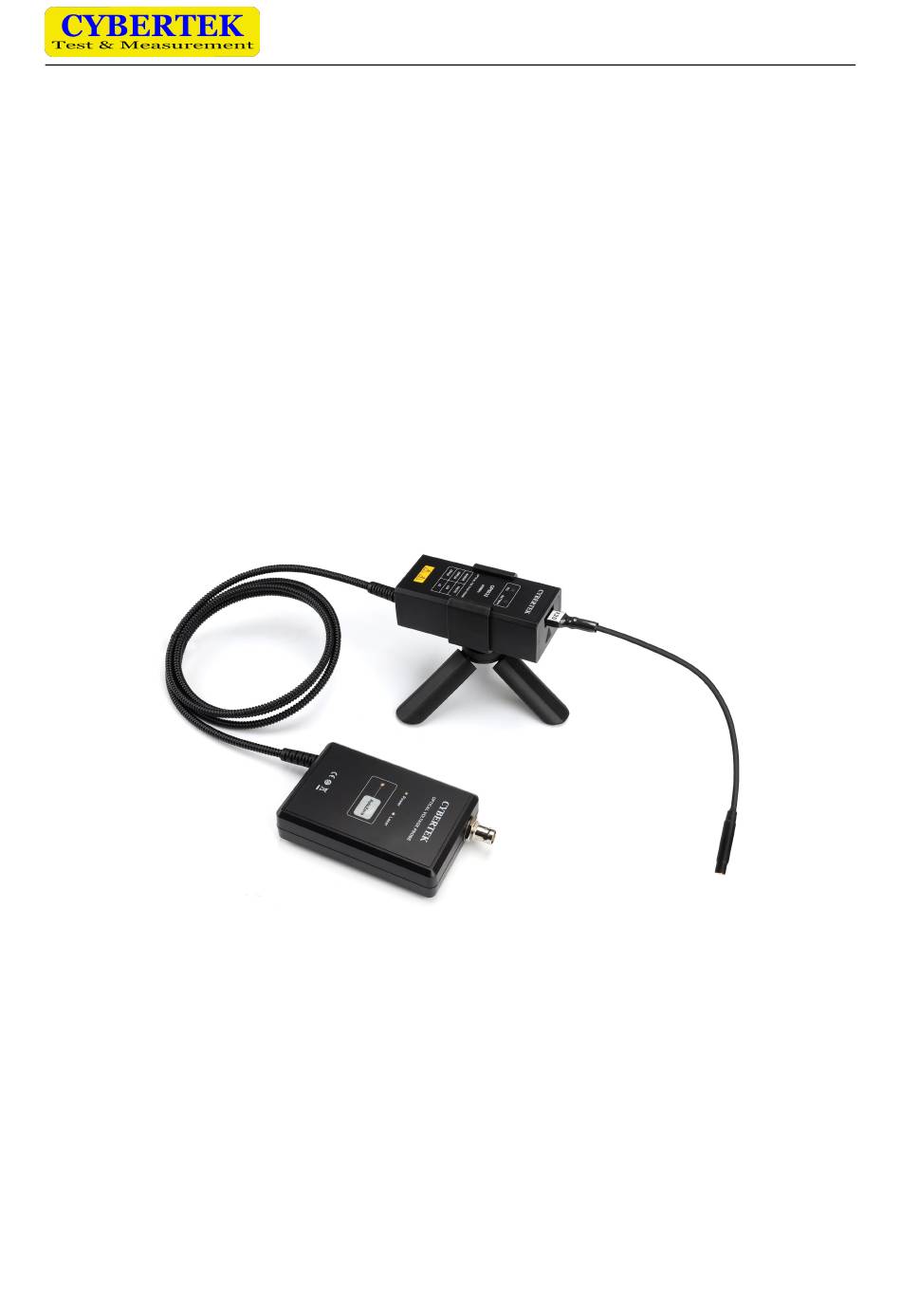

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. Optical Isolated Voltage Probe OP6031 (30V/100MHz) OP6032 (30V/200MHz) Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Check the probe skin and probe lead regularly. If there is any breakage, stop using it immediately. OP6000 series products briefing Maximum Input Model Bandwidth Attenuation Ratio Voltage OP6031 30Vpk 100MHz 2X/20X OP6032 30Vpk 200MHz 2X/20X...
- Page 3 Shenzhen Zhiyong Electronics Co., Ltd. 1. Introduction OP6031/OP6032 is the latest optical isolated voltage probe with remarkably high CMRR. The CMRR of traditional differential probe decreases fast in high-frequency range, as a result, measuring the small voltage signal waveform (e.g., the driving voltage when measuring the upper MOSFET of the half-bridge circuit) under high CM interference voltage accurately become a extremely hard task.
- Page 4 Shenzhen Zhiyong Electronics Co., Ltd. Input connector: USB connector used to connect standard attenuator of 2X or 20X. Please select the corresponding attenuator according to need. BATTERY indicator: lighted green under normal condition; lighted yellow under insufficient power supply, please change the battery in time. TEC indicator: temperature control indicator of the laser.
- Page 5 Shenzhen Zhiyong Electronics Co., Ltd. Attenuator: the attenuator will connect the USB socket of the probe and SSMB RF female socket of the circuit under test. Attenuator have different models with ratio of 20X or 2X, corresponding with range between ±30V / 3V.The standard configuration is 20X. Users can choose proper attenuator according to the signal under test and set the attenuation parameter on oscilloscope.
- Page 6 Battery charger set (CK-691) (Provide support during test) (Including one charger, two batteries and one cable) Power supply adaptor (CK-605)*2 (5V/1A: for battery charging or receiver power supply) 3.Electric Specification Model OP6031 OP6032 Bandwidth(-3dB) 100MHz 200MHz Rise time ≤3.5ns ≤1.8ns Precision ≤±2%（0~40℃）...
- Page 7 Shenzhen Zhiyong Electronics Co., Ltd. 4.Mechanic Specification Model Parameter Front-end E/O Around 103*46*34mm Transmitter Probe Size Rear-end O/E Around 107*70*26mm Receiver Attenuator Length Around 200mm Cable Length Around 1.4m BNC Output Cable(CK-310) Around 1m Probe Weight Around 350g 5.Environmental Specification Model Parameter Operating Temperature...
- Page 8 Do not pull the input or output cable hard to avoid damage. 9. Warranty Please refer to the warranty card instruction. 10. Packaging list Name OP6031/OP6032 Voltage Probe 20X Attenuator (CK-AT20XA) SSMB male socket to DuPont cable connector (CK-321) SSMB male socket (KDJ-SSMB-50ZJE-3) BNC output cable(CK-310) USB power supply cable（CK-315 AM-BM 1.5m）...
