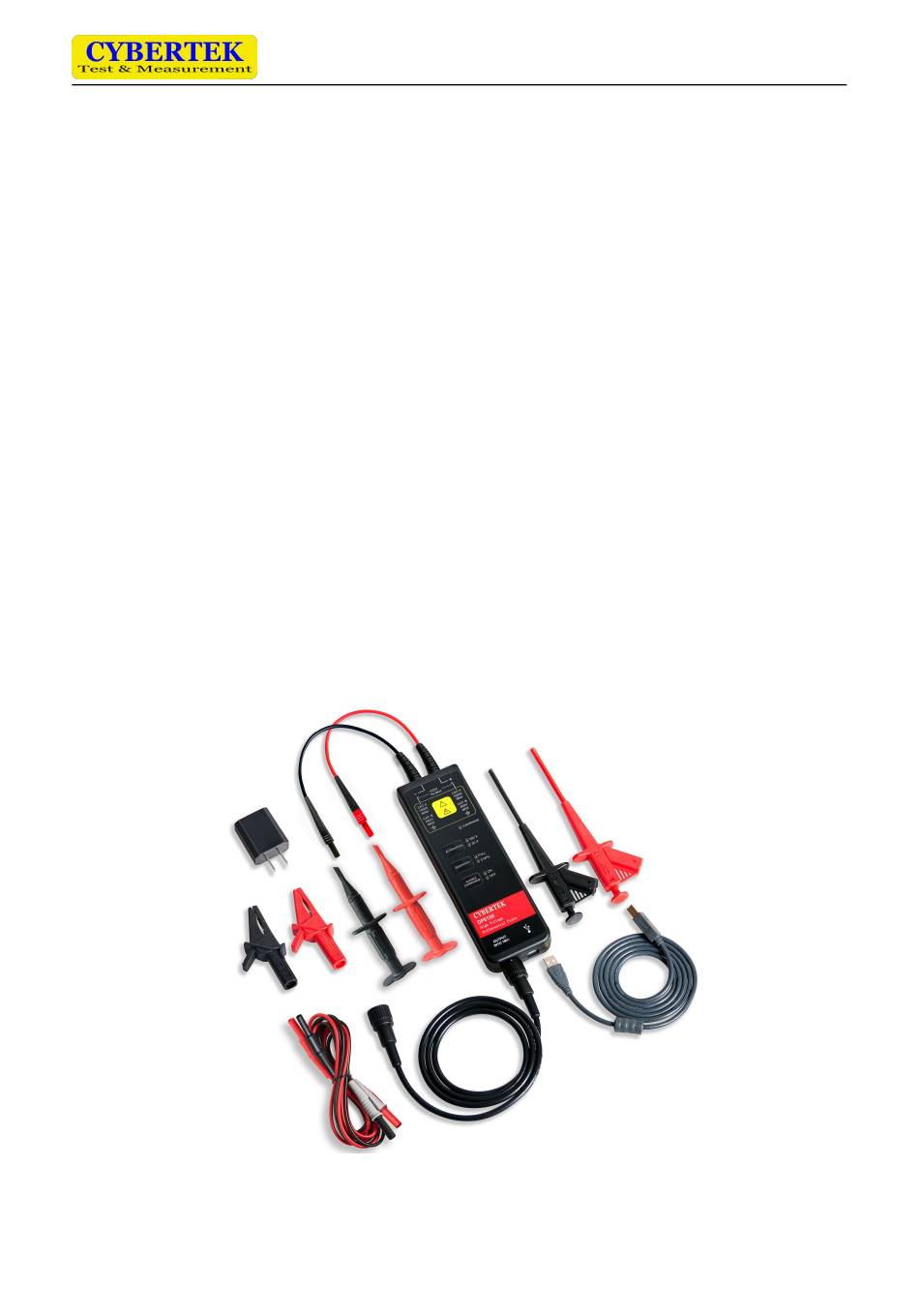

Shenzhen Zhiyong Electronics Co., Ltd.
High Voltage Differential Probes
DP6000 Series
DP6070A 700Vpk/100MHz
DP6150 1500Vpk/ 70MHz
DP6150A 1500Vpk/100MHz
DP6150B 1500Vpk/200MHz
DP6150D 1500Vpk/500MHz
DP6280 2800Vpk/100MHz
DP6700 7000Vpk/ 70MHz
DP6700A 7000Vpk/100MHz
ShenZhen ZhiYong Electronics Co., Ltd
www.cybertek.cn
Advertisement
Related Manuals for Cybertek DP6070A
Summary of Contents for Cybertek DP6070A
- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. High Voltage Differential Probes DP6000 Series DP6070A 700Vpk/100MHz DP6150 1500Vpk/ 70MHz DP6150A 1500Vpk/100MHz DP6150B 1500Vpk/200MHz DP6150D 1500Vpk/500MHz DP6280 2800Vpk/100MHz DP6700 7000Vpk/ 70MHz DP6700A 7000Vpk/100MHz ShenZhen ZhiYong Electronics Co., Ltd www.cybertek.cn...
-
Page 2: Introduction
Please check the probe skin. If there is any breakage, stop using it immediately. Select the product standard adapter power supply. DP6000 Series Brief Description Maximum Input Modal Bandwidth Attenuation Differential Voltage DP6070A 700V 100MHz 10X/100X DP6150 1500V 70MHz 50X/500X DP6150A 1500V... -
Page 3: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd. Contents Introduction………………………………… ………………………………………………………..1 DP6000 Series Brief Description…… … …… ……………………… ……… ……….……………1 Summary……… …………………………………………………………… ………..………..…….3 Application……………… …… ………………………………… ………………………………….3 Products and Accessories………………………… ……… …………… …….……………….…… 4 Main part of probe………………………………………………………………………..….…..4 Accessories………………………………………………………………………………..……..5 Specifications……………………………………………………………………………..…………..7 Machinery specification…………………………………………………………………………..…. 7 Environment Specifications……………………………………………………………………..……8 Operating steps………………………………... -
Page 4: Summary
Shenzhen Zhiyong Electronics Co., Ltd. 1. Summary DP6000 Series High Voltage Differential Probe is designed with floating measurement function, with a maximum bandwidth up to 500MHz that can fulfill the need of most measuring system. DP6000 Series provides a wide measuring range for selection, and its differential measurement voltage ... -
Page 5: Products And Accessories

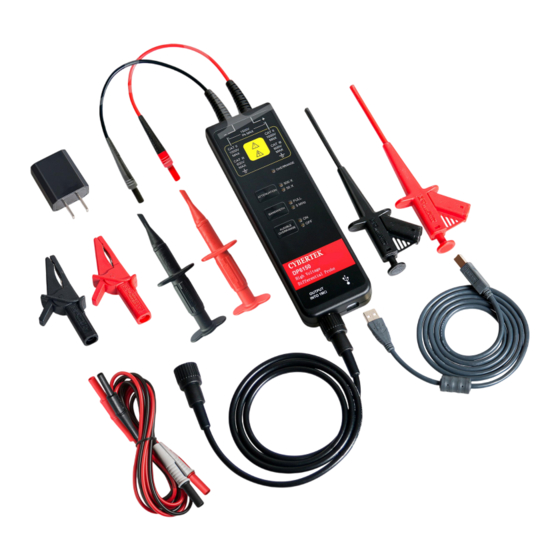

Shenzhen Zhiyong Electronics Co., Ltd. 3. Products and Accessories ■ Main part of probe As DP6150A for example, different voltage, range, bandwidth would be in different product. Detailed instructions Integral input leads: The integral input leads extend 28cm from the probe body. Connect the leads ... -
Page 6: Accessories
Hook Clips (CK-284A one pair) Extender Leads (CK-301 one pair) BNC Output Line(CK-310) USB line (CK-315 AM-BM, 1.5m) Power adapter (CK-605) USB 5V/2A Thorough type 50Ω load(CK-50) Product standard accessories description Modal DP6070A DP6150(A/B) DP6150D DP6280 DP6700(A) CATIII 1000V Alligator Clips(CK-261) CATIV 600V... -
Page 7: Electric Specification
Shenzhen Zhiyong Electronics Co., Ltd. Electric Specification Model DP6070A DP6150(A/B) DP6150D DP6280 DP6700(A) DP6150 70MHz DP6700 70MHz Bandwidth(-3dB） 100MHz DP6150A 100MHz 500MHz 100MHz DP6700A 100MHz DP6150B 200MHz DP6150 ≤5ns DP6700 ≤5ns Rise time ≤3.5ns DP6150A ≤3.5ns ≤700ps ≤3.5ns DP6700A ≤3.5ns DP5150B ≤1.75ns... -
Page 8: Mechanical Specification
Shenzhen Zhiyong Electronics Co., Ltd. Figure 1:DP6070A Differential Mode Voltage VS Frequency Figure 2:DP6150(A/B/D) Differential Mode Voltage VS Frequency Figure 3:DP6280 Differential Mode Voltage VS Frequency Figure 4:DP6700(A) Differential Mode Voltage VS Frequency 5. Mechanical Specification Model Parameters Approx 28cm (17cm for... -
Page 9: Environmental Characteristics
Shenzhen Zhiyong Electronics Co., Ltd. 6. Environmental Characteristics Model Parameters Operating temperature 0℃～50℃ Storage temperature -30℃～70℃ Operating humidity ≤85%RH Storage humidity ≤90%RH Operating altitude 3000m Storage altitude 12000m 7. Operating steps You should estimate the tested voltage amplitude before testing. Please do not use if exceeds the ... -
Page 10: Safety Notices
Shenzhen Zhiyong Electronics Co., Ltd. 9. Safety Notices: Note Please try to wind the input leads when testing, which is better for eliminating noise, to improve the ability of high frequency response. Please view below for the winding method: It is better not to extend input lead when testing;... -
Page 11: Performance Verification
Shenzhen Zhiyong Electronics Co., Ltd. 10. Performance Verification The below operation is for performance verification of the electric specification, requirement for test equipment is shown below: Equipment Minimum Requirements Usages Bandwidth≥100MHZ; Accuracy≦1.5%, e.g. Oscilloscope Displays probe output Tektronix MSO/DSO4000 Test bandwidth; AC Standard signal Amplitude accuracy≤0.75%;... -
Page 12: Installation
Repeat step 4~6, and calculate whether is within the accuracy ranges. Signal source Probe expected Probe practical Model Attenuation Rate output voltage output voltage output voltage 100mV±2mV DP6070A 100X 100mV±2mV 100mV±2mV DP6150(A/B) 500X 100mV±2mV 100X 100mV±2mV DP6150D 1000X 100V 100mV±2mV... -
Page 13: Dc Common Mode Rejection Ratio (Cmrr)
Shenzhen Zhiyong Electronics Co., Ltd. Attenuation Signal source voltage, Expected probe Rising Model Rate frequency setting rise time time 20Vp-p 100MHz ≤3.5ns DP6070A 100X 20Vp-p 100MHz ≤3.5ns 20Vp-p 70MHz ≤5ns DP6150 500X 20Vp-p 70MHz ≤5ns 20Vp-p 100MHz ≤3.5ns DP6150A 500X 20Vp-p 100MHz ≤3.5ns... -
Page 14: Test Records Form
Shenzhen Zhiyong Electronics Co., Ltd. 10.5 Testing Record Form Testing Record Form Product serial NO: Test temperature: Testing date： Test Humidity: Test model: Lower limit Test result Upper limit 98mV 102mV DP6070A 100X 98mV 102mV 98mV 102mV DP6150(A/B) 500X 98mV 102mV 100X 98mV 102mV... -
Page 15: Warranty
Shenzhen Zhiyong Electronics Co., Ltd. 12. Warranty Please refer to the warranty instruction. 13. Packaging Package Items DP6070A DP6150(A/B) DP6150D DP6280 DP6700(A) Voltage probe body 1 unit 1 unit 1 unit 1 unit 1 unit USB 5V/2A Adapter(CK-605) 1 unit... - Page 16 Shenzhen Zhiyong Electronics Co., Ltd. TESTLINK TESTLINK Corporation Addr：(14348) B 709 (XI Tower) , 67 Saebitgongwon-ro, Gwangmyeong-si, Gyeonggi-do, Korea Tel: +82.2.6299.7588 1588-8679 Fax: +82.2.6299.7581 Email: sales@testlink.co.kr URL: http://www.testlink.co.kr © Zhiyong Electronics, 2023 Published in China, Nov. 30th, 2023...
