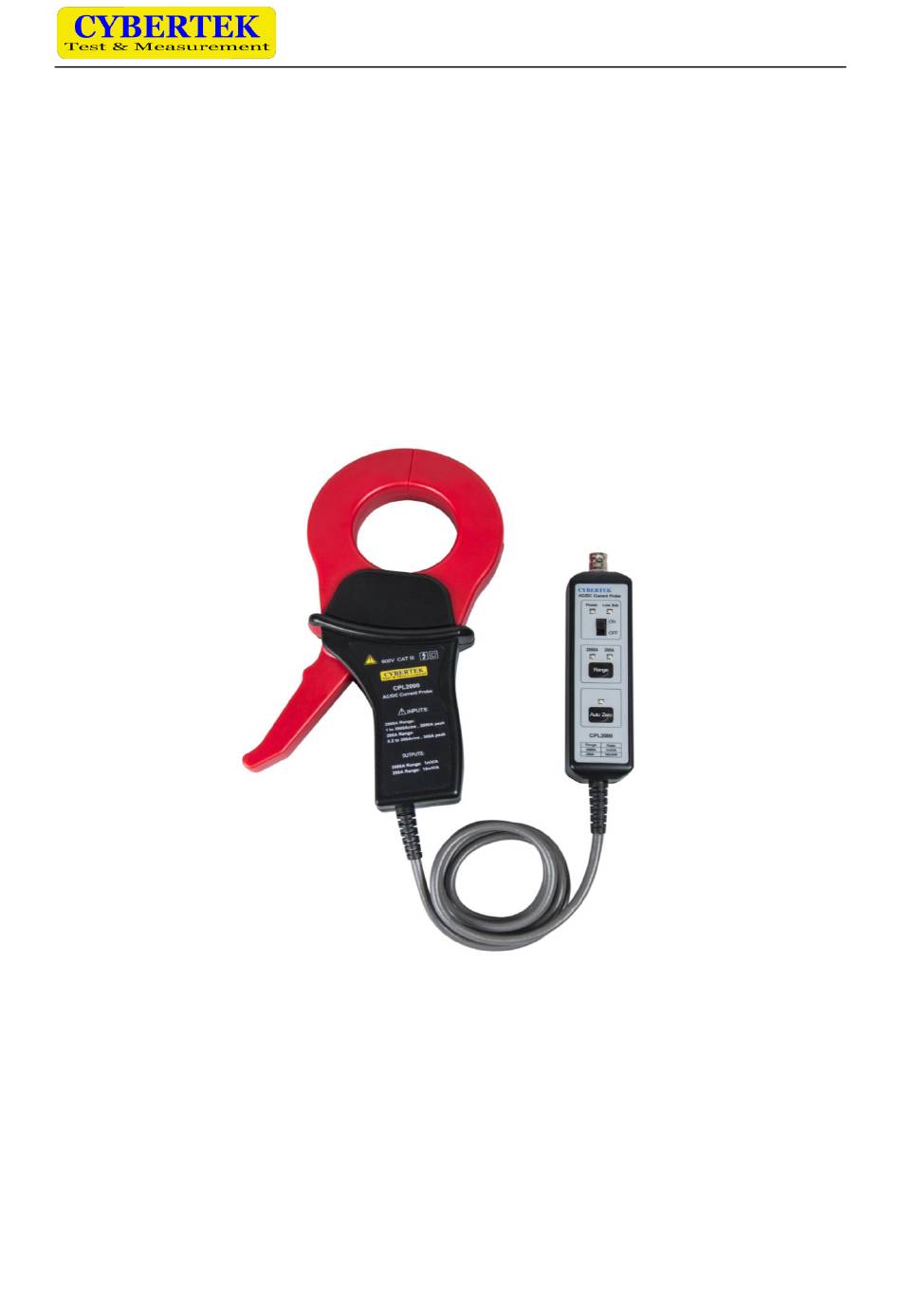

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd AC/DC Low Frequency Current Probe CPL2000 (2000A/10kHz) Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
-
Page 2: Preface
Please use the basic insulation device with proper voltage and pollution range when connecting the test terminals between CPL2000 and devices. Do not input voltage surpassing the safety range if the basic insulation of the test terminal does not meet the requirement. -
Page 3: Cpl2000 Brief Description
Shenzhen Zhiyong Electronics Co., Ltd vibration or strike during operation. CPL2000 is neither waterproof nor dustproof. Please do not use it in dusty or wet environment. The upper and lower touching surface of the sensor head is created by accurate grinding process. -
Page 4: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd Index Preface…………………………………………………………………………………….…….…………1 CPL2000 Brief Description…..………………………………………………….…………..……… …2 Summary…………………………………………………………………………………….……………4 Probe Parts Description……………………………………………………………………………………4 Electronics Specification…………………………………………………………………….………….…5 Operating Method…………………………………………………………………………………………5 Mechanic Specification……………………………………………………………………………………6 Environmental Specification………………………………………………………………………………6 Maintenance…………………………………………………………………………………….…………6 Treatment when irregular occurs …………………………………………………………….……………8 Packing List…………………………………………………………………………………..……………8... -
Page 5: Summary
(200A and 2000A optional), users can choose the proper range according to the current value; with auto zero function, users can make use of CPL2000 easily, and the power and battery low voltage alarm indication light and overload alarm buzzer equipped can notify the users fast. Also, CPL2000 can be powered by battery or external power supply. -
Page 6: Electronics Specification
Shenzhen Zhiyong Electronics Co., Ltd Auto zero indication light: lighted during zero setting. Clamp: the current testing clamp, diameter around 54mm. External power supply port: external DC power supply. Battery Box: 9V alkaline battery within. Please disconnect from the conductor and oscilloscope, turn off the probe when user changes the battery. -
Page 7: Mechanic Specification
Shenzhen Zhiyong Electronics Co., Ltd connect the BNC output port of the probe and input terminal of the oscilloscope using the standard BNC cable. Turn on the voltage switch, the indication light should be lighted green. Press the button to select the proper range according to the value of the current under test. Attention: Different range corresponds to different attenuation ratio ... -
Page 8: Treatment When Irregular Occurs
BNC output cable (CK-310) High class tool kit Instruction manual Warranty card Test report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD Addr： Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 / +86-755-86628000...
