- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. High Voltage Differential Probes DP6000 Series DP6150 1500Vpk/70MHz DP6350 3500Vpk/70MHz DP6700 7000Vpk/70MHz ShenZhen ZhiYong Electronics Co., Ltd www.cybertek.cn...
-
Page 2: Introduction
When BNC lines are connected to the oscilloscope or other devices, ensure the BNC terminal is well grounded. Please check the probe skin. If there is any breakage, stop using it immediately. Select the product standard adapter power supply. DP6000 Series Brief Description Maximum Input Modal Bandwidth Attenuation Differential Voltage DP6150... -
Page 3: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd. Contents Introduction………………………………… ………………………………………………………..1 DP6000 Series Brief Description…… … …… ……………………… ……… ……….…………...1 Summary……… …………………………………………………………… ………..………..…….3 Application……………… …… ………………………………… ………………………………….3 Products and Accessories………………………… ……… …………… …….……………….…… 4 Main part of probe………………………………………………………………………..….…..4 Accessories………………………………………………………………………………..……..5 Specifications……………………………………………………………………………..…………..6 Machinery specification…………………………………………………………………………..…. 7 Environment Specifications……………………………………………………………………..……8... -
Page 4: Summary
FETs in switching power supplies, and can filter out higher frequency noise and interference. DP6000 Series has sound & light alarming function, and users can turn it off manually if needed. DP6000 Series is powered by USB connector, and it contains standard BNC output connector that can ... -
Page 5: Products And Accessories
Shenzhen Zhiyong Electronics Co., Ltd. 3. Products and Accessories ■ Main part of probe As DP6150 for example, different voltage, range, bandwidth would be in different product. Detailed instructions Integral input leads: The integral input leads extend 28cm from the probe body. Connect the leads ... -

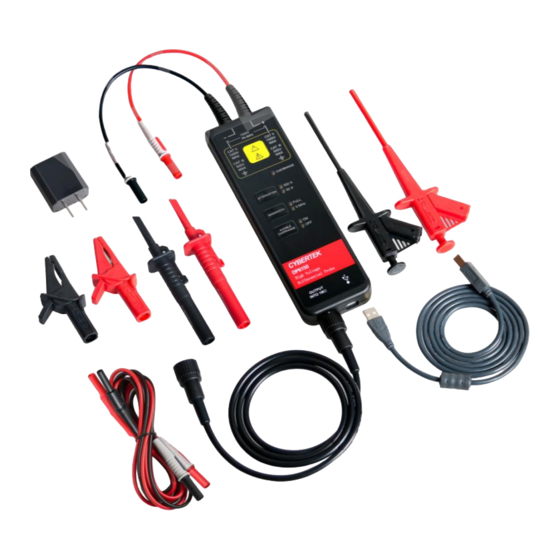

Page 6: Accessories
Shenzhen Zhiyong Electronics Co., Ltd. ■ Accessories Description Alligator Clips (CK-261 red one pair) Alligator Clips (CK-262 one pair) Pincer Clips (CK-281 one pair) Hook Clips (CK-284A one pair) Extender Leads (CK-301 one pair) BNC Output Line(CK-310) USB line (CK-315 AM-BM, 1.5m) Power adapter (CK-605) USB 5V/2A Product standard accessories description Modal... -
Page 7: Specifications
Shenzhen Zhiyong Electronics Co., Ltd. 4. Electric Specification Model DP6150 DP6350 DP6700 Bandwidth(-3dB） 70MHz Rise time ≤5ns Accuracy ±2% Range selection 50X/500X 100X/1000X 100X/1000X (Attenuation rate) Maximum differential ±150V 100X ±350V 100X ±700V voltage(DC + Peak AC) 500X ±1500V 1000X ±3500V 1000X ±7000V... -
Page 8: Machinery Specification
Shenzhen Zhiyong Electronics Co., Ltd. Figure 1:DP6150 Differential Mode Voltage VS Frequency Figure 2:DP6350 Differential Mode Voltage VS Frequency Figure 3:DP6700 Differential Mode Voltage VS Frequency 5. Mechanical Specification Model Parameters Input leads Approx 28cm Extender leads(CK-301) Approx 1m BNC Output Line(CK-310) Approx 1m Alligator clips CK-261 Approx 85*40*17mm... -
Page 9: Environment Specifications
Shenzhen Zhiyong Electronics Co., Ltd. 6. Environmental Characteristics Model Parameters Operating temperature 0℃～50℃ Storage temperature -30℃～70℃ Operating humidity ≤85%RH Storage humidity ≤90%RH Operating altitude 3000m Storage altitude 12000m 7. Operating steps You should estimate the tested voltage amplitude before testing. Please do not use if exceeds the ... -
Page 10: Precautions For Use
Shenzhen Zhiyong Electronics Co., Ltd. 9. Safety Notices: Note Please try to wind the input leads when testing, which is better for eliminating noise, to improve the ability of high frequency response. Please view below for the winding method: It is better not to extend input lead when testing;... -
Page 11: Performance Verification
Shenzhen Zhiyong Electronics Co., Ltd. 10. Performance Verification The below operation is for performance verification of the electric specification, requirement for test equipment is shown below: Equipment Minimum Requirements Usages Bandwidth≥100MHz; Accuracy≦1.5%, e.g. Oscilloscope Displays probe output Tektronix MSO/DSO4000 Test bandwidth; AC Standard signal Amplitude accuracy≤0.75%;... -
Page 12: Installation
Shenzhen Zhiyong Electronics Co., Ltd. 10.1 Setup Connect power adapter to voltage probe, which turns on green light, to ensure accuracy, test the probe index after 20 minutes. Uncover the red black plastic cover of the BNC-male-to-dual binding post. ... -
Page 13: Dc Common Mode Rejection Ratio (Cmrr)
1000X 20Vp-p 70MHz ≤5ns 10.4 DC Common Mode Rejection Ration(CMRR) Set DP6000 series probes at low attenuation ration, respectively ( 50X, 100X). Set 500V DC voltage for signal source, now the voltage output shut up. Connect the two probe inputs to 500V voltage. -
Page 14: Test Records Form
Shenzhen Zhiyong Electronics Co., Ltd. 10.5 Testing Record Form Testing Record Form Product serial NO: Test temperature: Testing date： Test Humidity: Test model: Lower limit Test result Upper limit 98mV 102mV DP6150 500X 98mV 102mV 100X 98mV 102mV DC accuracy DP6350 1000X 98mV... -
Page 15: Packing List
Shenzhen Zhiyong Electronics Co., Ltd. 13. Packaging Package Items DP6150 DP6350 DP6700 Voltage probe body 1 unit 1 unit 1 unit USB 5V/2A Adapter(CK-605) 1 unit 1 unit 1 unit Alligator clips (CK-261) 1 pair 1 pair Alligator clips (CK-262) 1 pair Insulation pincer clips (CK-281) 1 pair... - Page 16 Shenzhen Zhiyong Electronics Co., Ltd. CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe Road, LongGang District, ShenZhen City, China Tel: （86）400 852 0005 （86 755）86628000 Q Q: 400 852 0005 © Zhiyong Electronics, 2024 Email: cybertek@cybertek.cn...
