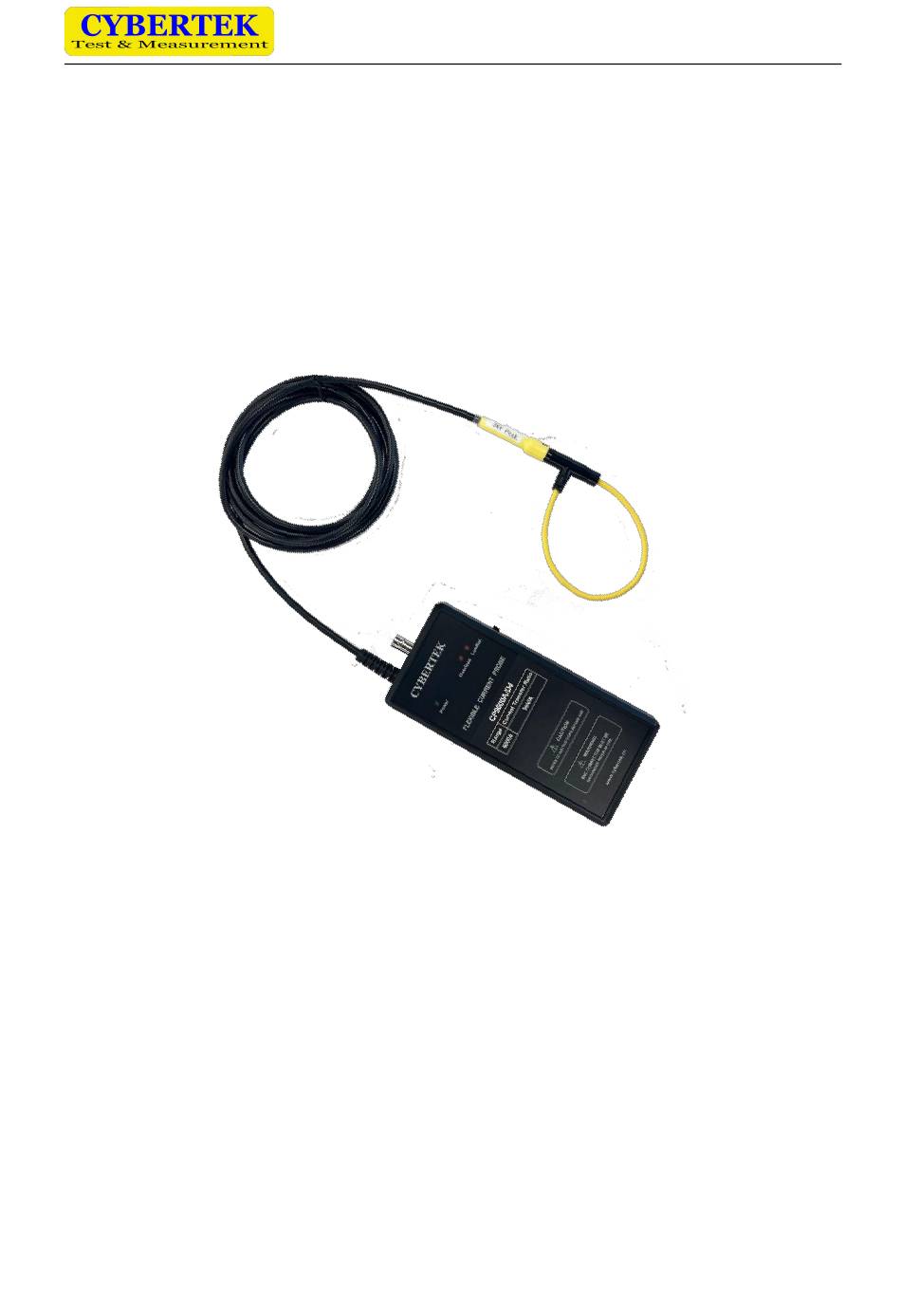

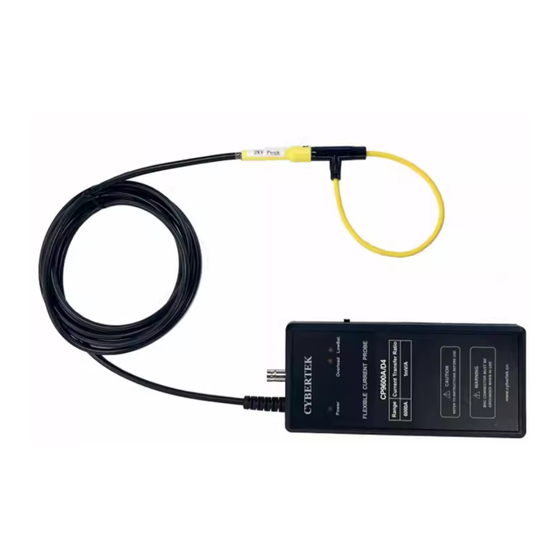

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. Flexible Current Probe CP9000(S/L)A Series Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd. Standard coil size and schematic diagram: Note: coil size can be customized, please contact us if necessary.
-
Page 3: Preface
Shenzhen Zhiyong Electronics Co., Ltd. Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;... -
Page 4: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd. Table of Content Preface…………………………………………………………………………………………………………2 Summary……………………………………………………………………………………………………….4 Application……………………………………………………………………………………………………..4 Electronic Specification …………………………………………………………………………………….…4 Product and Accessories……………………………………………………………………………………..…6 Product instruction……………………………………………………………………………………..…6 Accessories instruction………………………………………………………………….….………..……8 Typical Mechanical Specifications…………………………………………………………….…………….…9 Environment Specifications……………………………………………………………….…………..……9 Measurement Procedure………………………………………………………………………….….…..…..…9 Attentions……………………………………………………………………………………………….…...…10 Care and Maintenance…………………………………………………………………………………….……10 Service Strategy………………………………………………………………………………………………...11 Packing List………………………………………………………………………………………………….…11... -
Page 5: Summary
Shenzhen Zhiyong Electronics Co., Ltd. Summary CP9000(S/L)A series AC flexible current probe is designed specifically for the AC current signal measurement with high bandwidth and high precision (Typical value 2%). CP9000A series can achieve wide current measurement range, with frequency ranging from a few Hz to tens of MHz, current ranging from mA level to several KA level, and conquered many difficulties of current measurement. - Page 6 Shenzhen Zhiyong Electronics Co., Ltd. 3.1 CP9000SA Series Peak Sensitivity Noise max Droop typ. Accuracy Insulation Model bandwidth bandwidth Rise time Current di/dt (mV/A) (mVp-p) (%/ms) typ. voltage (kA/µS) -3dB(Hz) -3dB(MHz) （kA） CP9003SA 0.03 CP9006SA 0.06 CP9012SA 0.12 CP9030SA CP9060SA ≤11.6ns CP9120SA CP9300SA...
-
Page 7: Product And Accessories
Shenzhen Zhiyong Electronics Co., Ltd. 3.4 CP9000(S/L)A Series Max. output voltage ±6Vpk Terminal load ≥100kΩ Power supply USB 5V/2A standard adaptor or four AA cells (Optional accessories, non Chinese Mainland customers please purchase by themselves.) Safety standard EN61010-1:2010 EMC standard EN61326-1:2013;EN61000-3-2:2014;EN61000-3-3:2013... - Page 8 Shenzhen Zhiyong Electronics Co., Ltd. 4.1.2 CP9000A Series 1. Signal output connector: Standard BNC connector that can adapt to oscilloscope of any brand with standard BNC cable. 2. Power supply indicator: Lighted green when the device is powered up. 3. Overload indicator: Lighted red and the buzzer alarms when the current under test surpass the range. 4.
-
Page 9: Accessories Instruction
Shenzhen Zhiyong Electronics Co., Ltd. 1. Signal output connector: Standard BNC connector that can adapt to oscilloscope of any brand with standard BNC cable. 2. Power supply indicator: Lighted green when the device is powered up. 3. Overload indicator: Lighted red and the buzzer alarms when the current under test surpass the range. 4. -
Page 10: Typical Mechanical Specifications
Shenzhen Zhiyong Electronics Co., Ltd. 4.2 Accessories Coaxial output cable (CK-310: 1m) USB cable (AM-BM, 1.5m) Power supply adaptor AA cells (USB output: DC5V/2000mA) (alkaline dry battery, 1.5V*4. Optional accessories, non Chinese Mainland customers please purchase by themselves. Battery life around 12 hours) Typical Mechanical Specifications Type CP9000SA... -
Page 11: Measurement Procedure
Shenzhen Zhiyong Electronics Co., Ltd. 7. Measurement Procedure 1. When the probe is connecting to the oscilloscope or other measuring devices, these devices need to have reference ground and input impedance set up to 1MΩ(or≥100kΩ); Users will need to set up the oscilloscope attenuation ratio according to the probe sensitivity index. -
Page 12: Service Strategy
Alkali batteries(AA 1.5V) BNC output cable(CK-310) Instruction Manual Warranty Card Test Report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD Addr： Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 / +86-755-86628000...
