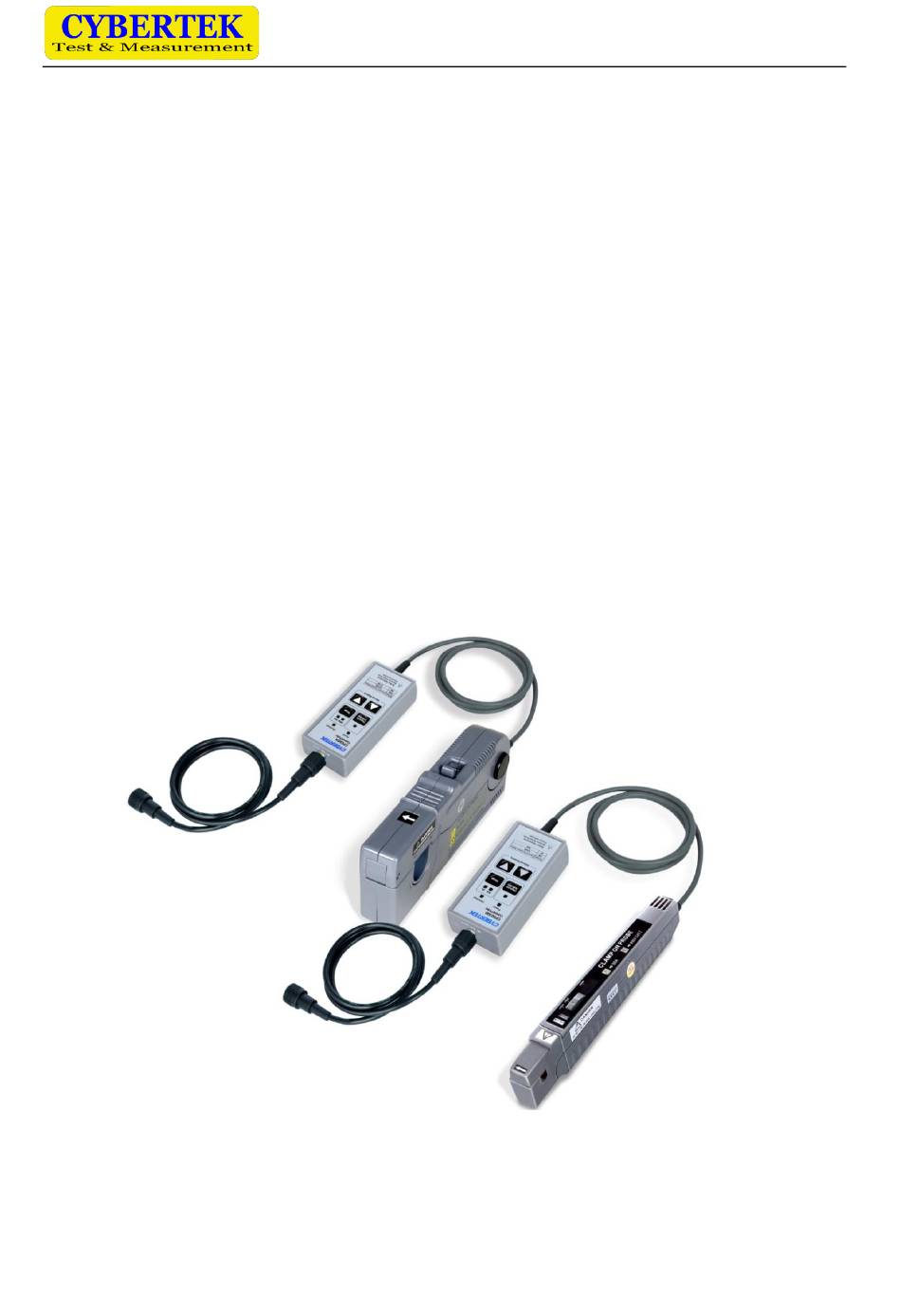

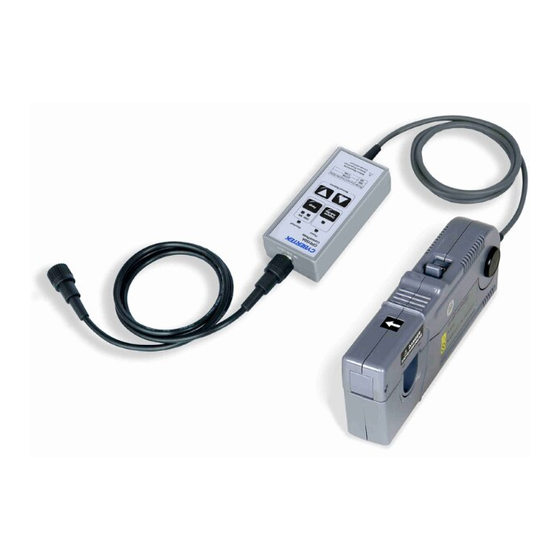

Page 1 Shenzhen Zhiyong Electronics Co., Ltd DC/AC Current Probes CP8000 Series CP8030B 30A/DC～ 50 MHz CP8030H 30A/DC～100 MHz CP8050A 50A/DC～ 50 MHz CP8150A 150A/DC～12 MHz CP8300A 300A/DC～ 6 MHz CP8500A 500A/DC～ 5 MHz Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
Page 2: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd Safety Notices A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data.
Page 3: Features And Applications
Shenzhen Zhiyong Electronics Co., Ltd 1. Features and Applications The CP8000 series current probes are wide band width DC/AC active current probes, featuring flat bandwidth, low noise and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance BNC input.
Page 4: Description Of Products
Shenzhen Zhiyong Electronics Co., Ltd Applications  Switching and linear power design  LED lighting design  New Energy Resources  Frequency Conversion Household Appliances  Experiment of Electronic Engineering  Semiconductor Devices design  Inverters/ transformer design  Electronic ballast design ...
Page 5 Shenzhen Zhiyong Electronics Co., Ltd 2） CP8150A CP8300A CP8500A  Sensor Head This clamps the conductor being measured, and carries out the actual current measurement. It is a precision assembly including a molded component, a ferrite core, and a Hall effect element. It maybe damaged if subjected to sudden changes in ambient temperature, or mechanical strain or shock.
Page 6 Shenzhen Zhiyong Electronics Co., Ltd  Degaussing and Zero Setting Indicator This green LED indicates the probe is degaussing and auto Zero Setting, and measurement is unavailable.  Range Indicator LED The green LED indicates the selected range.  Degaussing and Zero Setting When the key is pressed, the probe will demagnetizes the core and set the output to zero voltage .If degaussing and Zero Setting succeeds, the buzzer will make two short beeps.
Page 7: Making Measurements
Before using the probe, check that the system is safe and that the preparations described in Safe Probing.  Have a visual inspection of the current probe of high frequency CP8000 Series probes, power supply, cable and oscilloscope.  The output of the current probe is terminated internally. Use a high impedance input to the measuring instrument.
Page 8: Safe Probing
Shenzhen Zhiyong Electronics Co., Ltd  Measurement Press the opening lever to open the sensor head. Align the sensor so that the probe’s current direction indication corresponds to the direction of current flow through the conductor to be measured. Also, align the clamp so that the conductor is in the center of the sensor aperture.
Page 9 Before using the device the first time, verify that it operates normally to ensure that the no damage occurred during storage or shipping. If you find any damage, contact your dealer or CYBERTEK representative.  This device is not designed to be entirely water- or dust- proof. To avoid damage, do not use it in a wet or dusty environment.
Page 10 Shenzhen Zhiyong Electronics Co., Ltd  Even if the input current does not exceed the rated continuous maximum, continuous input for an extended period of time may result in activation of the safety circuit to prevent damage resulting from heating of the sensor. ...
Page 11: Accessories Description
Shenzhen Zhiyong Electronics Co., Ltd  Accurate measurement may be impossible in locations subject to strong external magnetic fields, such as transformers and high-current conductors, or in locations subject to strong external electric fields, such as radio transmission equipment.  At high frequencies, common mode noise may affect measurements taken on the high voltage side of circuits.
Page 12: Specification
Shenzhen Zhiyong Electronics Co., Ltd 6. Specification Electrical characteristics CP8030B/ Model CP8050A CP8150A CP8300A CP8500A CP8030H DC-50MHz CP8030B Bandwidth (Figure 1.a) DC-50MHz DC-12MHz DC-6MHz DC-5MHz (-3dB) DC-100MHz (Figure 4) (Figure7) (Figure10) (Figure13) CP8030H (Figure 1.b) ≤7ns CP8030B ≤7ns ≤29ns ≤58ns ≤70ns Rise time ≤3.5ns...
Page 13 Shenzhen Zhiyong Electronics Co., Ltd Power supply DC 12V/1A（Standard Adaptor） Voltage of 300V CATI 600V CATII 300V CATIII insulated wire Safety EN61010-1: 2010 compliance EMC standard EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013 Fig 1 .a CP8030B Amp- Frequency curve Fig 1 .b CP8030H Amp- Frequency curve Fig 2.a CP8030B Fig 2.b CP8030H Continuous maximum input measurement...
Page 14 Shenzhen Zhiyong Electronics Co., Ltd Fig. 3.a CP8030B Fig. 3.b CP8030H Input impedance VS Frequency Input impedance VS Frequency Fig 4 CP8050A Amplitude-Frequency Curve Fig 5 CP8050A Continuous maximum input rating (Frequency derating) Fig 6 CP8050A Input Impedance-frequency curve Figure 7 CP8150A Amplitude-Frequency Curve...
Page 15 Shenzhen Zhiyong Electronics Co., Ltd Fig 8 CP8150A Continuous maximum input measurement Fig 9 CP8150A Input Impedance-Frequency curve Fig 10 CP8300A Amplitude-frequency Curve Fig 11 CP8300A Continuous maximum input measurement Fig 12 CP8300A Input Impedance-Frequency Curve Fig 13 CP8500A Amplitude-frequency Curve...
Page 16: Packing List
Shenzhen Zhiyong Electronics Co., Ltd Fig 14 CP8500A Maximum continuous input measurement Fig 15 CP8500A Input Impedance-Frequency Curve Mechanical characteristics Model CP8030B/H CP8050A CP8150A CP8300A CP8500A Measurement conductor 20mm diameter max. 1.5m Cable length 100cm Cable length(CK-310) Adapter dimensions(CK-612) 72*62*31mm Wire length: 1.5m Clamp dimensions（L*W*H）...
Page 17 Shenzhen Zhiyong Electronics Co., Ltd 7. Operating Method Note  The output interface of this machine is set inside. When using the oscilloscope, please select high input resistance (1MΩ ). If the input resistance is 50Ω , the data will be incorrect ...
Page 18 At the Lock State, please do not press the entire part as shown below. 7.1Preparation before testing  Prepare the High Frequency Current Probe CP8000 series, adapter and oscilloscope  Power up the CP8000 probe and the green LED power indicator will be lighted.
Page 19 9.2 Can CP8000 series product measure small current? A: Yes. For now, the CP8000 series current probe has two optional ranges, and one is for small current. The current resolution of the CP8030B/CP8030H is 1mA. When measuring small current, please accurately zero set and degaussing the probe, and do not change the position of the probe hand grip.
Page 20 Probe DC-12V/1.2A adapter BNC connecting line Tool bag Instruction manual Guarantee card Test report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO.,LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000 Q Q:...
