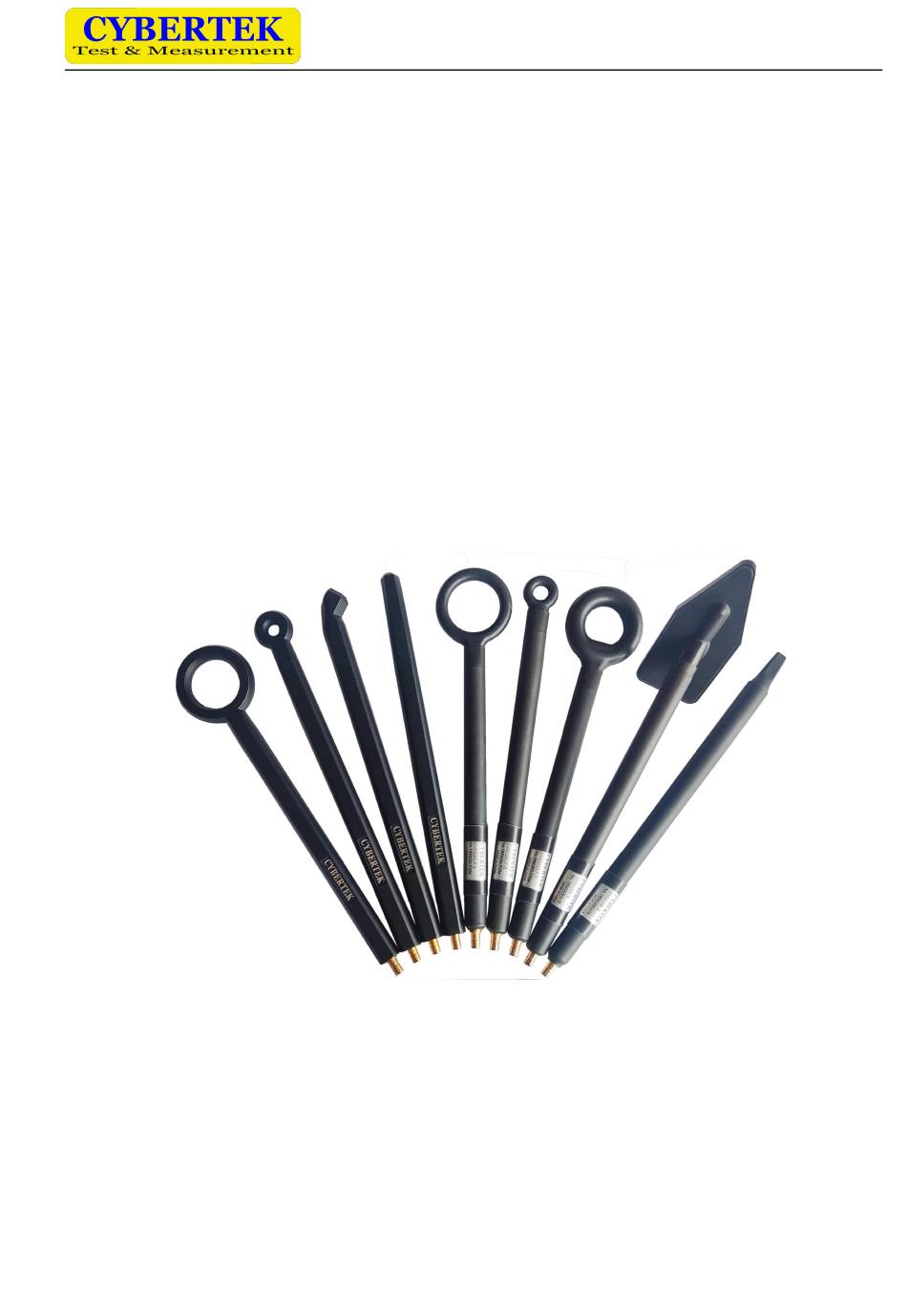

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd Near Field Probe Set EM5030 EM5030LF EM5030E Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...

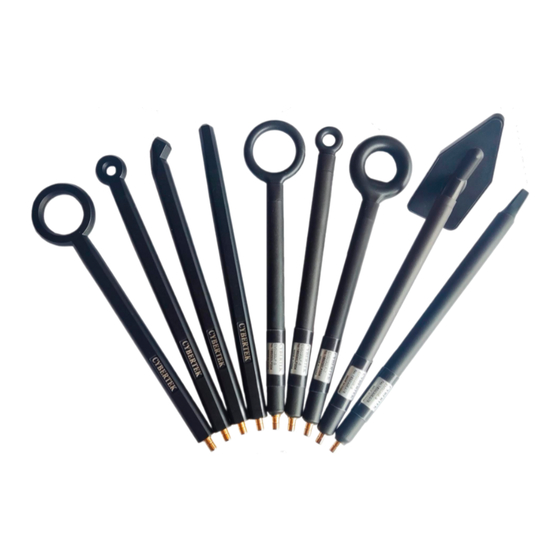

- Page 2 EM5030/EM5030LF series probe set contains 7 probes specially designed for testing magnetic field. These probes are used to locating the interference source in EMI pre-compliance debugging and can effectively shield the interference from electric field. EM5030’s frequency range is between 30MHz~3GHz, and it has 4 types of probe head shapes.EM5030LF’s frequency range is 9kHz~50MHz, with 3 types of probe head shapes.
- Page 3 H probe mainly used to detect the emission leakage of a wire. Frequency range:30MHz 2GHz Resolution : 5mm EM5030－3 H probe can be used to detect the vertical H field. Frequency range:30MHz 3GHz Resolution : 2mm EM5030－4...
- Page 4 Frequency range: 30MHz to 3GHz EM5030E-9 3. Application Tracking the EMI radio interference sources Tracking the EMI conduct interference sources H field detection Application Diagram: Products Description Probes www.cybertek.cn...
- Page 5 Accessories Standard Output Cable: 1m Standard Adapter: SMA female to N male 5. Packing List Packing List EM5030 EM5030LF EM5030E —— —— H probe EM5030-1 —— —— H probe EM5030-2 —— —— H probe EM5030-3 —— —— H probe EM5030-4 ——...
- Page 6 Shenzhen Zhiyong Electronics Co., Ltd Pre-amplifier EM5020A (20dB, 9kHz-3GHz) EM5020B (30dB, 9kHz-3GHz) Shenzhen Zhiyong Electronic Co., Ltd www.cybertek.cn...
- Page 7 Shenzhen Zhiyong Electronics Co., LTd 1. Summary EM5020A/B pre-amplifier can be used with EM5030 near field probe to amplify the small signal from probe. The frequency range of EM5020A/B is 9kHz - 3GHz with a fixed gain of 20dB (EM5020A) / 30dB (EM5020B). It can greatly improve the sensitivity of system testing.
- Page 8 EM5020A is 13dBm, EM5020A is 15dBm. I t may be damaged if the input level exceed the Max Input power. Before connecting the device to EM5030, please make sure there is no strong electromagnetic field around. 6. Packing list...
