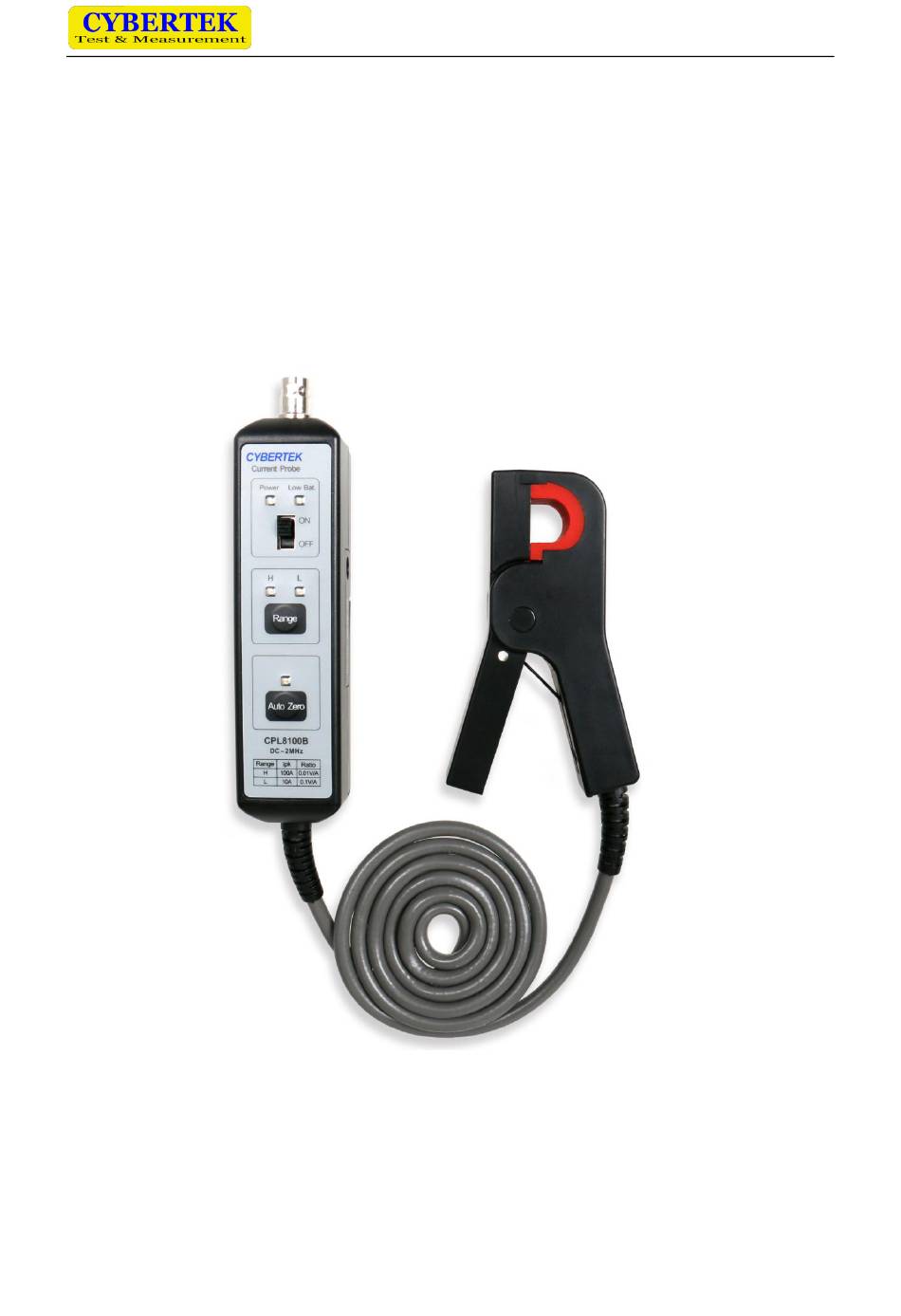

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. AC/DC Current Probe CPL8100A (100A/600kHz) CPL8100B (100A / 2MHz) Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd. Preface First of all, thank you for purchasing our products, the product specification is about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and used correctly. Manual annotation will use the following symbols to distinguish. This symbol means it has a harm to the machine and human body, you must refer to manual operation.

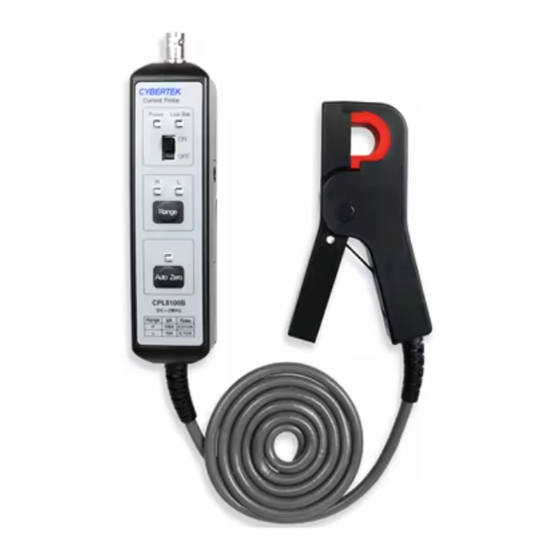

- Page 3 When the battery voltage is lower than 6.5V, the probe will indicate a low voltage alert, please change the battery . You can use a 9V alkaline battery for longer time. CPL8100A/B Brief Summary Current Max current Max RMS...
- Page 4 Shenzhen Zhiyong Electronics Co., Ltd. Catalog Preface…………………………………………… ……………………………………………1 CPL8100A/B Brief Summary……………………………………………………………….…2 Summary ……………………………………………………………………………….……...4 Introduction about probe and accessories……………………………………………………...4 Electronic Characteristics……………………………………………………………………...6 Operating Method…………………………………………………………...…………………8 Mechanic Characteristics………………………………………………………………….…...9 Environment Characteristics…………………………………………………………………...9 Maintenance……………………………………………………………………………………9 Treatment if anything wrong……………………………………………………………….…10 Packing List……………………………………………………………...………………….. 10...
- Page 5 CPL8100A/B is a kind of current probe that can measure both DC and AC current up to 100A (70.7Arms). The band width of CPL8100A is 600 kHz (-3dB), and the band width of CPL8100B is 2MHz (-3dB).CPL8100 series provide two range option of 10A and 100A, the users may choose the correct range according to the current value.
- Page 6 Shenzhen Zhiyong Electronics Co., Ltd. Power Switch: Power indicator: When the power switch is on, the indicator is lighted green. Battery Low Voltage Indicator: when the voltage of the battery is lower than 6.5V, the power indicator will lighted red, reminding the users to change battery. ...
-
Page 7: Electronic Characteristics
0.01V/A 500mA~40A Peak ： 4%± 50mA；40A~100A Peak ： Typical DC precision 3%± 50mA ± 15% Maximum DC-600kHz Refer to the typical Amplitude frequency CPL8100A characteristic (Figure 1) Band-width (-3dB) DC-2MHz Refer to the typical Amplitude frequency CPL8100B characteristic (Figure 2) - Page 8 AC peak value AC peak to peak value 1200 70.7 7.07 RMS CAT III RMS CAT II 70.7 7.07 70.7 7.07 RMS CAT I Figure 1 CPL8100A Typical Gain VS Frequency curve Figure 2 CPL8100B Typical Gain VS Frequency curve...
- Page 9 Shenzhen Zhiyong Electronics Co., Ltd. Figure 3 Max current VS Frequency curve Figure 4 Typical DC linearity (0.01V/A level) 4. Operating instruction Set the coupling mode of the oscilloscope to DC and the input impedance to 1MΩ; To make it easy to read, users can set the display unit of the oscilloscope from voltage to current display.
-
Page 10: Environment Characteristics
Shenzhen Zhiyong Electronics Co., Ltd. According to the value of the current under test, choose the correct range by pressing button. Attention: Different range correspond to different attenuation ratio of the oscilloscope. Press the Auto Zero button . The buzzer will beep for twice, or it will have a long and continuous beep meaning the failure of Auto Zero .The external magnetic field can have a little influence to the DC zero, so do not move the device after Auto Zero. -
Page 11: Troubleshoot
Shenzhen Zhiyong Electronics Co., Ltd. Clamp: Please keep the clamp clean. After long time use, please use soft cloth together with alcohol to erase the dirt. Please keep the clamp away from damp environment, not to mention direction contact with water. ... - Page 12 Shenzhen Zhiyong Electronics Co., Ltd. CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000 Q Q: 400 852 0005 Fax: +86-755-86620008 © Zhiyong Electronics, 2016 Email: cybertek@cybertek.cn...
