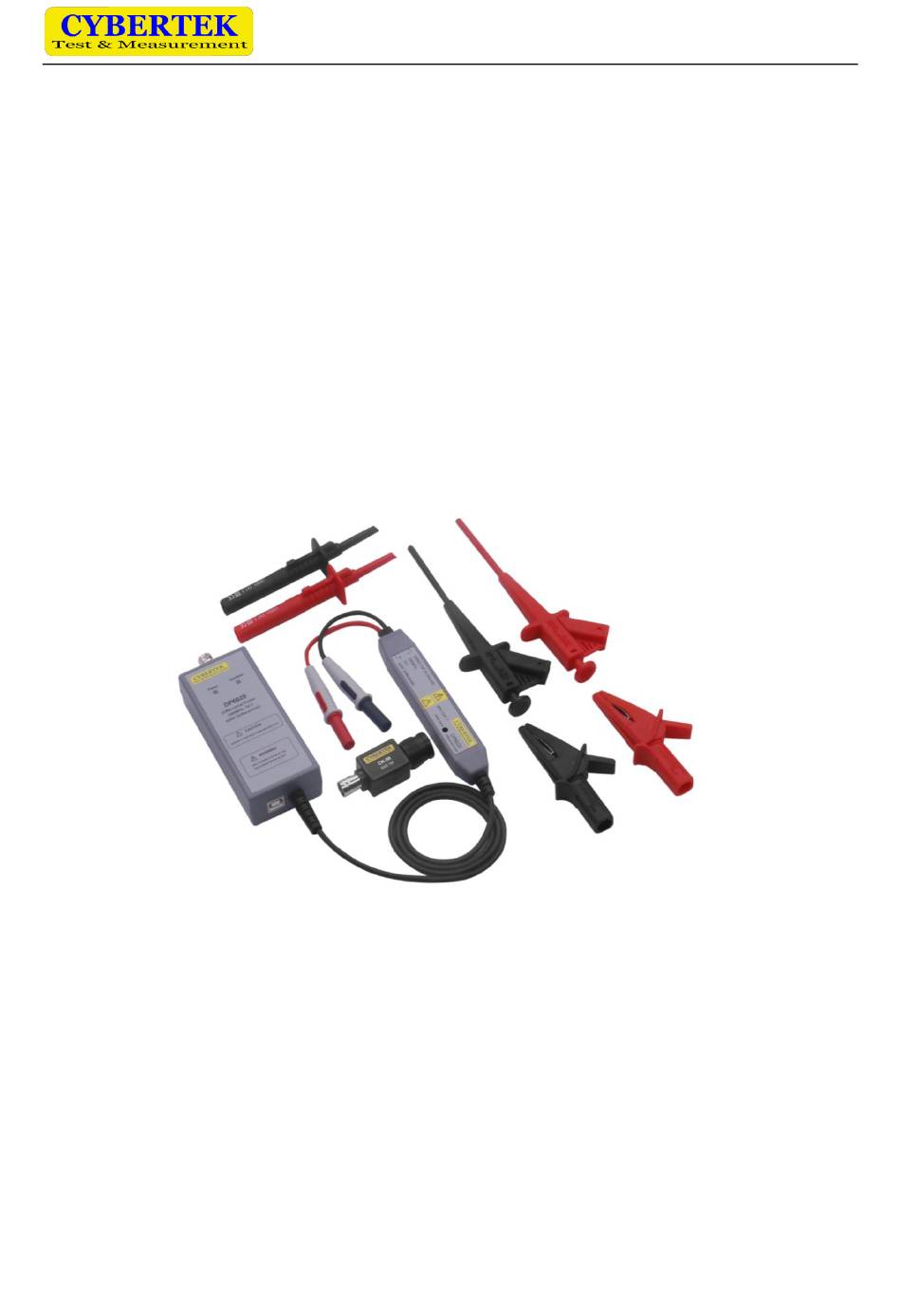

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd Low Voltage Differential Probe DP6020 （20V/ 200MHz） Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Check the external surface of the probe before testing. If there’s any damage upon the probe, please stop the usage. Power the probe with the standard adapter. DP6020 Brief Description Maximum input Type Bandwidth Attenuation ratio differential voltage...
- Page 3 Shenzhen Zhiyong Electronics Co., Ltd Contents Preface………………………………… ……………………………………………………………..1 DP6020 Series Brief Description…… … …… ……………………… ……… ……….……………1 Summary……… …………………………………………………………… ………..………..…….3 Application……………… …… ………………………………… ……………………….………….3 Products and Accessories………………………… ……… …………… …….……………….…… 3 Main Part of Probe………………………………………………………………………..….…..3 Accessories………………………………………………………………………………...……..4 Electrical Specifications…………………………………………………………………..……….…..5 Machinery Specification…………………………………………………………………………..…. 6 Environment Specifications……………………………………………………………………...……6...
- Page 4 ± 20V(DC+Pk), maximum bandwidth up to 200MHz, with 10:1 attenuation setting, can largely decrease the circuit load. With the overload alarm function, the DP6020 can adapt with any oscilloscope with 50Ω BNC input, and can be powered by the USB port on oscilloscope or other computers. Widely used in many applications, DP6020 can provide excellent general differential signal testing for high speed power measurement, vehicle bus testing and digital system design.

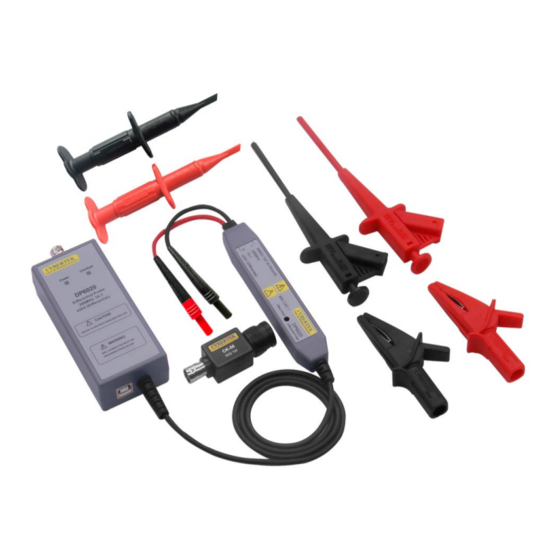

- Page 5 Shenzhen Zhiyong Electronics Co., Ltd ■ Accessories Thorough type 50Ω load(CK-50) Alligator Clips (CK-261 red one pair) Piston Clips (CK-281 red one pair) Test Hook (CK-284 red one pair) Coaxial Output Cable (CK-310) USB Cable（CK-315 AM-BM，1.5m） Power Supply Adaptor (CK-605) USB 5V/1A Power Accessories Instruction Alligator clips(CK-261) CATIII 1000V CATIV 600V...
- Page 6 Shenzhen Zhiyong Electronics Co., Ltd 4.Electronics Specification Bandwidth(-3dB) 200MHz(see Fig 1) ≤1.75ns Rise time Accuracy ± 2% Attenuation ratio 10:1 (DC + Peak AC) ± 20V Maximum differential voltage Common mode voltage ± 60V Maximum rated input voltage (to earth) ±...
- Page 7 Shenzhen Zhiyong Electronics Co., Ltd 5. Machinery Specification Type Parameter Differential input cable 15cm BNC output cable (CK-310) Alligator clips (CK-261) 85*40*17mm Piston clips (CK-281) 152*50*13mm Test hook (CK-284) 121*23*23mm Front 116*22*15mm Probe dimension Back 124*49*27mm Probe weight 172g 6. Environmental Characteristics Type Parameter Pollution level...
- Page 8 USB connecting cable (AM-BM, 1.5m) High class tool box Instruction manual Warranty card Test report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005...
