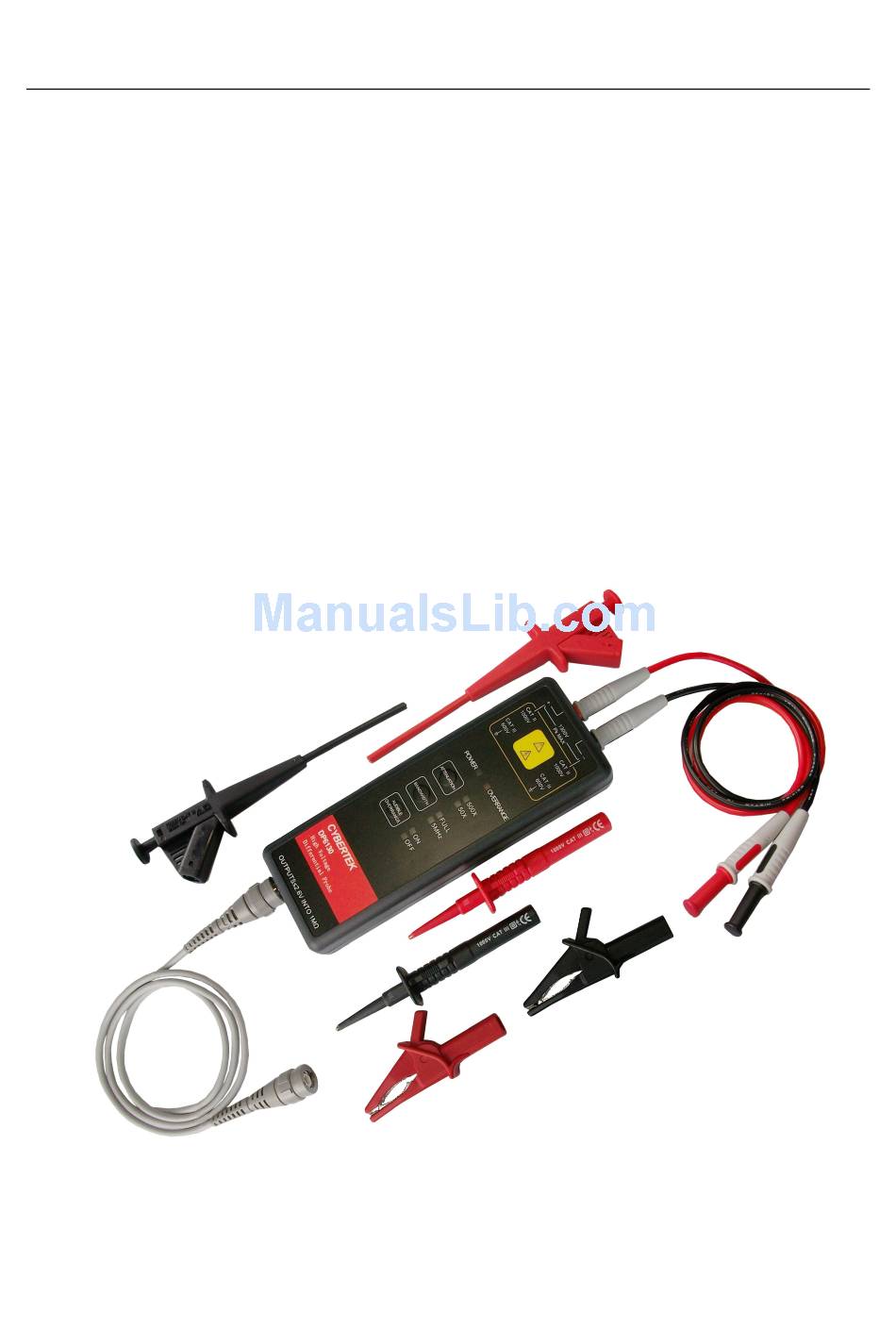

- Page 1 CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd DP6000 Series High Voltage Differential Probes Instruction Manual DP6065 650Vpk/50MHz DP6130 1300Vpk/50MHz DP6130A 1300Vpk/100MHz DP6560 5600Vpk/50MHz ShenZhen ZhiYong Electronic Co.,Ltd...
-
Page 2: Safety Notices
3 Do not operate in wet/damp conditions. 4 Do not operate in an explosive atmosphere. 5 Keep product surfaces clean and dry. DP6000 Series Brief Description Name Maximum Input Differential Voltage Bandwidth Attenuation DP6065 650V 50MHz 10X/100X DP6130 1300V 50MHz 50X/500X... -
Page 3: Table Of Contents
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd Table of Contents Safety Notices………………………………………. ……….….……….…2 DP6000 Series Brief Description………………………………………..…2 Summary……………………………………………… …………………….4 Application……………………………………… …………………………...4 Products and Accessories…………………… ………………..…….…… 5 Product Standard Accessories…………… ………………… …… …… 10 Warranted Specifications…………… ………… ………… …………..… 11 Typical Mechanical Specifications…… ………… … …… …………..…12 Environment Specifications……………... -
Page 4: Summary
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd Summary DP6000 Series High Voltage Differential Probes for measurement of high-voltage differential signal, to meet the demand for floating measurements。This series has a very high bandwidth to meet the needs of the majority of the test system；This series has a rich range。Differential measurement voltage range can meet most of the requirements of the test circuit；Electronic touch buttons, making longer life ;With a 5MHz... -
Page 5: Products And Accessories
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd Products and Accessories ■ Products Description 1. DP6065... - Page 6 CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd 2. DP6130...
- Page 7 CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd 3. DP6130A...
- Page 8 CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd 4. DP6560 1)Overrange Indicator The overrange indicator lights red if the voltage of the input signal exceeds the linear range of the range setting. When this happens, the signal on the probe output...
- Page 9 CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd 2)Attenuation Button and Indicators Press the button to select between the voltage range (attenuation) settings of the probe. The range is indicated by two LEDs on the probe 。The Overrage LED lights if the applied voltage exceeds the selected range.
-
Page 10: Product Standard Accessories
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd Input Leads (CK-368 1m) Coaxial Output Line(CK-310 Coaxial Output Line (CK-320 Adapter(CK-612 12V/1.2A) Product Standard Accessories Name DP6065 DP6130 DP6130A DP6560 CATIII 1000V CATIII 1000V CATIII 1000V Alligator Clips (CK-261) CATIV 600V CATIV 600V CATIV 600V... -
Page 11: Warranted Specifications
Coaxial Output Line Double-ended BNC Connectors 2m （non-standard (CK-320) accessories， purchased separately） Adapter (CK-612) DC12V/1.2A Warranted Specifications Name DP6065 DP6130 DP6130A DP6560 Bandwidth (-3dB) DC to 50MHz DC to 50MHz DC to 100MHz DC to 50MHz Rise time ≤7ns... -
Page 12: Typical Mechanical Specifications
100X ≥700V 500X ≥1400V 500X ≥1400V 1000X ≥6000V Output termination 1MΩ Rated power input DC12V/1.2A Typical Mechanical Specifications NAME DP6065 DP6130 DP6130A DP6560 CK-326 Approximately 26cm Input Leads CK-368 Approximately 68cm CK-310 Approximately 1m Output Leads CK-320 Approximately 2m... -
Page 13: Operating The Probe Safely
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd Operating Altitude 3000m Storage Altitude 12000m Operating the Probe Safely 1 Connect the AC adapter to the proper line voltage.Connect t the AC adapter to the probe. 2 Connect the output of the probe to the BNC input of the oscilloscope or other measurement instrument. -
Page 14: Care And Maintenance
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd added inductance of he leads, voltage measurements at frequencies above approximately 10 MHz may not be as precise. The following figure shows the effect on HF transient response with (left waveform) and without (right waveform). The extension leads do not affect the performance of the probe when bandwidth is set to 5 MHz. - Page 15 CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd 1 Write the following information on a tag and attach it to the current probe. • Name and address of the owner • Current probe model number • Description of service required or failure indications 2 Retain all accessories.
-
Page 16: Packing List
CYBERTEK ShenZhen ZhiYong Electronic Co.,Ltd Packing List Packing List Name DP6065 DP6130 DP6130A DP6560 Voltage probe body DC12V/1.2A(CK-612) Alligator Clips (CK-261) Alligator Clips (CK-262) Pincer Clips (CK-281) Hook Clips (CK-284) Input Leads(CK-326) Input Leads(CK-368) Output Leads(CK-310) Tool bag Instruction manual...
