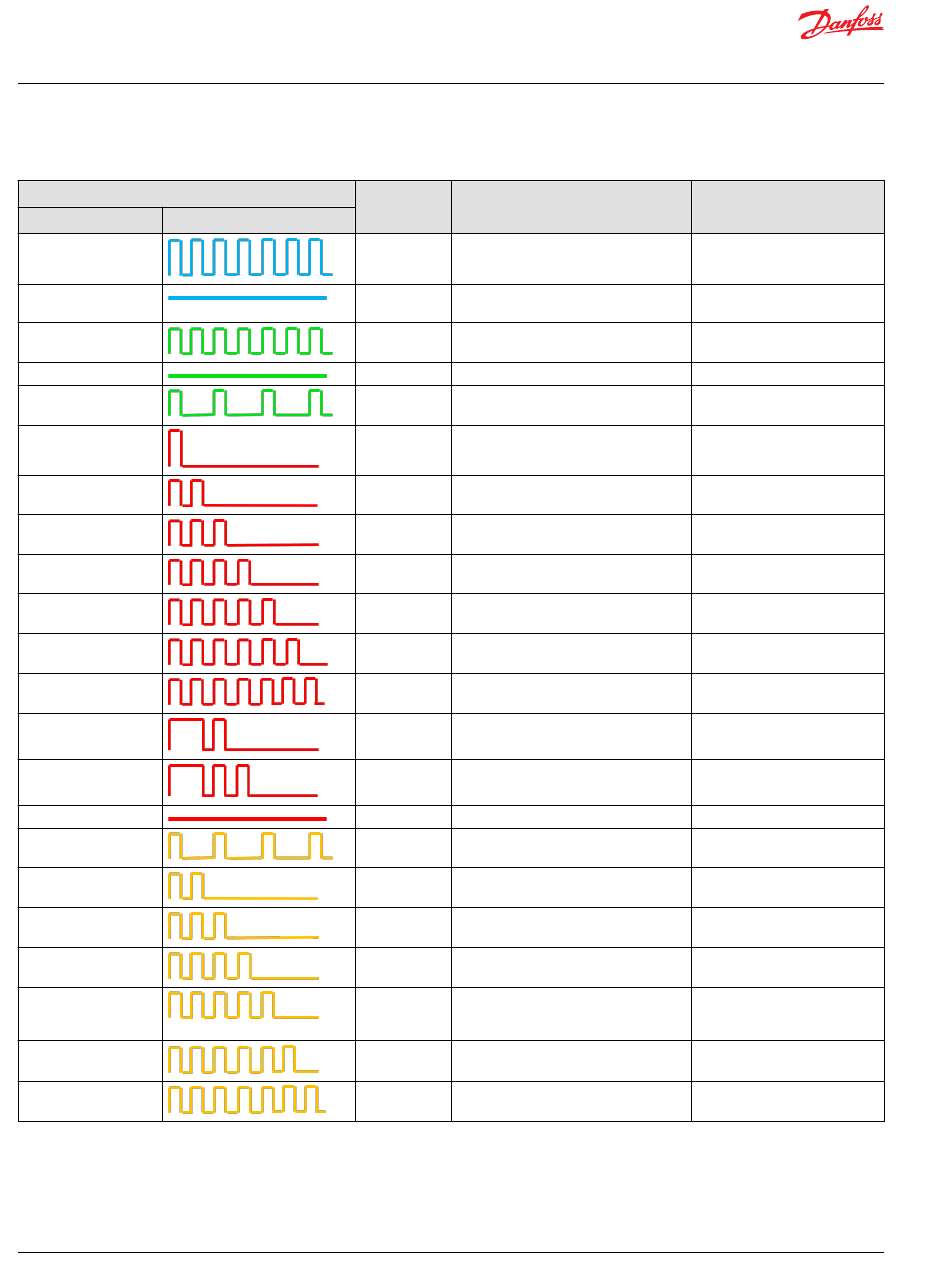

Troubleshooting 2.4GHz
Status LED (on all Transmitters)
Color and frequency Pulse frequency
Blue | fast pulses
Blue | continuous
Green | fast pulses
Green | continuous
Green | slow pulses
Red | slow pulses
Red | double pulses
Red | 3 pulses
Red | 4 pulses
Red | 5 pulses
Red | 6 pulses
Red | 7 pulses
Red | Long + Short
pulse
Red | 1 Long + 2 short
pulses
Red | continuous
Orange | slow pulses
Orange | double pulses
Orange | 3 pulses
Orange | 4 pulses
Orange | 5 pulses
Orange | 6 pulses
Orange | 7 pulses
©
12 | Danfoss | February 2025
Display Description
Message
Starting the Starting the system; establishing
system communications with radio and EEPROM
Stand-by Standby mode. Set up system, waiting
mode user's action
Attempting to link with the receiver and
waiting its answer
Working
Standby; no action has been taken for
some time
EEPROM module missing or corrupt
Radio error; radio communications error
Display Error. Display communication
Error
Multikey Error. Multikey not in ON
position or Broken.
CAN Error
FREE FALL has been detected.
Display and EEPROM settings do not
Match
RFID Signature Check Error
Pairing Error
General hardware failure
Critical battery signal
Activated Order
Hall effect interference. Some
mechanisms are disabled
Range Limiter warning. Out of Range
Wrong Selector Position
Tilt Warning
Release Button + START Pressed
Action
Wait
Press START to enter operation
mode
Wait
Operate
Press START to return to
operation mode
Check EEPROM and reprogram
if necessary
Replace transmitter
Replace Display or Transmitter
Check Multikey or Replace it.
Reset the transmitter
Check files and reprogram
EEPROM and/or Display
Use a correct RFID card and/or
configuration
Check the Tether connection
and Receiver is ON.
Replace transmitter
Replace batteries with charged
ones
Release Order
Wait until interference
disappears
Check Range Limier is ON with
the correct ID.
Press Start to link in this
position, or return to the
original position.
Bring the transmitter to normal
position
The transmitter will switch off
after release is done.
