APPENDIX 1. RECORD DATA
The record data used in NCW-3DHPN is written in the GSDML file.
APPENDIX 1-1. Sensor Parameter
NCW-3DHPN has following sensor parameters.
Index Name
0x1000 Axis-1 Sensor Parameter
0x1001 Axis-1 Preset
0x2000 Axis-2 Sensor Parameter
0x2001 Axis-2 Preset

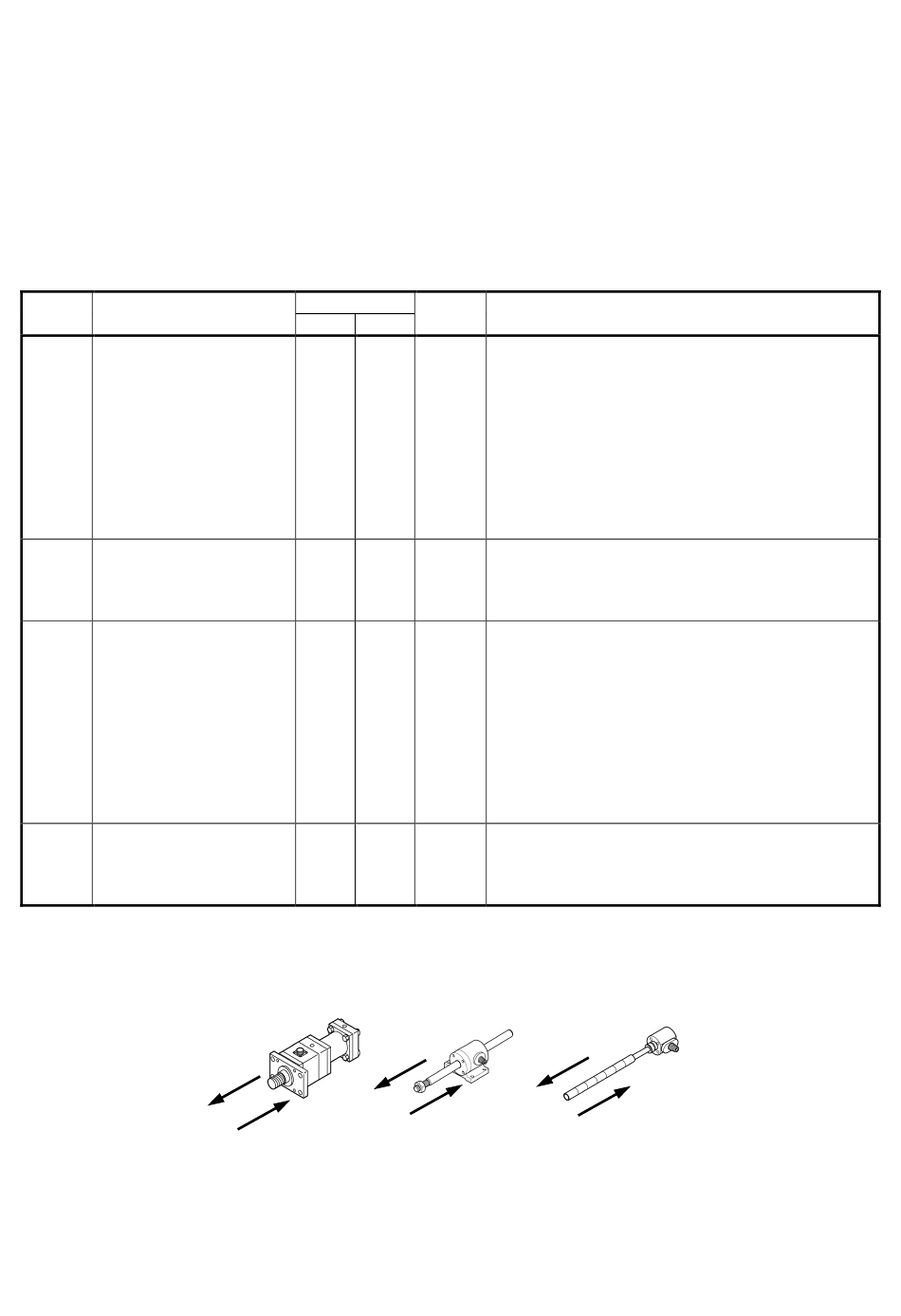

◆ Travel direction of the rod
Access
Read Write
○ ○
○ ○
○ ○
○ ○
CYLNUC
CYLNUC MarkⅡ
CW
CCW
Data
Type
BYTE Bit0 ... Axis Unavailable
Specify "Enable" or "Disable" for the axis.
0: Enable (Default)
1: Disable
Bit2 ... Code Sequence (Position Data Increase Direction)
Specify the ABSOCODER sensor rotation direction in
which the position data increases.
0: CW (Default)
1: CCW
UDINT Specify "Preset Value".
Axis-1 position data is changed to a value which is specified
at this parameter after setting it.
BYTE Bit0 ... Axis Unavailable
Specify "Enable" or "Disable" for the axis.
0: Enable (Default)
1: Disable
Bit2 ... Code Sequence (Position Data Increase Direction)
Specify the ABSOCODER sensor rotation direction in
which the position data increases.
0: CW (Default)
1: CCW
UDINT Specify "Preset Value".
Axis-2 position data is changed to a value which is specified
at this parameter after setting it.
VLS-12.8PRA28
VLS-12.8MHP28
CW
CW
CCW
69
Description
IRS-51.2P
CCW
