4-2. ABSOCODER Sensor Dimensions
(1) CYLNUC Cylinder / CYLNUC MarkⅡ Cylinder
Contact your NSD representative for details of the dimension.

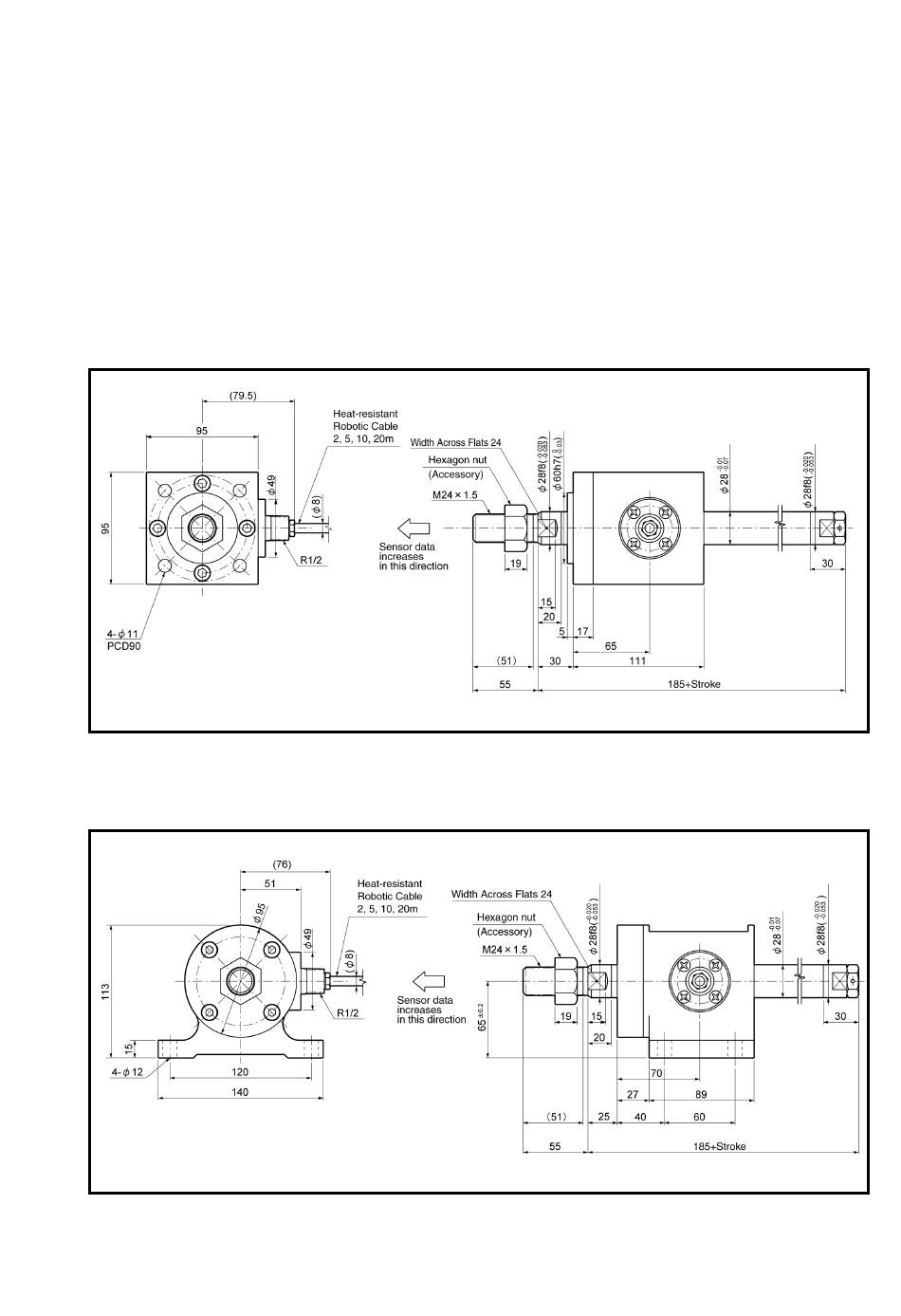

(2) Rod sensor (VLS-12.8PRA28)
◆VLS-12.8PRA28-[ ]FA[ ] (Flange-mount type)
◆VLS-12.8PRA28-[ ]LA[ ] (Base-mount type)
12
Units: mm
