NSD ABSOCODER NCW-3DHPNLC Specifications & Instruction Manual page 50

9-8. Create of the NCW-3DHPN Tag Table
Create I/O data tag in "Default tag table" in order to use I/O data of NCW-3DHPN in the PLC sequence program.
The I/O data tag is created for axis-1 and axis-2; however, a tag of unused axis doesn't need to create.
Indicates procedures of the I/O data tag.

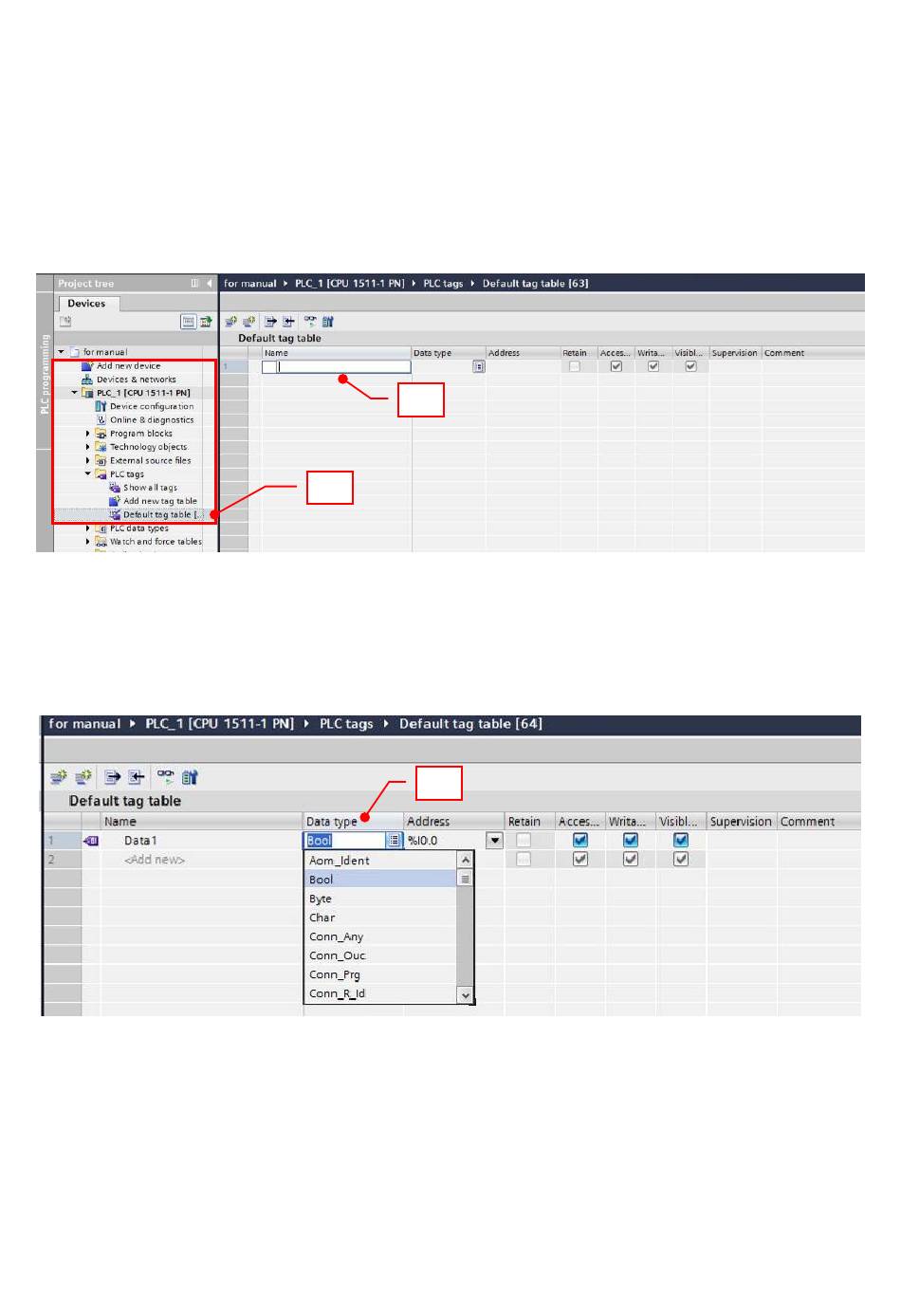

(1) Select "PLC->PLC Tag->Default tag table", and display "default tag table".
(2) Input the data tag name.
(2)
(1)
(3) Selects a data type of the data tag.
Check the data type for each I/O data by referring to "9-8-1. I/O data format".
(3)
43
