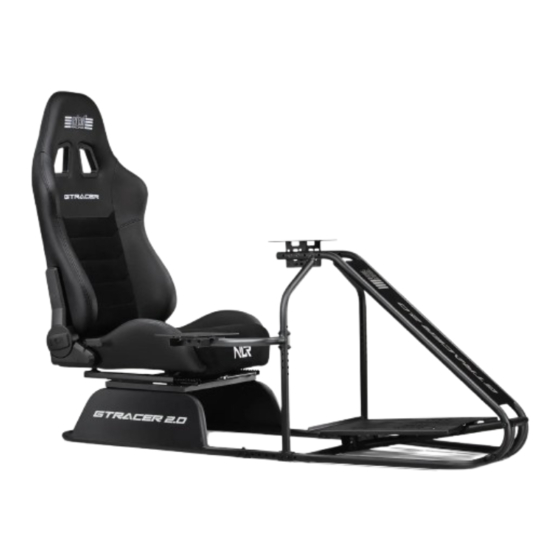

Next Level Racing GTRACER 2.0 Instruction Manual

Hide thumbs

page of 32

/ 32
Bookmarks

Available languages

Quick Links

Download this manual

T A K E R A C I N G T O T H E N E X T L E V E L

Video Instruction: bit.ly/nlrbuild

INSTRUCTION MANUAL

Need help?

Do you have a question about the GTRACER 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Next Level Racing GTRACER 2.0

Page 1 T A K E R A C I N G T O T H E N E X T L E V E L Video Instruction: bit.ly/nlrbuild INSTRUCTION MANUAL...
Page 2 We know you’re eager to start racing! Take your time with the instructions and follow this guide to assemble your product. You’ll be setting yourself up for success by following the instruction booklet to fully optimize your product. ASSEMBLY VIDEO bit.ly/nlrbuild @next_level_racing @nextlevelracingOfficial @nextlvlracing Next Level Racing FOLLOW support@nextlevelracing.com...
Page 3 Video Instruction: bit.ly/nlrbuild T A K E R A C I N G T O T H E N E X T L E V E L N E X T L E V E L R A C I N G . C O M...
Page 4 support@nextlevelracing.com PRE-RACE CHECKS WARNING & ASSEMBLY TIPS • Please do not use power tools for assembly as over tightening can damage your frame. • Do not force parts together. • Avoid cross threading threaded items. • If in doubt consult the installation video (see QR code below or contact us at support@nextlevelracing.com). •...
Page 5 Video Instruction: bit.ly/nlrbuild IN THE *NOT TO SCALE NOTE: Some Items Come with Rust Resistant Coating 1 x REAR FRAME 1 x PEDAL FRAME 1 x CENTRE WHEEL SUPPORT 1 x ENGRAVED ACRYLIC PANEL 2 x SIDE WHEEL SUPPORT 1 x WHEEL PLATE 1 x SHIFTER ARM 1 x SHIFTER PLATE 1 x SEAT BASE...
Page 6 support@nextlevelracing.com 4 x M6 16mm SOCKETHEAD BOLTS 6 x M6 35mm SOCKETHEAD BOLTS 2 x M8 16mm SOCKETHEAD BOLTS 16 x M6 40mm SOCKETHEAD BOLTS 2 x M8 35mm SOCKETHEAD BOLTS 27 x M6 FLANGE NUTS 29 x M6 WASHERS 4 x M6 55mm SOCKETHEAD BOLTS 2 x M8 60mm SOCKETHEAD BOLTS 6 x M8 WASHERS...
Page 7 Video Instruction: bit.ly/nlrbuild MOUNTING LOCATIONS WHEEL PLATE *NOT TO SCALE* PRODUCT LEGEND: MOZA R5 / R9 / R16 / R21 Fanatec DD1 / DD2 / CSL DD / DD Pro MOZA Bottom Mounting Bracket Simagic M10 / Alpha / Alpha Mini Logitech G Pro / G25 / G27 / G29 / G920 / G923 Asetek La Prima Cammus C5...
Page 8 support@nextlevelracing.com MOUNTING LOCATIONS PEDAL PLATE *NOT TO SCALE* PRODUCT LEGEND: Thrustmaster TLCM / T3PM Fanatec CSL Elite V2 Logitech G SERIES Fanatec CSL MOZA SRP Thrustmaster T3PA Fanatec ClubSport V3 MOZA CRP Thrustmaster T300RS ASETEK La Prima Logitech GPro...
Page 9 Video Instruction: bit.ly/nlrbuild PARTS: • • 1 x Pedal Frame • • 1 x Rear Frame • • 4 x M6 35mm Sockethead Bolts • • 4 x M6 Flange Nuts Repeat on Other • • 4 x M6 Washers Side A) Align the Pedal Frame with the Rear Frame.
Page 10 support@nextlevelracing.com PARTS: SIDE WHEEL SUPPORT ADJUSTMENT • • NIL A) Suggested Side Wheel Support position for users 120cm - 160cm tall. B) Suggested Side Wheel Support position for users 160cm+ tall. PARTS: • • 2 x Side Wheel Supports (L&R) •...
Page 11 Video Instruction: bit.ly/nlrbuild PARTS: • • 1 x Wheel Plate • • 4 x M6 40mm Sockethead Bolts • • 4 x M6 Flange Nuts • • 4 x M6 Washers A) Align the Wheel Plate with the Wheel Deck and adjust to desired position. B) Bolt through and secure with 2 x M6 Bolts, Washers and Flange Nuts on each side.
Page 12 support@nextlevelracing.com PARTS: • • 1 x M6 40mm Press Fit Bolt • • 1 x M6 Flange Nut Side View Bolt through and secure Shifter Plate to Shifter Arm with M6 Press Fit Bolt and Flange Nut. PARTS: • • 1 x Shifter Assembly (Step 09) A) Align the Shifter Assembly with the Wheel Deck Support on either the left or right side.
Page 13 Video Instruction: bit.ly/nlrbuild PARTS: SEAT INSTALLATION • • 1 x Seat Backrest Uninstall the M8 Dome Shaped Bolts and Washers pre-installed on the Seat Back. PARTS: • • 1 x Seat Base Repeat on Other WARNING: Make sure both Seat Recliner Arms are set to the same angle before Side assembling the seat.
Page 14 support@nextlevelracing.com PARTS: PARTS: WARNING: The Seat Recliners SEAT RECLINER ADJUSTMENT are spring loaded, take care when • • • • NIL adjusting to avoid injury. Lift both Seat Recliner Levers to change the angle of the Seat Backrest. Release the levers adjusting the backrest to lock in place.
Page 15 Video Instruction: bit.ly/nlrbuild PARTS: • • 1 x Buttkicker Mount • • 2 x M8 16mm Sockethead Bolts • • 2 x M8 Washers A) Align the Buttkicker Mount with the Nut Inserts on the underside of the Seat Frame. B) Bolt through and secure with 2 x M8 Bolts and Washers.
Page 16 support@nextlevelracing.com PARTS: WHEELPLATE ADJUSTMENT • • NIL A) Remove the Wheel Plate by uninstalling 4 x M8 Bolts, Washers and Flange Nuts. B) Adjust Wheel Plate to desired angle and position. Replace the Bolts, Washers and Nuts. PARTS: PEDAL PLATE ADJUSTMENT •...
Page 17 Video Instruction: bit.ly/nlrbuild PARTS: • • NIL Change the position of the Hinge Bracket and the Angle Bracket as shown above. Replace the Bolts. PARTS: • • NIL Reinstall the Pedal Plate with the uninstalled Bolts. PARTS: ACRYLIC PANEL INSTALLATION •...
Page 18 support@nextlevelracing.com WARNING Please do not use power tools for assembly as over tightening can damage your frame. Do not force parts together. Avoid cross threading threaded items. If in doubt consult the installation video (see QR code below or contact us at support@nextlevelracing.com). Take extra care handling the Engraved Acrylic Panel when unboxing.
Page 19 Video Instruction: bit.ly/nlrbuild Manuel d’instructions de GTRACER 2.0 Votre voyage de simulation de course commence ici. Nous savons que vous avez hâte de commencer à courir ! Prenez votre temps avec les instructions et suivez ce guide pour assembler votre produit. Vous vous préparerez au succès en suivant le livret d’instructions pour optimiser pleinement votre produit.
Page 20 GTRACER 2.0 Gebruiksaanwijzing Uw simrace-avontuur begint hier. We weten dat u staat te popelen om te beginnen met racen! Neem de tijd om de instructies te lezen en volg deze gids om uw product te monteren. U bent klaar voor succes door het instructieboekje te volgen om uw product volledig te optimaliseren.
Page 21 Video Instruction: bit.ly/nlrbuild Manuale di istruzioni GTRACER 2.0 Il tuo viaggio nelle corse simulate inizia qui. Sappiamo che non vedi l’ora di iniziare a gareggiare! Prenditi il tuo tempo con le istruzioni e segui questa guida per assemblare il tuo prodotto. Ti preparerai al successo seguendo il libretto di istruzioni per ottimizzare completamente il tuo prodotto.
Page 22 GTRACER 2.0 Manual de instrucciones Tu viaje de carreras de simulación comienza aquí. ¡Sabemos que estás ansioso por comenzar a competir! Tómate tu tiempo con las instrucciones y sigue esta guía para ensamblar tu producto. Estarás preparándote para el éxito si sigues el folleto de instrucciones para optimizar completamente tu producto.
Page 23 Video Instruction: bit.ly/nlrbuild GTRACER 2.0 Bedienungsanleitung Ihre Sim-Racing-Reise beginnt hier. Wir wissen, dass Sie es kaum erwarten können, mit dem Rennen zu beginnen! Nehmen Sie sich Zeit für die Anweisungen und folgen Sie dieser Anleitung, um Ihr Produkt zusammenzubauen. Sie sind auf dem Weg zum Erfolg, wenn Sie die Bedienungsanleitung befolgen, um Ihr Produkt vollständig zu optimieren.
Page 24 GTRACER 2.0 取扱説明書あなたのシミュレーションレーシングの旅はここから始まります。私たちはあなたがレースを始めたいと切望していることを知っています。時間をかけて説明書を読み、このガイドに従って製品を組み立ててください。説明書に従って製品を完全に最適化することで、成功への準備が整います。警告締めすぎるとフレームが損傷する可能性があるため、組み立てには電動工具を使用しないでください。部品を無理やり合わせないでください。ねじ山が交差しているアイテムをねじ込まないでください。不明な点がある場合は、インストールビデオを参照してください (下の QR コードを参照するか、 support@nextlevelracing.com までお問い合わせください)。開梱するときは、刻印されたアクリルパネルの取り扱いに特に注意してください。シートリクライナーを調整するときは、怪我をしないように注意してください。 GTRacer シートを組み立てたら、シートリクライナーの警告ステッカーをはがしてください。警告窒息の危険 - 小さな部品があるため、 3 歳未満のお子様や食べられないものを口に入れる癖のある方には適していません。...
Page 25 Video Instruction: bit.ly/nlrbuild Manual de Instruções do GTRACER 2.0 Sua jornada de corrida de simulação começa aqui. Sabemos que você está ansioso para começar a correr! Leve o seu tempo com as instruções e siga este guia para montar seu produto. Você estará se preparando para o sucesso seguindo o livreto de instruções para otimizar totalmente seu produto.
Page 26 Руководство по эксплуатации GTRACER 2.0 Ваше путешествие в гонках на симуляторах начинается здесь. Мы знаем, что вы горите желанием начать гонки! Не торопитесь с инструкциями и следуйте этому руководству, чтобы собрать свой продукт. Вы настроите себя на успех, следуя...
Page 27 Video Instruction: bit.ly/nlrbuild GTRACER 2.0 Kullanım Kılavuzu Simülasyon yarış yolculuğunuz burada başlıyor. Yarışmaya başlamak için can attığınızı biliyoruz! Talimatları okumak için zaman ayırın ve ürününüzü birleştirmek için bu kılavuzu izleyin. Ürününüzü tam olarak optimize etmek için kullanım kılavuzunu izleyerek kendinizi başarıya hazırlayacaksınız.
Page 28 GTRACER 2.0 Návod k použití Vaše sim závodní cesta začíná zde. Víme, že toužíte začít závodit! Udělejte si čas s pokyny a podle tohoto průvodce sestavte svůj produkt. Postupem podle návodu k plné optimalizaci vašeho produktu se připravíte na úspěch.
Page 29 Video Instruction: bit.ly/nlrbuild Instrukcja obsługi GTRACER 2.0 Twoja przygoda z symulatorami wyścigowymi zaczyna się tutaj. Wiemy, że nie możesz się doczekać, aby zacząć ścigać się! Poświęć trochę czasu na instrukcje i postępuj zgodnie z tym przewodnikiem, aby złożyć produkt. Przygotujesz się na sukces, postępując zgodnie z instrukcją, aby w pełni zoptymalizować...
Page 30 ‫ تعليمات‬GT Racer ‫ نحن نعلم أنك حريص عىل بدء السباق! خذ وقتك مع التعليمات و اتبع هذا الدليل لتجميع منتجك. ستقوم بإعداد نفسك للنجاح باتباع كتيب التعليمات لتحسني � ن منتجك بالكاملدليل تعليمات‬GTRACER 2.0 ‫.تبدأ رحلة سباق المحاكاة الخاصة بك هنا‬...
Page 31 Video Instruction: bit.ly/nlrbuild GTRACER 2.0 使用说明书您的模拟赛车之旅从这里开始。我们知道您迫不及待地想要开始比赛！请花点时间阅读说明并按照本指南组装您的产品。按照说明手册充分优化您的产品，您将为成功做好准备。警告请勿使用电动工具进行组装，因为过度拧紧可能会损坏框架。不要强行将各个部分连接在一起。避免将螺纹物品交叉穿入。如果有疑问，请观看安装视频（参见下面的二维码或联系我们 support@nextlevelracing.com）。拆箱时要格外小心处理雕刻亚克力面板。调整座椅躺椅时要小心，以免受伤。 GTRacer 座椅组装完成后，请撕掉座椅躺椅警告贴纸。警告窒息危险 - 小部件不适合 3 岁以下儿童或任何倾向于将不可食用的物体放入嘴里的人。如果您需要任何产品支持，请联系我们友好的团队：support@nextlevelracing.com 请参阅图片中的步骤编号。 01 - A) 将踏板框架与后框架对齐。 B) 用螺栓穿过框架侧面，并在每侧用 2 个 M6 螺栓、垫圈和法兰螺母固定。...
Page 32 support@nextlevelracing.com NOTES support@nextlevelracing.com...
