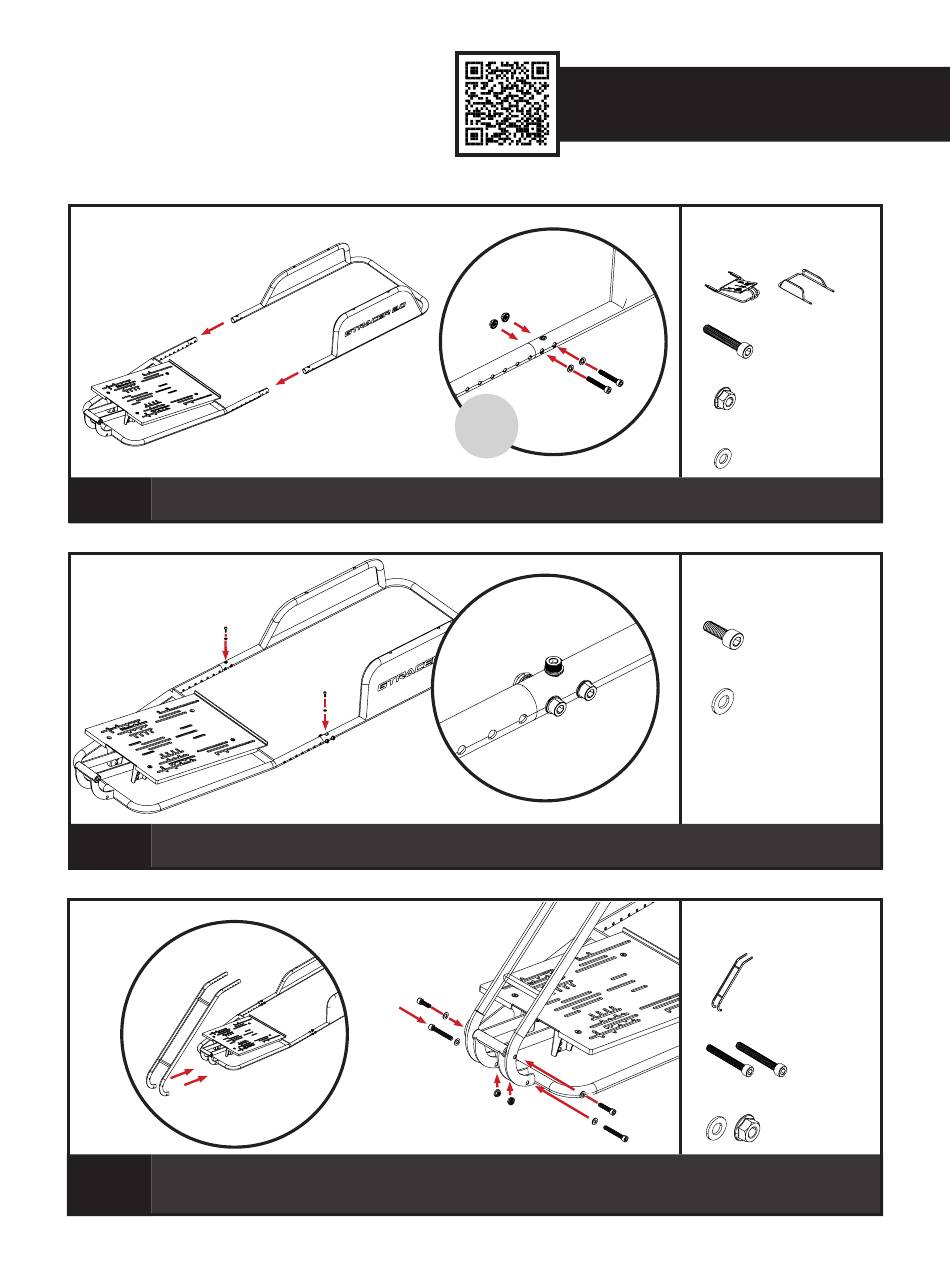

Next Level Racing GTRACER 2.0 Instruction Manual page 9

A)
01 A) Align the Pedal Frame with the Rear Frame.
B) Bolt through the side of Frame and secure with 2 x M6 Bolts, Washers and Flange Nuts on each side.
02
Bolt through the top of the Frame Assembly and secure with 1 x M6 Bolt and Washer on each side.
A)
A) Align the Centre Wheel Support through holes with the Pedal Frame through holes.
03
B) Bolt through the lower holes with 2 x M8 60mm Bolts, Washers and Flange Nuts and bolt through
the upper threaded holes with 2 x M8 35mm Bolts and Washers.
B)
Repeat
on Other
Side
B)
9
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 1 x Pedal Frame
• • 1 x Rear Frame
• • 4 x M6 35mm Sockethead Bolts
• • 4 x M6 Flange Nuts
• • 4 x M6 Washers
PARTS:
• • 2 x M6 16mm Sockethead Bolts
• • 2 x M6 Washers
PARTS:
• • 1 x Centre Wheel Support
• • 2 x M8 60mm Sockethead Bolts
• • 2 x M8 35mm Sockethead Bolts
• • 4 x M8 Washers
• • 2 x M8 Flange Nuts
