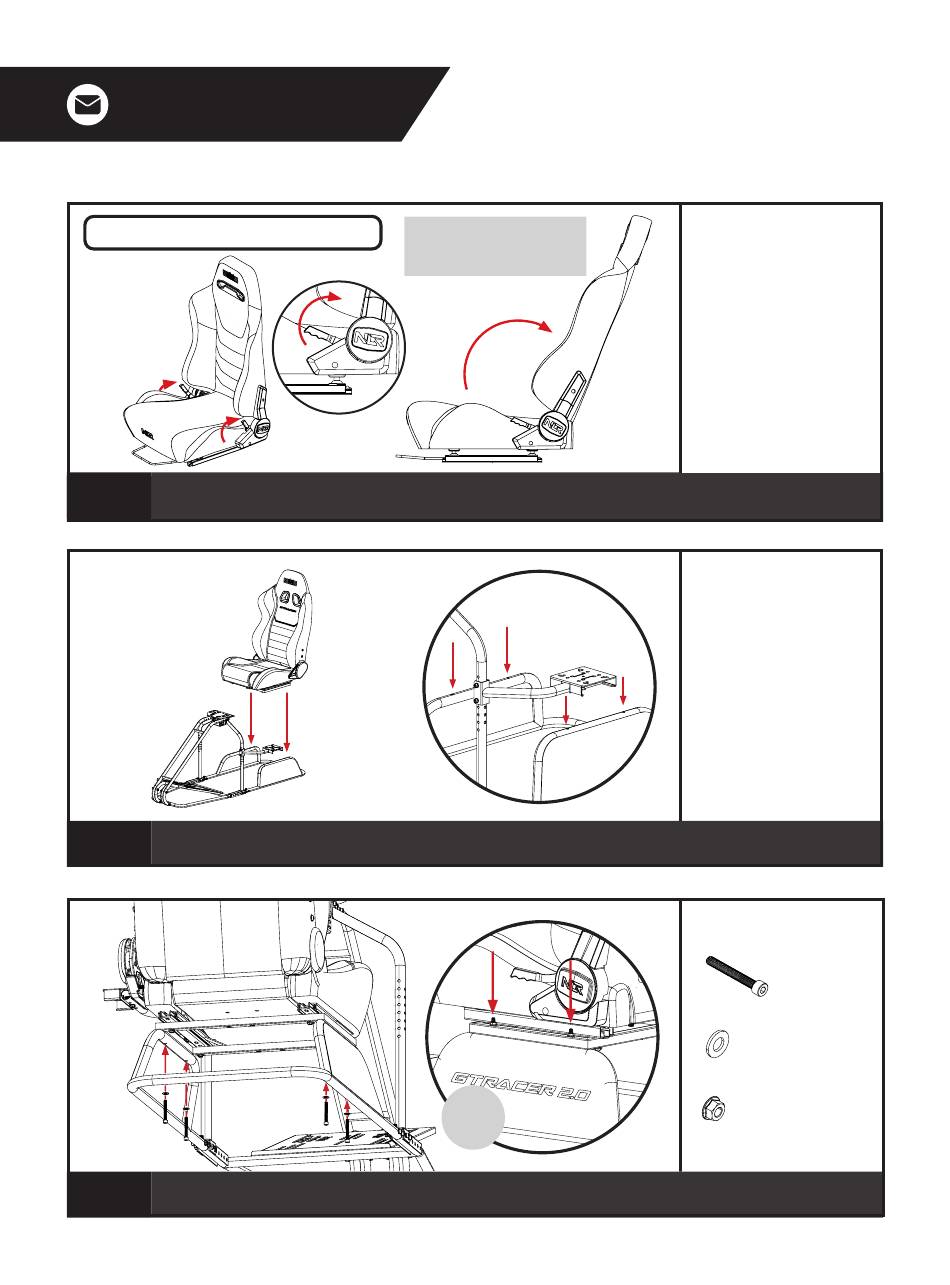

SEAT RECLINER ADJUSTMENT
03
Lift both Seat Recliner Levers to change the angle of the Seat Backrest. Release the levers adjusting
16
the backrest to lock in place.
17
Align the Seat Assembly with the Rear Frame of the cockpit.
A)
18
A) Align 4 x M6 Bolts and Washers with the through holes on the underside of the Rear Frame.
B) Bolt through and secure the Seat to the Frame with 4 x M6 Flange Nuts on the topside of the Seat Frame.
WARNING: The Seat Recliners
are spring loaded, take care when
adjusting to avoid injury.
B)
Repeat
on Other
Side
14
PARTS:
PARTS:
• •
NIL
• • NIL
PARTS:
• • NIL
PARTS:
• • 4 x M6 55mm Sockethead Bolts
• • 4 x M6 Washers
• • 4 x M6 Flange Nuts
