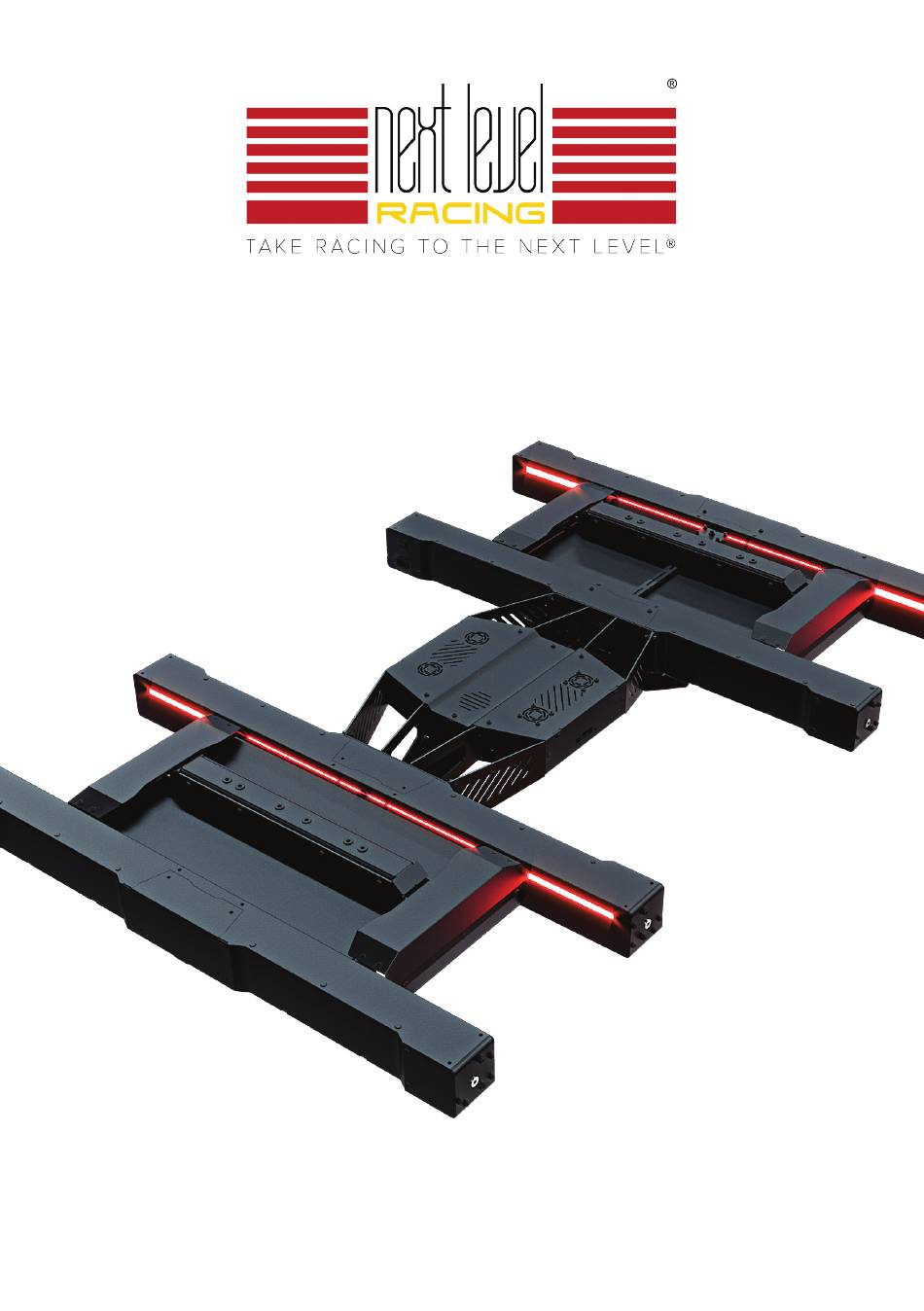

- Page 1 I N S T R U C T I O N M A N U A L TRACTION PLUS MOTION PLATFORM If you need support, please contact our friendly team at: support@nextlevelracing.com...
- Page 2 CONTENTS 1 Introduc on 1.1 General Safety Instruc ons ....1.2 Grounding Instruc ons ....1.3 Ergonomic and Health Warnings .
- Page 3 Product Manual...
- Page 4 If you have any ques ons, email us at support@nextlevelracing.com. Warning: The Next Level Racing® Trac on Plus is not intended for use by children under 16 years of age. Close supervision and safety instruc on is necessary when this product is used by or near children or persons with reduced physical, sensory, or mental capabili es.
- Page 5 1.1 General Safety Instruc ons To reduce the risk of burns, fire, electrical shock, or injury: • Use the pla orm for its intended use only, according to the instruc- ons. • Always turn all switches off and unplug the pla orm from the electrical outlet before hardware installa on, maintenance, servicing, or repairs.
- Page 6 Warning: By its nature, the Next Level Racing® Trac on Plus can perform force-ful, rapid movements. We have made every effort to protect users and by-standers from injury due to mechanical parts movement and electrical con-nec vity.
- Page 7 3 Cockpit Compa bility The Next Level Racing® Trac on Plus is designed specifically for the Next Level Racing® GTtrack cockpits, but it can be adapted to other cockpits. For certain brands of cockpits, we provide adapter plates - for other cockpits, custom assembly might be required.
- Page 8 The Next Level Racing® Trac on Plus is suitable for indoor use only. It is in-tended for personal use, but it may be suitable for certain commercial appli-ca ons. Please contact us at support@nextlevelracing.com if you are look-ing to use the pla orm for your business.
- Page 9 4.3 Limita ons • No vibra on genera ng devices (except tac le transducers) can be at- tached to the top frame. • Maximum allowable total weight of scale tac le transducer a ached to the cockpit: 2.3 kg (5.0 lbs) •...
- Page 10 4.5 Dimensions All dimensions are provided in millimeters. Product Manual...
- Page 11 4.6 Mo on Pla orm and Cockpit Installa on Before installa on please check which module is the front one - there is in- scrip on on a side. Make sure modules will be put on flat floor. Mo on Pla orm has to be assembled by two persons.
- Page 12 Screws and washers: Trying to li mo on pla orm, make sure your hands are on yellow spots: Product Manual...
- Page 13 1. Install the Central unit to the Front module, using 4x M5 16mm a ached bolts. 2. Install the Central unit to the Rear module, using 4x M5 16mm a ached bolts. Product Manual...
- Page 14 3. Unscrew the bolt with the shakeproof washer and connect ground wire to the Rear module. It is very important to connect ground wire properly! Product Manual...
- Page 15 4. Connect LOGIC and COM cables to the Front and Rear modules. 5. Connect POWER cable from Central unit to Front module. Product Manual...
- Page 16 4.7 GTtrack cockpit Installa on 1. Install covers to your cockpit, using 8x M8 55mm a ached bolts,8x nuts and 16x flat washers. 2. Install covers to your cockpit, using 2x M8 20mm a ached bolts,2x nuts and 2x flat washers. Product Manual...
- Page 17 3. Install adapters to your cockpit, using 10x M8 65mm a ached bolts, 8x nuts and18x flat washers. 4. Install adapters to your cockpit, using 8x M8 20mm a ached bolts, 8x nuts and 8x flat washers. Product Manual...
- Page 18 5. Install your cockpit to the mo on pla orm, using 12x M8 20mm a ached bolts (top beams can be adjusted using your hands). CAUTION Check the lengths between top beams. Both of them have to be exact 1160 mm How to measure the cri cal distance: Product Manual...
- Page 19 4.8 Ferrite Core Installa on Once you choose which power cable will be used in your setup, install the a ached ferrite core. Make sure to place the core on the power cable as close to the mo on pla orm as possible. 4.9 Connec ng to PC and So ware Installa on Once the mo on pla orm is securely installed: 1.
- Page 20 2. Connect the pla orm directly to PC USB port. Using a USB hub is not recommended. The opera ng system will automa cally install the nec- essary drivers. 3. Visit nextlevelracing.com/support-downloads to download and install the so ware, providing your product’s serial number. Product Manual...
- Page 21 5 Maintenance To reduce the risk of fire, keep the pla orm dust-free. To clean the unit, use a so , dry cloth. Do not use solvents or cleaners that may corrode or otherwise damage aluminium, steel, or plas c parts of the pla orm. No other maintenance is required.
- Page 22 Next Level Racing®, Mo on Systems, and their partners are not liable for any indirect, incidental, or puni ve damages from use of this product.
- Page 23 10 Customer Feedback The Next Level Racing® Traction Platform is designed to set a new benchmark in motion simulation. we have used feedback from our customers to drive innovation and continually improve our products. We design and engineer our products purely for the enjoyment of our customers, and that is why we always encourage our customers to send us their comments and suggestions.
- Page 24 11 Notes Product Manual...
- Page 25 Product Manual...
- Page 26 To share your settings for games, tips, be aware of latest updates and interact with other Next Level Racing® Motion customers, join the NLR forum: www.nextlevelracing.com/forum To follow video instructions for the Next Level Racing® Traction Plus Motion Platform, you can visit: www.nextlevelracing.com/next-level-racing-video- instructions-and-tips/...
