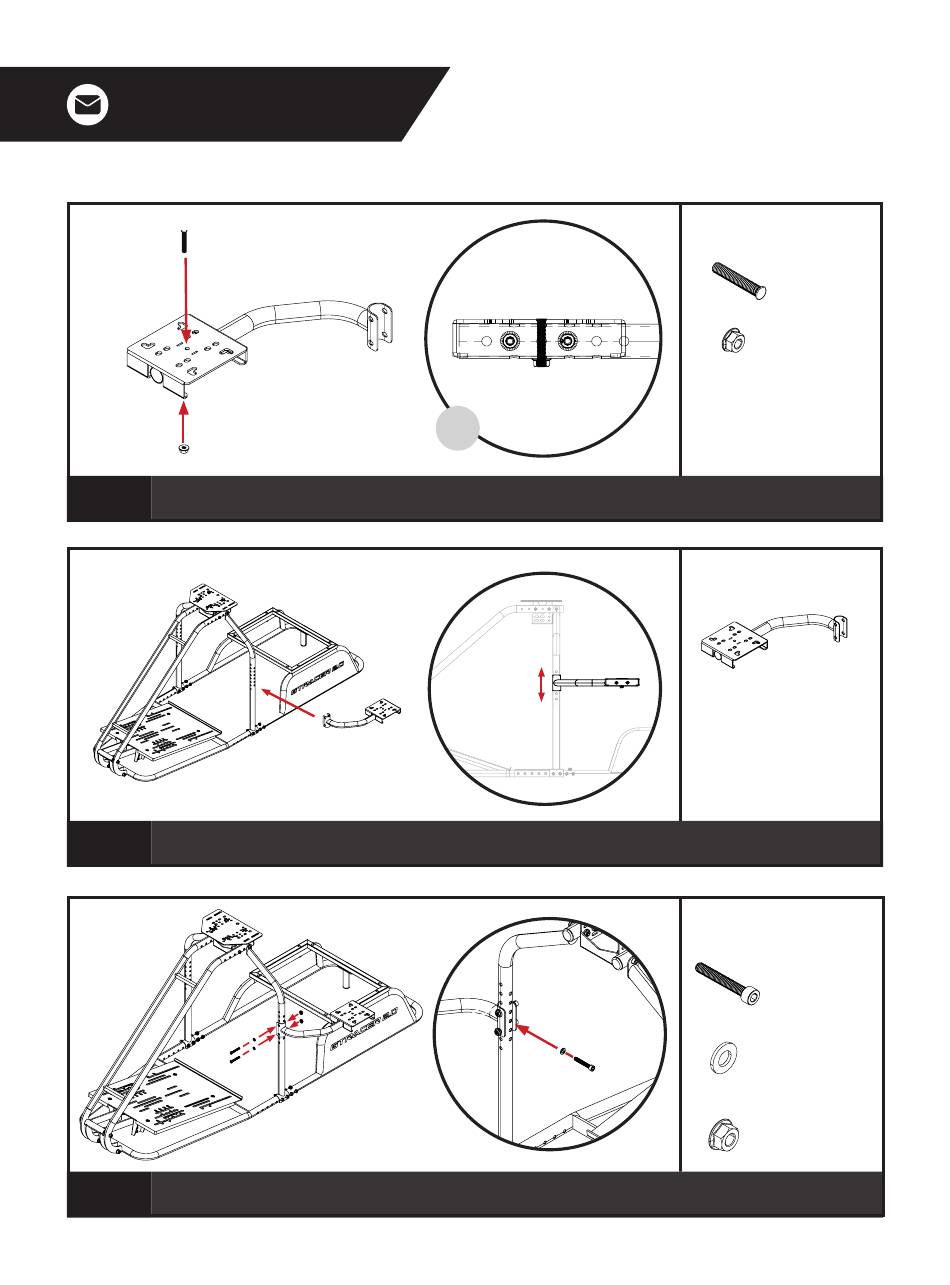

Bolt through and secure Shifter Plate to Shifter Arm with M6 Press Fit Bolt and Flange Nut.
A)
11 A) Align the Shifter Assembly with the Wheel Deck Support on either the left or right side.
B) Adjust to desired Shifter height.
A)
12
A) Bolt through and secure Shifter Assembly to a Side Wheel Support with 2 x M6 Bolts, Washers and Flange Nuts.
B) Bolt through the inner Side Wheel Support through holes and secure with M6 Bolt and Washer.
Side
View
B)
B)
12
PARTS:
• • 1 x M6 40mm Press Fit Bolt
• • 1 x M6 Flange Nut
PARTS:
• • 1 x Shifter Assembly (Step 09)
PARTS:
• • 3 x M6 40mm Sockethead Bolts
• • 3 x M6 Washers
• • 2 x M6 Flange Nuts
