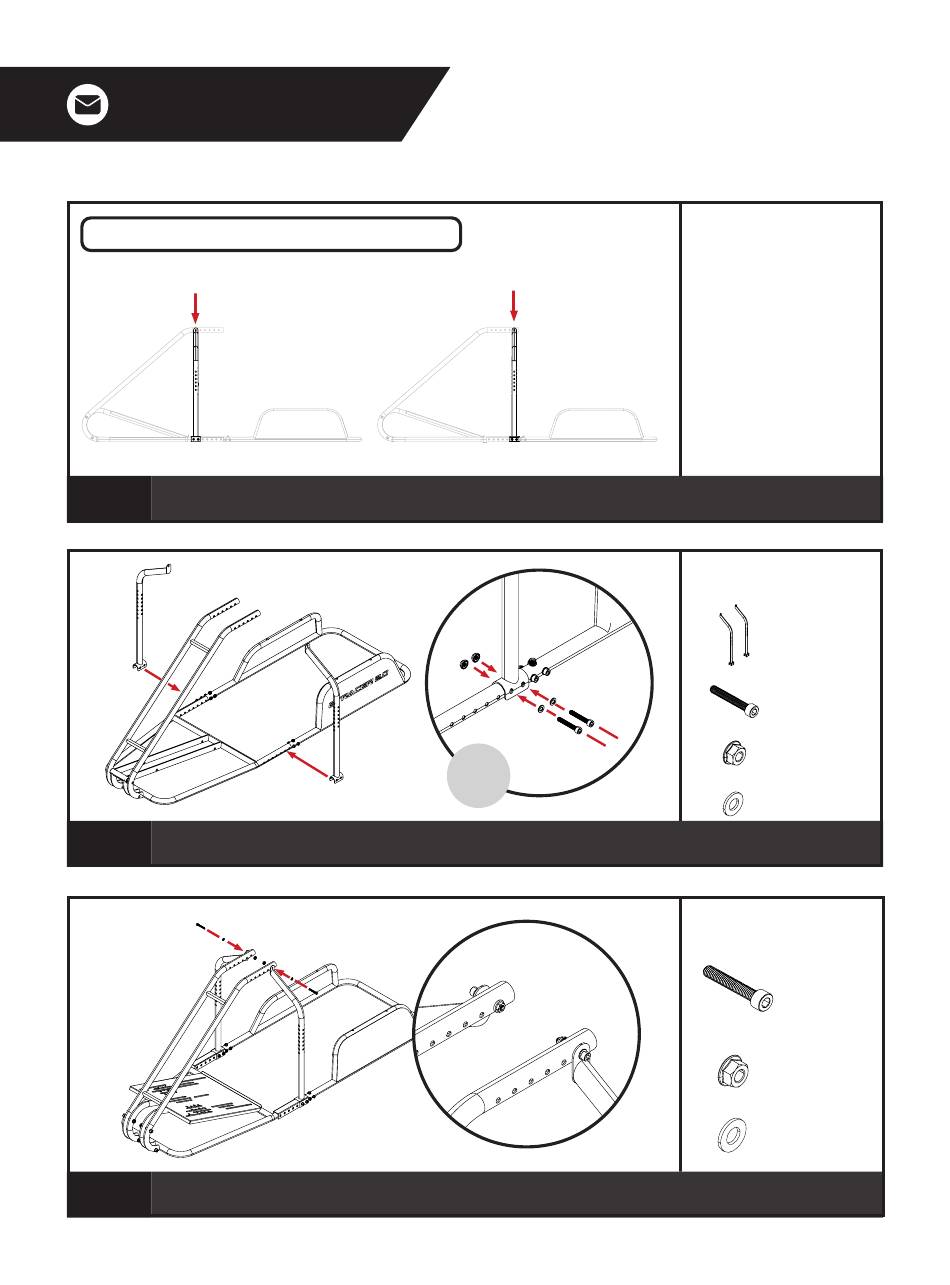

SIDE WHEEL SUPPORT ADJUSTMENT
A)
04
A) Suggested Side Wheel Support position for users 120cm - 160cm tall.
B) Suggested Side Wheel Support position for users 160cm+ tall.
A)
05
A) Align the Side Wheel Supports with the Pedal Frame through holes at desired horizontal position.
B) Bolt through and secure with 2 x M6 Bolts, Washers and Flange Nuts on both sides.
06
Align through holes on the Centre Wheel Support with the Side Wheel Support through holes. Bolt
through and secure with M6 Bolt, Washer and Flange Nut on each side.
B)
B)
Repeat
on Other
Side
10
PARTS:
• • NIL
PARTS:
• • 2 x Side Wheel Supports (L&R)
• • 4 x M6 40mm Sockethead Bolts
• • 4 x M6 Flange Nuts
• • 4 x M6 Washers
PARTS:
• • 2 x M6 40mm Sockethead Bolts
• • 2 x M6 Flange Nuts
• • 2 x M6 Washers
