ST X-STM32MP-RBT01 Getting Started page 4

Expansion board for the stm32mp157f-dk2 discovery kit

Board setup

To set up the board, follow the steps below:

Step 1.

Check the position of the jumper on the J1 connector. This jumper enables the write operation for the

EEPROM, if required.

Step 2.

Connect the

that pin 1 of the

1 can be identified as a rectangular footprint pad on both boards.

Note:

Boards can damage if not connected properly.

Step 3.

Power the STM32MP157F-DK2 using the USB Type-C

Step 4.

Connect 48 V DC power supply on CN3 connector of X-STM32MP-RBT01 board.

Step 5.

Connect DC motors on CN4 and CN5 connectors of X-STM32MP-RBT01 board.

Step 6.

Program the supported firmware in the microSD™ card of the STM32MP157F-DK2 board. The X-

STM32MP-RBT01 board is ready for use.

UM3482 - Rev 1

X-STM32MP-RBT01

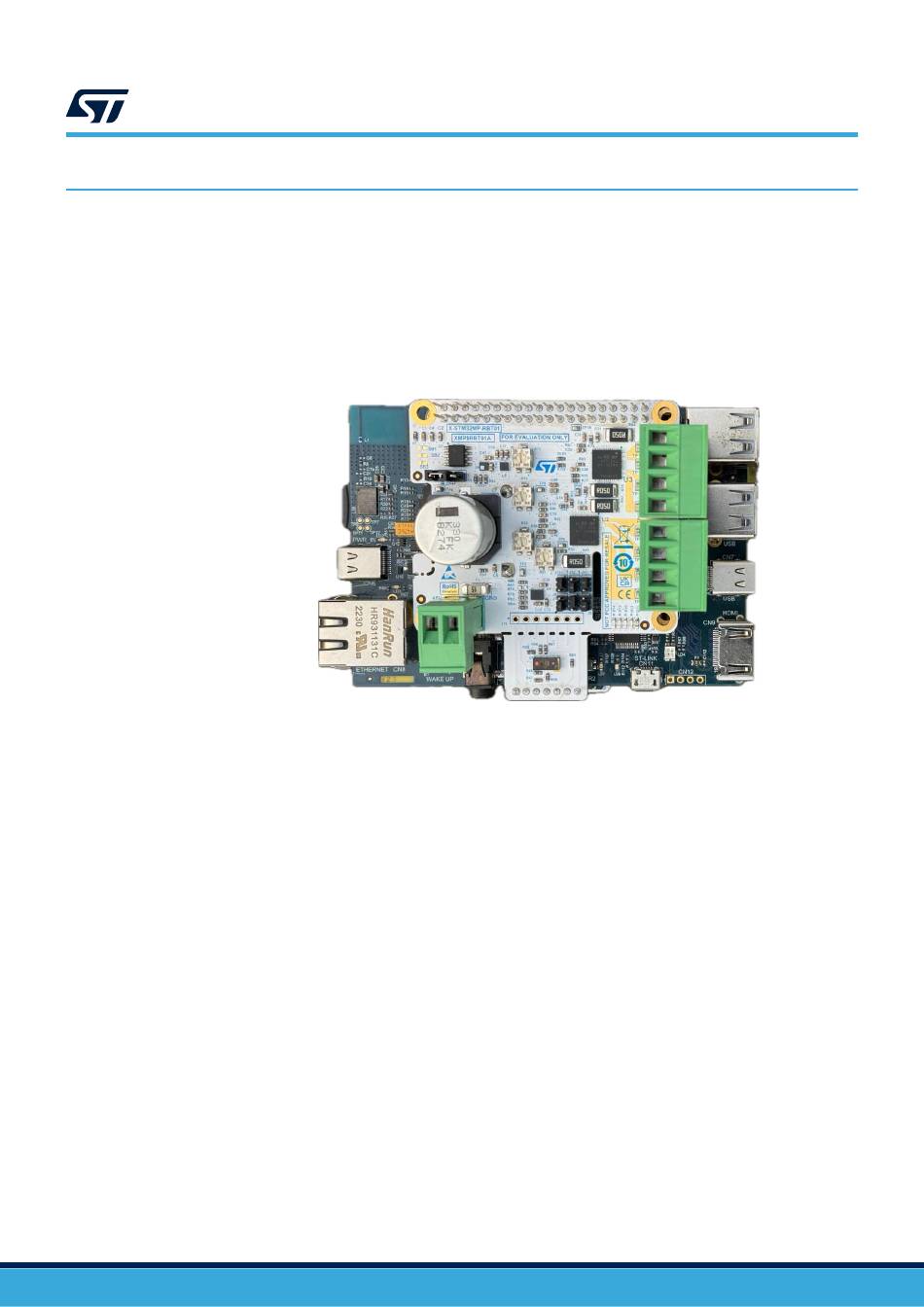

to the STM32MP157F-DK2 from the top, as shown below. Ensure

X-STM32MP-RBT01

board matches with pin 1 of the STM32MP157F-DK2 board. Pin

Figure 4.

System block diagram

cable.

UM3482

Board setup

page 4/36
