7.5 Magnetometer sensor IIS2MDC
The IIS2MDC is a high-accuracy, ultra-low-power 3-axis digital magnetic sensor. The IIS2MDC has a magnetic
field dynamic range up to ±50 gauss.
The IIS2MDC includes an I2C serial bus interface that supports standard, fast mode, fast mode plus, and high-
speed (100 kHz, 400 kHz, 1 MHz, and 3.4 MHz) and an SPI serial standard interface.
The device can be configured to generate an interrupt signal for magnetic field detection.
The IIS2MDC is available in a plastic land grid array package (LGA) and is guaranteed to operate over an
extended temperature range from -40 °C to +85 °C.
Order code
Package
Operating Voltage
UM3482 - Rev 1

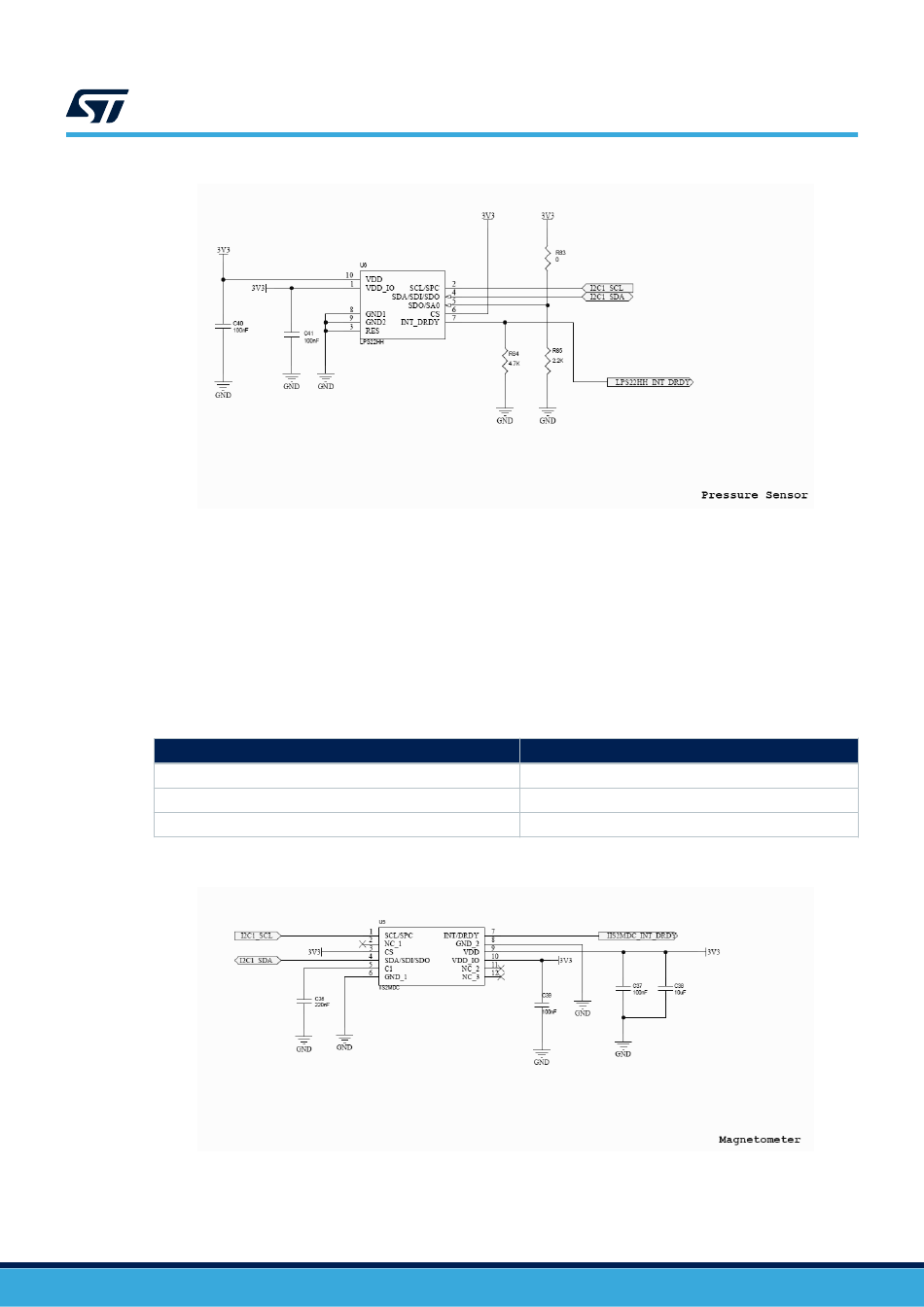

Figure 8. LPS22HHTR circuit
Table 9. IIS2MDCTR details
Features
Figure 9. IIS2MDCTR circuit
Description
IIS2MDCTR
12-WFLGA
1.71 V to 3.6 V
UM3482
