Summary of Contents for ST X-NUCLEO-IHM04A1

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.
  • Page 2 1 to 4 DC motors is implemented via jumpers. The X-NUCLEO-IHM04A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other expansion boards with a single STM32 Nucleo board. The user can also mount the ST Morpho connector.

  • Page 3: Table Of Contents

    Contents UM1925 Contents Getting started ................3 Hardware description and configuration ........4 overcurrent (OCD) threshold setting ..........5 Selecting the mode ................6 2.2.1 Mode no. 1: two bidirectional DC motors .......... 7 2.2.2 Mode no. 2: four DC motors unidirectional ........7 2.2.3 Mode no.

  • Page 4: Getting Started

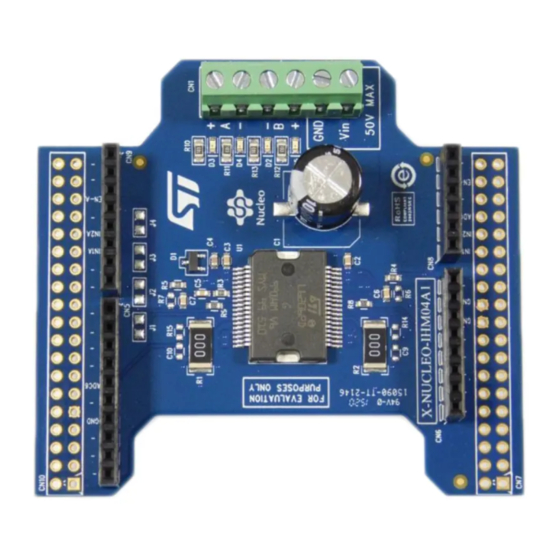

    UM1925 Getting started Getting started The X-NUCLEO-IHM04A1 expansion board is a dual brush DC motor driver covering a wide range of applications. The maximum ratings of the board are the following:  Power stage supply voltage (VS) from 8 V to 50 V ...

  • Page 5: Hardware Description And Configuration

    Hardware description and configuration UM1925 Hardware description and configuration Figure 2: Jumper and connector position The following table provides the detailed pinout of the Arduino UNO R3 and ST Morpho connectors. Table 1: Arduino UNO R3 connector table Connector Signal...

  • Page 6: Overcurrent (Ocd) Threshold Setting

    UM1925 Hardware description and configuration Table 2: ST Morpho connector table Connector Signal Remarks Ground ADC-6 Section 2.1: IN1A "overcurrent (OCD) CN10 threshold setting" Section 2.1: "overcurrent (OCD) IN2A threshold setting" EN-A Ground Ground Section 2.1: IN1B "overcurrent (OCD) threshold setting"...

  • Page 7: Selecting The Mode

    Hardware description and configuration UM1925 Figure 3: Overcurrent threshold versus resistor value (no paralleling) When one of the paralleling modes is used (see Section 2.2: "Selecting the mode"), the actual OCD threshold value may be scaled as indicated in Table 1: "Arduino UNO R3 connector table".

  • Page 8: Mode No. 1: Two Bidirectional Dc Motors

    UM1925 Hardware description and configuration Max output Output Mode threshold current DS(on) scaling Parallel all bridges 0.075 Ω one unidirectional DC 11.2 A rms × 4 Connected Connected Connected Connected motor Notes: The current limit is shared between the two motors connected on the same full-bridge (A or B). 2.2.1 Mode no.

  • Page 9: Mode No. 3: Parallel Connection For Higher Current - One Dc Motor Bidirectional

    Hardware description and configuration UM1925 Maximum current is 2.8 A rms and the output R is equal to 0.3 W (T = 25 °C). DS(on) The maximum overcurrent detection threshold is set to 5.6 A. The total rms current flowing in A+ and A- DC motor must be below the 2.8 A rms limit.

  • Page 10: Mode N °4: Parallel Connection For Higher Current - Two Unidirectional Dc Motors

    UM1925 Hardware description and configuration  Both A+ (CN1 pin1) B+ (CN1 pin4)  Both A- (CN1 pin2) B- (CN1 pin3) Table 6: Jumper selection Disconnected Disconnected Connected Connected Figure 6: One DC motor bidirectional - higher current 2.2.4 Mode n °4: parallel connection for higher current - two unidirectional DC motors This mode is similar to mode 3 - the bidirectional DC motor is replaced by two unidirectional DC motors...

  • Page 11: Mode No. 5: Parallel Connection For Lower Overcurrent - One Dc Motor Bidirectional

    Hardware description and configuration UM1925 Figure 7: two unidirectional DC motors - higher current 2.2.5 Mode no. 5: parallel connection for lower overcurrent - one DC motor bidirectional This mode, with output power in parallel, maintains a lower operating current compared to the solution in mode 3, but power dissipation is reduced.

  • Page 12: Mode N °6: Parallel Connection For Lower Overcurrent - Two Unidirectional Dc Motors

    UM1925 Hardware description and configuration Figure 8: One bidirectional DC motor - lower overcurrent 2.2.6 Mode n °6: parallel connection for lower overcurrent - two unidirectional DC motors This mode is similar to the mode 5 - the bidirectional DC motor is replaced by two unidirectional DC motors.

  • Page 13: Mode No. 7: Parallel All Bridges - One Unidirectional Dc Motor

    Hardware description and configuration UM1925 Figure 9: two unidirectional DC motors - lower overcurrent 2.2.7 Mode no. 7: parallel all bridges - one unidirectional DC motor This mode, with all output power in parallel, allows driving a single-brush unidirectional DC motor.

  • Page 14: Schematic Diagram

    UM1925 Schematic diagram Schematic diagram Figure 11: X-NUCLEO-IHM04A1 circuit schematic DocID028121 Rev 1 13/17...

  • Page 15: Bill Of Material

    Bill of material UM1925 Bill of material Table 10: Bill of material (Part 1) Item Description Q.ty Part reference Value Voltage Part type CAP ALU 100µF 63V SMD-PACK-G 100UF ALUMINIUM 10x10.2 mm CAP CER 100nF 50V X7R 0603 C2 C3 100NF CERAMIC CAP CER 220nF 35V X7R 0603...
  • Page 16 UM1925 Bill of material Table 11: Bill of material (Part 2) Item Manufacturer Part Distributo Distributor Toler. Package type Manufacturer number Part num. EEEFK1J101P PANASONIC EEEFK1J101P FARNELL 9696040RL C0603 C0603 C0603 C0603 NICHICON UVR1J101MPD C0603 MKDS1/6-3.81 PHOENIX CONTACT MKDS1/6-3.81 220-4377 SSQ110-03 SAMTEC SSQ-110-04-F-S...

  • Page 17: Revision History

    Revision history UM1925 Revision history Table 12: Document revision history Date Revision Changes 06-Aug-2015 Initial release. 16/17 DocID028121 Rev 1...
