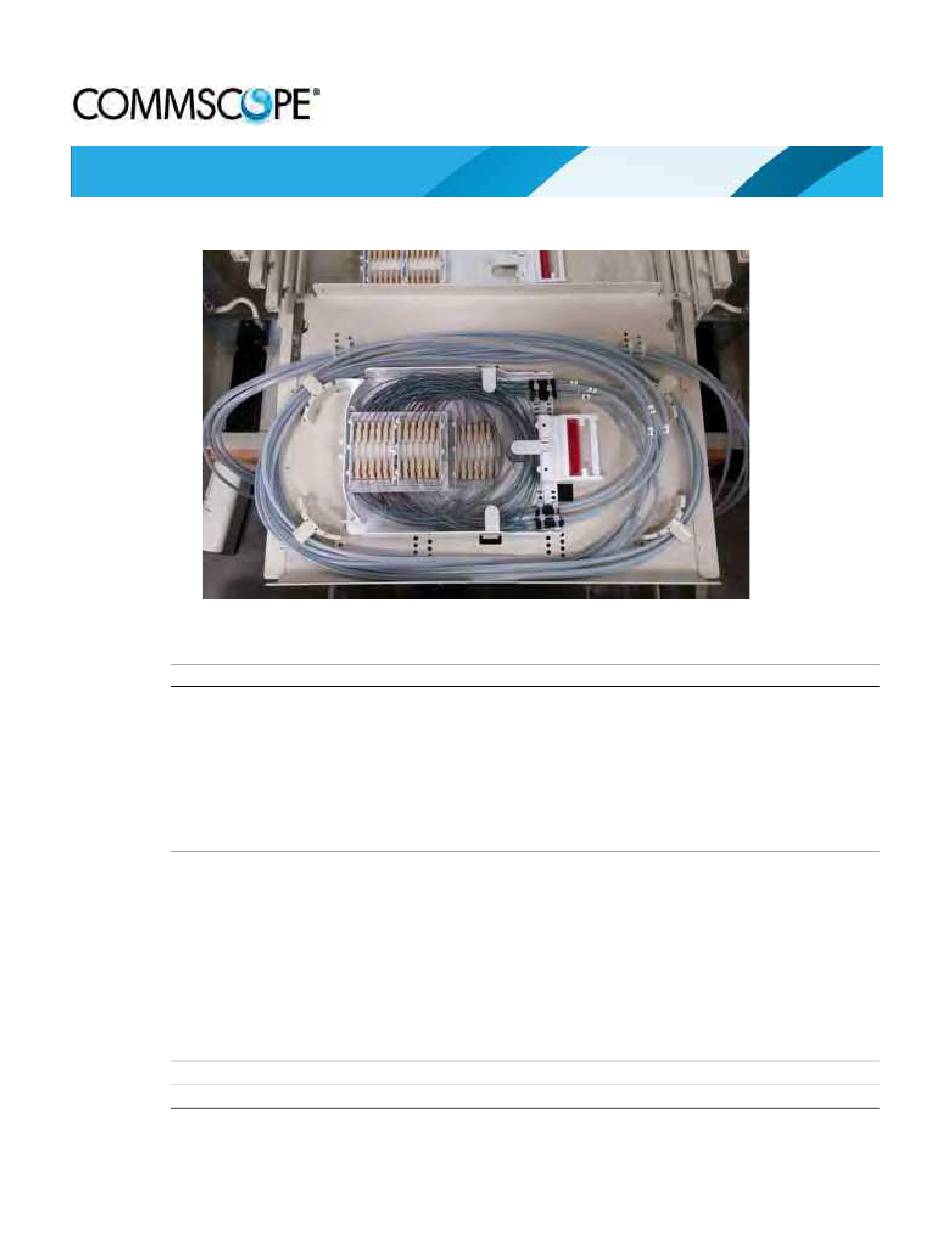

TECP-31-107  Issue 1  May 2016
Content
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2
KIT COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3
INSTALLATION OF TRAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4
CUSTOMER INFORMATION AND ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

INTRODUCTION

This user manual tells how to install the CommScope FOSC-450C splice tray in the
CommScope 10K Fiber Entrance Cabinet (FEC-10K).
Revision History
ISSUE
1
May 2016
300100116451 Rev A
FOSC-450C Splice Tray for FEC-10K Cabinet
Installation Instructions
FOSC-450C Splice Tray
DATE
REASON FOR CHANGE
Original.
© 2016 CommScope. All Rights Reserved.
Page
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOSC-450C and is the answer not in the manual?

Questions and answers

Related Manuals for CommScope FOSC-450C

Summary of Contents for CommScope FOSC-450C

  • Page 1: Table Of Contents

    CUSTOMER INFORMATION AND ASSISTANCE ........... 14 INTRODUCTION This user manual tells how to install the CommScope FOSC-450C splice tray in the CommScope 10K Fiber Entrance Cabinet (FEC-10K).

  • Page 2: Related Publications

    TECP-31-106 1 DESCRIPTION The FOSC-450C is a FOSC splice tray designed for use in the high-density FEC-10K cabinet. This tray is equipped with four splice modules (as compared to the usual three splice modules). Each splice tray accommodates 288 mass fusion splices, which is equivalent to the capacity of one splice drawer in the FEC-10K cabinet.

  • Page 3: Kit Components

    TECP-31-107 • Issue 1 • May 2016 To accommodate ribbon slack storage, the FOSC-450C splice tray is twice the height of the standard FOSC splice tray. Figure 1 shows the splice tray with cover removed and with features called out that are important in installation.

  • Page 4: Installation Of Tray

    Figure 2. Kit Components 3 INSTALLATION OF TRAY Use the following procedure to install a FOSC-450C splice tray in a splice drawer in the FEC- 10K cabinet. Note: This procedure assumes that the OSP and IFC cable sub-units have been broken out and routed to the FEC-10K splice drawer within furcation tubes as described in the FEC- 10K user manual (TECP-31-106).
  • Page 5 NOT PRESENT (L-R) 4A-3A-2A-1A OR REMOVED 26340-A Figure 3. FOSC-450C Splice Tray on Work Table 2. Install and splice tubes 1A and 1B as follows: a. Extend the ribbons straight out to measure them as shown in Figure IFC TUBE TIE-OFFS...
  • Page 6 PLACED IN PROTECTORS, SET IN SPLICE CHIP, AND SPLICED PER LOCAL PRACTICE FIGURE 8 FORMED BY CROSSING OVER 1A AND 1B RIBBONS PROTECTORS: USE ONE FOR EACH SPLICE 26342-A Figure 6. Splicing 1A and 1B Ribbons Page 6 © 2016 CommScope. All Rights Reserved.
  • Page 7 Figure SPLICE CHIP INSTALLED IN NUMBER 1 POSITION REMAINING SIX TUBES (L-R: 4A, 3A, 2A; 2B, 3B, 4B) ROUTED OFF WORK TABLE UNTIL SPLICED 26345-A Figure 8. Splice Chip 1 Installed Page 7 © 2016 CommScope. All Rights Reserved.
  • Page 8 BEING PLACED WITHIN POSITION 2 SPLICE CHIP EXTRA COIL OF RIBBONS BEING FLIPPED OVER POSITION 1 TO FORM DOUBLE COIL SPLICE CHIP INSIDE SPLICE CHIP 26348-A Figure 10. Splice Chip 2 Being Installed Page 8 © 2016 CommScope. All Rights Reserved.
  • Page 9 WITH NO CROSS- OVER SPLICE CHIPS 1 SPLICE CHIPS AND 2 ALREADY 3 AND 4 INSTALLED COMPLETED AND LOADED ON STACK MODULE 26351-A Figure 12. Third and Fourth Splice Chips on Stack Module Page 9 © 2016 CommScope. All Rights Reserved.
  • Page 10 MODULE TOWARD AND ABOVE SPLICE TRAY, CAUSING RIBBONS TO FOLD OVER THEMSELVES AS SHOWN HERE. STACK MODULE (HELD IN HAND, NOT VISIBLE HERE) RIBBONS STARTING TO COIL 26353-A Figure 14. Installing Stack Module Page 10 © 2016 CommScope. All Rights Reserved.
  • Page 11 ROTATE TRAY COUNTER- CLOCKWISE TOWARD DRAWER AS SHOWN COMPLETED SPLICE SPLICE TRAY DRAWER IN FEC-10K 26355-A Figure 16. M oving Completed Splice Tray into FEC-10K Splice Drawer Page 11 © 2016 CommScope. All Rights Reserved.
  • Page 12 18, tuck the furcation tubes more securely under the guides. Criss-cross the tubes neatly as shown. TUCK TUBES UNDER GUIDES CRISS-CROSS TUBES NEATLY IN CENTER 26356-A Figure 18. Tucking in and Criss-Crossing Tubes Page 12 © 2016 CommScope. All Rights Reserved.
  • Page 13 DRAWER IS NOT CATCHING PROVIDED ON THE DRAWER ABOVE IT. 26357-A Figure 19. Securing Tubes With Ribbon Holders and Checking Drawer for Clearance 15. Check again for clearance, and close the drawer. Page 13 © 2016 CommScope. All Rights Reserved.

  • Page 14: Customer Information And Assistance

    TECP-31-107 • Issue 1 • May 2016 4 CUSTOMER INFORMATION AND ASSISTANCE For technical assistance for this product, call 1.800.830.5056. To email for technical service, use TAC.Americas@commscope.com. CommScope’s website address is www.commscope.com. Page 14 © 2016 CommScope. All Rights Reserved.
