CommScope FTTX Quick Reference Manual

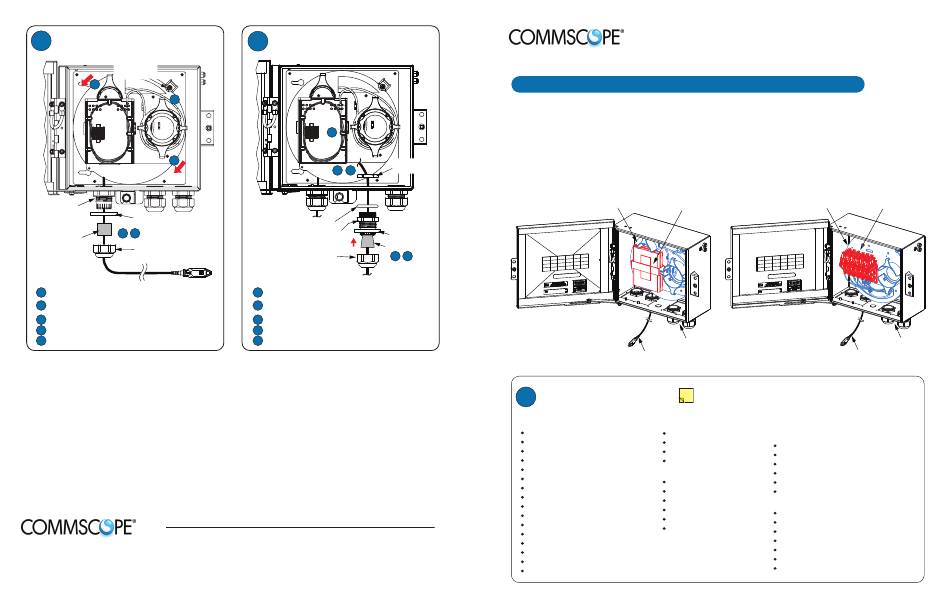

Uncoil Feeder Cable From
9
Internal Spool
SPOOL LATCH
SCREW
B
D
C
COMPRESSION
FITTING BASE
METAL
SPACER
A E
GROMMET
COMPRESSION NUT
A Remove compression nut and grommet.
Loosen spool latch screw, then rotate spool counter
B
clockwise to unwind cable.
C To store excess slack, rotate spool clockwise.
Align spool with notch and tighten spool latch screw.
D
Reinstall grommet and compression nut.
E
PRODUCT INFORMATION AND TECHNICAL ASSISTANCE:
For patents, go to
http://www.commscope.com/ProductPatent/ProductPatent.aspx
For product support, go to
http://www.commscope.com/SupportCenter
CommScope (logo) and CommScope are trademarks.
Contents herein are current as of the date of publication. CommScope reserves the right to
change the contents without prior notice. In no event shall CommScope be liable for any
damages resulting from loss of data, loss of use, or loss of profits and CommScope
further disclaims any and all liability for indirect, incidental, special, consequencial or
other similar damages. This disclaimer of liability applies to all products, publications,
and services during and after the warranty period.
© 2016 CommScope. All Rights Reserved.
Drop Cable Installation
10
C
RETAINING
B D NUT
O-RING
METAL
COMPRESSION
SPACER
FITTING BASE
GROMMET
COMPRESSION
A E
NUT
A Remove compression nut, spacer, and grommet.
Thread drop cable through compression nut, spacer,
B
and compression fitting base and route into cabinet.
C Splice or connect drop cable to feeder cable.
Secure drop cable inside cabinet with cable tie.
D
Reinstall grommet, spacer, and compression nut.
E
FTTX Solutions Rapid Flexible Fiber Box
With External Spool
Quick Reference Guide
TECP-90-614 · Issue 4 · November 2016

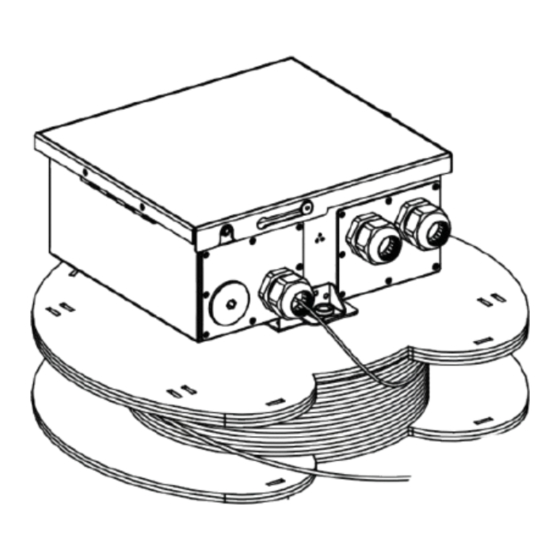

The Rapid Flexible Fiber Box (Rapid FFB) with external spool provides a RapidReel cable system in a compact metal
cabinet. The external spool versions of the Rapid FFB are equipped with internal and external spool assemblies that
together can hold up to 1000 feet of Indoor/Outdoor (I/O) cable. Both a 12-fiber option (one cable) and a 24-fiber
option (two cables) are available. The external end of each I/O cable is either stubbed or terminated with an
MPO connector. The internal end of each I/O cable is secured to a splice tray or connected to sliding adapter packs
(LC or SC). At installation, the I/O cables are unwound and routed to the feeder interface. The splice tray or sliding
adapter packs provide the drop side interface. The following drawings show the Rapid FFB configurations.
ROTATING INTERNAL
SPLICE
SPOOL ASSEMBLY
TRAYS
Rapid FFB with splice
trays for the drop interface
DROP CABLE
ENTRY FITTINGS
FEEDER
CABLE
1 Tools and Materials
NOTE:
General Pole Mount
216B Key Tool (accessory) 3/8-inch x 2-Inch Lag Screw (2))
Pliers Drill
#2 Phillips Screwdriver 9/32-inch Drill Bit
Tape Measure 9/16-Inch Wrench
Vinyl Tape
Optional
Pen or Marker
1/2-Inch Threaded Rod (1) or
Wire Cutter
1/2-Inch Through-Bolt (1)
Torque Wrench With 7/16-Inch Socket
1/2-Inch Nut (2)
2-Hole Compression Lug
1/2-Inch Flat Washer (2)
Crimping Tool
1/2-Inch Lock Washer (2)
Pulling Swivel
3/4-Inch Wrench
External Grounding System
LC or SC Connector Cleaning Kit
CABINET DIMENSIONS
MPO Connector Cleaning Kit (MPO FFB)
WIDTH: 12.75 INCHES
Splicing Equipment (splicing FFB)
HEIGHT: 11.5 INCHES
Pad Lock (optional)
DEPTH: 6.8 INCHES (with bracket)
TECP-90=614 Rev D
ROTATING INTERNAL SLIDING ADAPTER
SPOOL ASSEMBLY
Rapid FFB with sliding
adapter packs for the
drop interface
FEEDER
CABLE
Installation and assembly can be completed by one person.
Wall Mount
Wood-Framed Wall
3/4-Inch Plywood Backer Board
#10 x 1-1/2-Inch Wood Screw (4)
#10 Flat Washer (4)
Drill
3/32-Inch Drill Bit
Screwdriver Drill Bit
Masonry Wall
3/8-Inch Concrete Anchor
3/8-Inch x 1-1/2-Inch hex head capscrew (2)
3/8-Inch Flat Washer (2)
3/8-Inch Lock Washer (2)
Drill
5/8-Inch Masonry Drill Bit (check with supplier)
9/16-Inch Wrench
© 2016 CommScope. All Rights Reserved.
PACKS
DROP CABLE
ENTRY FITTINGS
24768-C
