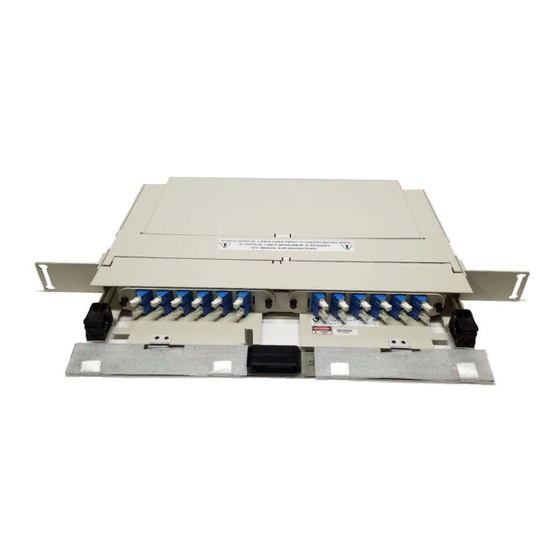

CommScope FPX Series User Manual

1u & 2u fiber panel
Hide thumbs Also See for FPX Series:
Table of Contents

Advertisement

Quick Links

Download this manual
ADCP-92-098
Rev. C, May 2018
commscope.com
1U PANEL
2U PANEL
Content
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Admonishments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADCP-92-098 Rev C
www.commscope.com
FPX Series
1U & 2U Fiber Panel
User
Manual
23967-B
(continued)
© 2018 CommScope. All Rights Reserved.
Page
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CommScope FPX Series

Summary of Contents for CommScope FPX Series

  • Page 1 INSTALLATION................5 (continued) ADCP-92-098 Rev C Page 1 © 2018 CommScope. All Rights Reserved. www.commscope.com...

  • Page 2: Table Of Contents

    This manual contains descriptions and installation and cable routing instructions for the TE Connectivity FPX 1U and 2U Fiber Panels. Related Publications Title/Description ADCP Number FPX MPO Trunk Cable Clamp Kit Instructions 92-080 Trademark Information CommScope (logo0 and CommScope are trademarks, Page 2 © 2018 CommScope. All Rights Reserved.
  • Page 3 CABLE CLIP (1 PER SIDE) MOUNTING BRACKET (2) HINGED COVER FRONT TRAY RETAINING LATCH COVER CLIPS (2 PER SIDE) 23970-A DESIGNATION SLIDING LABEL (2) TRAY Figure 1. FPX 1U Panel External Features Page 3 © 2018 CommScope. All Rights Reserved.

  • Page 4: Adcp

    Cables can be either Intrafacility Fiber (IFC) or Outside Plant (OSP). Figure 2 shows a 2U panel. INDIVIDUAL SUBUNIT 24620-A PROTECTIVE TUBES CABLE BREAKOUT FANOUT CHIPS CABLE CLAMP Figure 2. FPX 2U Panel with Termination Only (Rear View) Page 4 © 2018 CommScope. All Rights Reserved.

  • Page 5: Installation

    6. Termination Only Installation (covered in Section 2.8 on Page 7. Installing a cable clamp (covered in Section 3 on Page 15); 8. Routing cables and pigtails (covered in Section 4 on Page 17). Page 5 © 2018 CommScope. All Rights Reserved.

  • Page 6: Selecting A Mounting Bracket Option

    ROTATE BRACKET FOR 23-INCH RACK MOUNTING 1U FIBER PANEL 5 INCH RACK RECESS POSITION (AS SHIPPED) ROTATE BRACKET FOR 23-INCH RACK MOUNTING 2U FIBER PANEL 23968-B Figure 4. Selecting a Mounting Bracket Option Page 6 © 2018 CommScope. All Rights Reserved.

  • Page 7: Installing The Panel On The Rack

    1U and 2U fiber panels installed in a 19-inch rack with a 5-inch recess. 12-24 SCREWS (4 PLACES) 12-24 SCREWS (4 PLACES) 23971-B Figure 5. Installing the Panel on the Rack Page 7 © 2018 CommScope. All Rights Reserved.

  • Page 8: Installing Vertical Cable Guides (Vcgs)

    HOLES FOR VCG 6-32 SCREWS (2 PER VCG) (PROVIDED) 1U FIBER PANEL VCG (2) 23972-B INSTALLATION 2U FIBER PANEL 6-32 SCREWS HOLES FOR VCG (2 PER VCG) (PROVIDED) Figure 6. Installing Vertical Cable Guides Page 8 © 2018 CommScope. All Rights Reserved.

  • Page 9: Sliding The Drawer In And Out

    1. To release a closed drawer, press the release button down, as shown in Figure 7, and slide the drawer out to the first detent. 23944-B PRESS BUTTON DOWN TO PULL TRAY OUT TO FIRST DETENT Figure 7. Releasing Closed Drawer to Open It Page 9 © 2018 CommScope. All Rights Reserved.
  • Page 10 9. Slide the drawer in until it locks into the closed position. 23946-B PRESS IN TRAY RETAINER CLIPS (ONE ON EACH SIDE) TO SLIDE TRAY BACK INTO PLACE Figure 9. Releasing Open Drawer to Close It Page 10 © 2018 CommScope. All Rights Reserved.

  • Page 11: Panel Grounding

    GROUNDING LOCATION Figure 10. Grounding Location (Rear View of Panel) 2-HOLE LUG TERMINAL COPPER WIRE HOLE CENTER SPACING: 0.625 INCHES STRIP BACK INSULATION 24016-A PER LUG MANUFACTURER'S RECOMMENDATION Figure 11. Ground Stud Page 11 © 2018 CommScope. All Rights Reserved.

  • Page 12: Installing Adapter Packs

    "IN" TO LOCK ADAPTER PACK INTO PANEL "IN" POSITION "OUT" POSITION NYLATCH PLUNGER FASTENERS MUST BE PULLED OUT BEFORE INSERTING THE ADAPTER PACK INTO MOUNTING HOLES IN PANEL 24622-A Figure 12. Installing Adapter Packs Page 12 © 2018 CommScope. All Rights Reserved.

  • Page 13: Installing Mpo Cassettes

    "IN" TO LOCK CASSETTE INTO PANEL "IN" POSITION "OUT" POSITION NYLATCH PLUNGER FASTENERS MUST BE PULLED OUT BEFORE INSERTING THE MPO CASSETTE INTO MOUNTING HOLES IN PANEL 23948-B Figure 13. Installing MPO Cassettes Page 13 © 2018 CommScope. All Rights Reserved.

  • Page 14: Termination Only Installation

    Follow cable manufacturer's recommendations when stripping the sheath. 3. Determine the correct clamp and grommet combination required to secure the cable to the panel. A rubber clamp and grommets of various sizes are provided. Select a grommet that Page 14 © 2018 CommScope. All Rights Reserved.

  • Page 15: Cable Clamp Installation

    OSP CABLE ENTRANCE 24624-A REAR VIEW SCREW (2) GROMMET (SIZE DETERMINED YOKE (2) BY DIAMETER OF OSP CABLE) PLATE RIGHT SIDE OSP CABLE ENTRANCE Figure 15. Cable Clamp Assembly for OSP Cable Page 15 © 2018 CommScope. All Rights Reserved.

  • Page 16: Installing A Cable Clamp For Mpo Trunk Cable

    Note: This procedure requires use of the MPO trunk cable clamp kit, which can be ordered from CommScope using catalog # TFP-ACC002. This kit is required for routing MPO trunk cable in panels with MPO adapter packs. This kit may also be used for routing MPO trunk cable in panels with MPO cassettes, but the kit is not required for MPO cassette applications.

  • Page 17: Cable Routing Procedures

    IF NECESSARY, PULL EACH 900 MICRON FIBER FROM CORRECT LENGTH AT ADAPTER PACK STUB END OF SUBUNIT, TO CORRECT LENGTH TO 24626-A ELIMINATE SLACK AT ADAPTER PACK. Figure 17. Routing Pigtails from Right Side (Top View) Page 17 © 2018 CommScope. All Rights Reserved.

  • Page 18: Routing Osp Cable, Right Side Entry

    For right side cable entry, route the OSP cable from the cable clamp position to the splice tray as shown in Figure 19. Note that “right” is defined here from the perspective of the front of the panel. Page 18 © 2018 CommScope. All Rights Reserved.
  • Page 19 OUTSIDE OF SPLICE TRAY IS NOT REQUIRED RECOMMENDED BREAKOUT LENGTH - 120 INCHES USE HOOK-AND-LOOP STRAP (PROVIDED) TO SECURE SPLICE TRAY TO PANEL 24628-A Figure 19. Routing OSP Cable, Right Side Entry Page 19 © 2018 CommScope. All Rights Reserved.

  • Page 20: Routing Osp Cable, Left Side Entry

    OUTSIDE OF SPLICE TRAY IS NOT REQUIRED RECOMMENDED BREAKOUT LENGTH - 120 INCHES USE HOOK-AND-LOOP STRAP (PROVIDED) TO SECURE SPLICE TRAY TO PANEL 24629-A Figure 20. Routing OSP Cable, Left Side Entry Page 20 © 2018 CommScope. All Rights Reserved.

  • Page 21: Routing Pigtails And Osp Fibers In Splice Tray

    FROM ADAPTERS PIGTAIL FIBER ROUTING USE LACING TO SECURE SUBUNIT FIBERS PIGTAIL BREAKOUT SIDE 22066-A OSP FIBER ROUTING USE LACING TO SECURE SUBUNIT Figure 21. Routing Pigtails and OSP Fibers in Splice Tray Page 21 © 2018 CommScope. All Rights Reserved.

  • Page 22: Termination Only Panel Procedures

    TIE-DOWN TIE-DOWN POINT POINT 24630-A - DRAWER IN CLOSED POSITION NOTE: - TOP COVER NOT SHOWN, FOR CLARITY - REAR COVER REMOVED Figure 22. Routing OSP Cable, Right Side Entry (Adapter Packs) Page 22 © 2018 CommScope. All Rights Reserved.

  • Page 23: Routing Osp Cable, Left Side Entry (Adapter Cassettes)

    TIE-DOWN TIE-DOWN POINT POINT 24631-A - DRAWER IN CLOSED POSITION NOTE: - TOP COVER NOT SHOWN, FOR CLARITY - REAR COVER REMOVED Figure 23. Routing OSP Cable, Left Side Entry (MPO Cassettes) Page 23 © 2018 CommScope. All Rights Reserved.

  • Page 24: Routing Osp Cable, Left Side Entry (Mpo Cassettes)

    FOR LEFT SIDE ENTRY 23955-A - DRAWER IN CLOSED POSITION NOTE: - TOP COVER NOT SHOWN, FOR CLARITY - REAR COVER REMOVED Figure 24. Routing OSP Cable, Left Side Entry (MPO Cassettes) Page 24 © 2018 CommScope. All Rights Reserved.

  • Page 25: Routing Osp Cable, Right Side Entry (Mpo Cassettes)

    FOR RIGHT SIDE ENTRY 23956-A - DRAWER IN CLOSED POSITION NOTE: - TOP COVER NOT SHOWN, FOR CLARITY - REAR COVER REMOVED Figure 25. Routing OSP Cable, Right Side Entry (Adapter Packs) Page 25 © 2018 CommScope. All Rights Reserved.

  • Page 26: Mpo Termination Only Panel Procedures

    FOR RIGHT SIDE ENTRY 22180-A - DRAWER IN CLOSED POSITION NOTE: - TOP COVER NOT SHOWN, FOR CLARITY - REAR COVER REMOVED Figure 26. Routing MPO Trunk Cable, Right Side Entry (MPO Adapter Packs) Page 26 © 2018 CommScope. All Rights Reserved.

  • Page 27: Routing Mpo Trunk Cable, Left Side Entry (Mpo Adapter Packs)

    FOR LEFT SIDE ENTRY 22181-A - DRAWER IN CLOSED POSITION NOTE: - TOP COVER NOT SHOWN, FOR CLARITY - REAR COVER REMOVED Figure 27. Routing MPO Trunk Cable, Left Side Entry (MPO Adapter Packs) Page 27 © 2018 CommScope. All Rights Reserved.

  • Page 28: Contact Information

    ADCP-92-098 • Rev C • May 2018 5 CONTACT INFORMATION ® • To find out more about CommScope products, visit us on the web at www.commscope.com • For technical assistance, customer service, or to report any missing/damaged parts, visit us at http://www.commscope.com/SupportCenter...
