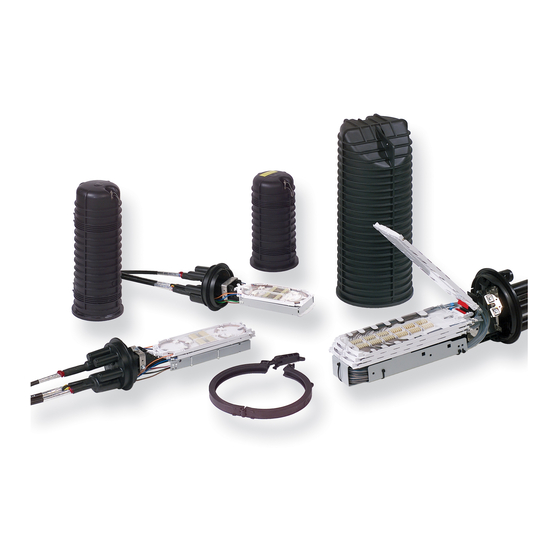

CommScope FOSC 400 ACC Closure 2/5 Drop Kit Installation Instruction

FOSC 400 ACC
Closure 2/5 Drop Kit
I N S T A L L A T I O N
Addendum
Kit Contents:
2 Drop:
• (2) SCOP's (Small Cable Overheat Protection)
• Cable port seal
• (2) Aluminum tape
• Tape abrasive
Figure 1
• Tie wraps
• 2ft ST (Small Transportation Tubing)
• Installation instruction
5 Drop:
• (5) SCOP's (Small Cable Overheat Protection)
• Cable port seal
• (5) Aluminum tape
• Tape Abrasive
• Tie wraps
• 5ft ST (Small Transportation Tubing)
• Installation instruction
Figure 2
Note: 5 Drop can not be used in the FOSC 400 A4, A8, or
B4 closure. It is recommended that it be used in the FOSC
400 D5 or B2 closure.
Installation Instructions:
1. Heat port to soften plastic for opening. (Figure 2)
2. Cut port with sheath knife. (Figure 3)
Figure 3
3. Clean and abrade port with tape abrasive. (Figure 4)
Figure 4
1
I N S T R U C T I O N
(Figure 1)
