Summary of Contents for DFI RM101-OOB

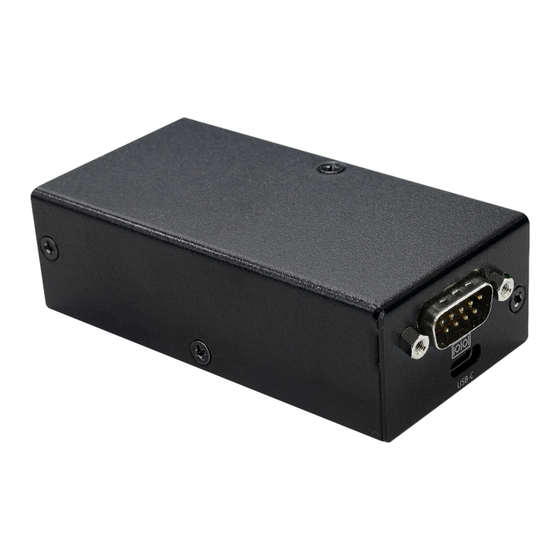

- Page 1 RM101-OOB RM101 Out Of Band Module Compact BMC (cBMC) User’s Manual...
-
Page 2: Fcc And Doc Statement On Class B
Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules. -
Page 3: Table Of Contents
RM101 cBMC .......................... 5 Chapter 2 - Getting Started ......................6 Hardware Requirements ......................6 System Requirements ......................6 How To Connect RM101-OOB To A Carrier Board............... 9 Pin Assignment ........................9 OOB Normal Boot ........................10 Default Password Setting ....................10 Remote Control PC Power On/Off ..................17... -
Page 4: About This Manual
About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage. -
Page 5: Chapter 1 - Introduction
► Recovery (Factory Mode) SPI ROM BIOS ► Remote BIOS setup & uefi shell (serial over lan) ► Remote BIOS update SOL & DFI USB-Storage RJ45 ► Change OOB IP address Lan Connector User's Manual | RM101 Out Of Band Module Compact BMC... -
Page 6: Chapter 2 - Getting Started
Step 2: X System Requirements ■ The remote PC can remotely control the DFI system which installed OOB feature. Remote PC and DFI system shall be in the same network domain ■ To avoid setting OOB’s power_button.sh as a power on/off function, please make sure to choose ‘shut down’... - Page 7 Chapter 2 GETTING STARTED Step 7: Step 4: Step 5: Step 8: Step 6: User's Manual | RM101 Out Of Band Module Compact BMC...
- Page 8 Chapter 2 GETTING STARTED Step 9: Setup "RNDIS" IP address for windows remote desktop connection Open Windows Settings -> Network & Internet -> Ethenet -> Change adapter options Step 10: Select "RNDIS" device and change IP User's Manual | RM101 Out Of Band Module Compact BMC...
-
Page 9: How To Connect Rm101-Oob To A Carrier Board
Chapter 2 GETTING STARTED X How To Connect RM101-OOB To A Carrier Board X Pin Assignment Please follow the corresponding numeral to connect each cable between RM101-OOB and a carrier board as pictures shown below. Assignment Assignment • SYS_RST_N I2C0_SDA... -
Page 10: Oob Normal Boot
For example 2: 000129110000-1 --> 00012910FFFF Note: For every system recovery of RM101-OOB, please follow the instruction below. Once the green LED is on, press and hold the recovery key within 15 seconds. The green LED light starts blinking for a few seconds until the light stays back on. - Page 11 Setup Lan IP Address - Open Network Status go to Advanced network settings and click Change adapter options, double click Ethernet. Note: Remote PC and DFI system shall be in the same network domain. User's Manual | RM101 Out Of Band Module Compact BMC...
- Page 12 When you enter a default password in Command Prompt, it doesn't appear or show up on the screen. After entering the password, you will see DFI. Then type in /DFI # When it displays you may now start typing in commands for each function. User's Manual | RM101 Out Of Band Module Compact BMC...
-
Page 13: Change Password
Chapter 2 GETTING STARTED Change Password To change the default password, please follow the instructions below. Please make sure to log out OOB before changing the password. Step 1: Step 2: Execute windows Command Prompt. Enter the command below. To run the command prompt: ssh root@192.168.10.100 "passwd root"... - Page 14 Chapter 2 GETTING STARTED Use SSH key Pair Login Step 2: Step 1: Please obtain a default password before logging in, and type in the information as follows: Execute windows Command Prompt. C:\users\user name> : ssh root@192.168.10.100 "mkdir -p ~/.ssh && chmod 700 ~/.ssh" To run the command prompt: ■...
- Page 15 Chapter 2 GETTING STARTED Step 3: Please enter the command as follows: • Use SSH key Pair Login - Change A Path and Create A Filename scp C:\Users\test\.ssh\id_rsa.pub root@192.168.10.100:~/.ssh/authorized_keys And then enter the password. You can also type in a path location where you want to save the file and create a file name. For example : Note: Please enter the command as follows:...
- Page 16 Chapter 2 GETTING STARTED Step 1: Step 2: Please obtain a default password before logging in, and type in the information as follows: Please enter the command as follows: C:\users\user name> : ssh root@192.168.10.100 "mkdir -p ~/.ssh && chmod 700 ~/.ssh" scp C:\Users\test\.ssh\a4-1c-b4-0a-b0-6a.
-
Page 17: Remote Control Pc Power On/Off
Chapter 2 GETTING STARTED X Remote Control PC Power On/Off WIFI/4G LTE USB Host Module uSD/eMMC (Option) USB Clint (FW update & USB Gadget) GPIO (Power button, Reset button, SLP_S3 RM101 UART (Console Re-direction) cBMC SPI ROM BIOS RJ45 Lan Connector User's Manual | RM101 Out Of Band Module Compact BMC... -
Page 18: Pc Power On/Off Status Check
Chapter 2 GETTING STARTED Turn On/Off PC Remotely PC Power On/Off Status Check After the status check, you can control PC power on/off remotely. Please complete Default Password Setting - Step 4 before entering the following command. Please complete Default Password Setting - Step 4 before entering the following command. -
Page 19: Perform A Timed Force Shutdown
Chapter 2 GETTING STARTED PC Rebooting Perform a Timed Force Shutdown To reboot the PC, please type in the following command. To forcibly shut down the PC, please type in the following command. You will hear a single beep, it means PC rebooted successfully. Please complete Default Password Setting - Step 4 before entering the following command. -
Page 20: Using Usb Storage / Microsd Card To Run Actions
Chapter 2 GETTING STARTED X Using USB Storage / MicroSD Card to run actions The shell scripts for USB storage Please execute the following commands to switch between the USB flash drive and the mi- croSD card for the device operations. To insert a USB flash drive, please execute a shell script as following: ./insert_usb_storage.sh Shell Script :... -
Page 21: Remote Bios Update (Via Teraterm)
Chapter 3 REMOTE BIOS UPDATE X Remote BIOS Update (Via Teraterm) ・ ・ Remote BIOS Update (SOL & DFI USB-Storage) Remote BIOS Setup & UEFI shell (Serial Over Lan) WIFI/4G LTE USB Host Module WIFI/4G LTE USB Host USB Virtual Disk... -
Page 22: Check Bios Set Up From Usb Storage
TeraTerm is already included in the DFI system. After successfully booting to OOB, you will see a USB flash drive in the DFI system. Please copy the teraterm folder from the USB flash drive to the computer where you want to operate the OOB. - Page 23 How to Access BIOS Setup Menu When Power on If the DFI system is power on which installed OOB, executing power_button.sh script to off/on the system. The script must be executed twice, first is for powering off the system, second is for powering on the system.
- Page 24 Chapter 3 REMOTE BIOS UPDATE Step 4: Please contact technical support or your sales representative for the files and specific instruc- tions about how to update BIOS with the flash utility. When there is no error message displayed, the BIOS update will be completed successfully. User's Manual | RM101 Out Of Band Module Compact BMC...
-
Page 25: Chapter 4 - Oob Ip Address Change
Typing in following command and you will see a message to ask for a new IP address. (For example: 192.168.10.88) ssh root@192.168.10.100 ./DFI/ipconfig.sh Shell Script : Press Enter and close the current window since it is frozen and unable to operate. -
Page 26: Console Redirection
Chapter 4 OOB IP ADDRESS CHANGE X Console Redirection The old IP address After the IP address changes, Console Redirection is unable to run commands. To fix the problme, please navigate to Teraterm folder and look for a TTL file named 'telnet.ttl.' This file needs to be modified.
