Uplus Lighting S1000 User Manual

Hide thumbs

Advertisement

Table of Contents

User manual
S1000
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting S1000

Summary of Contents for Uplus Lighting S1000

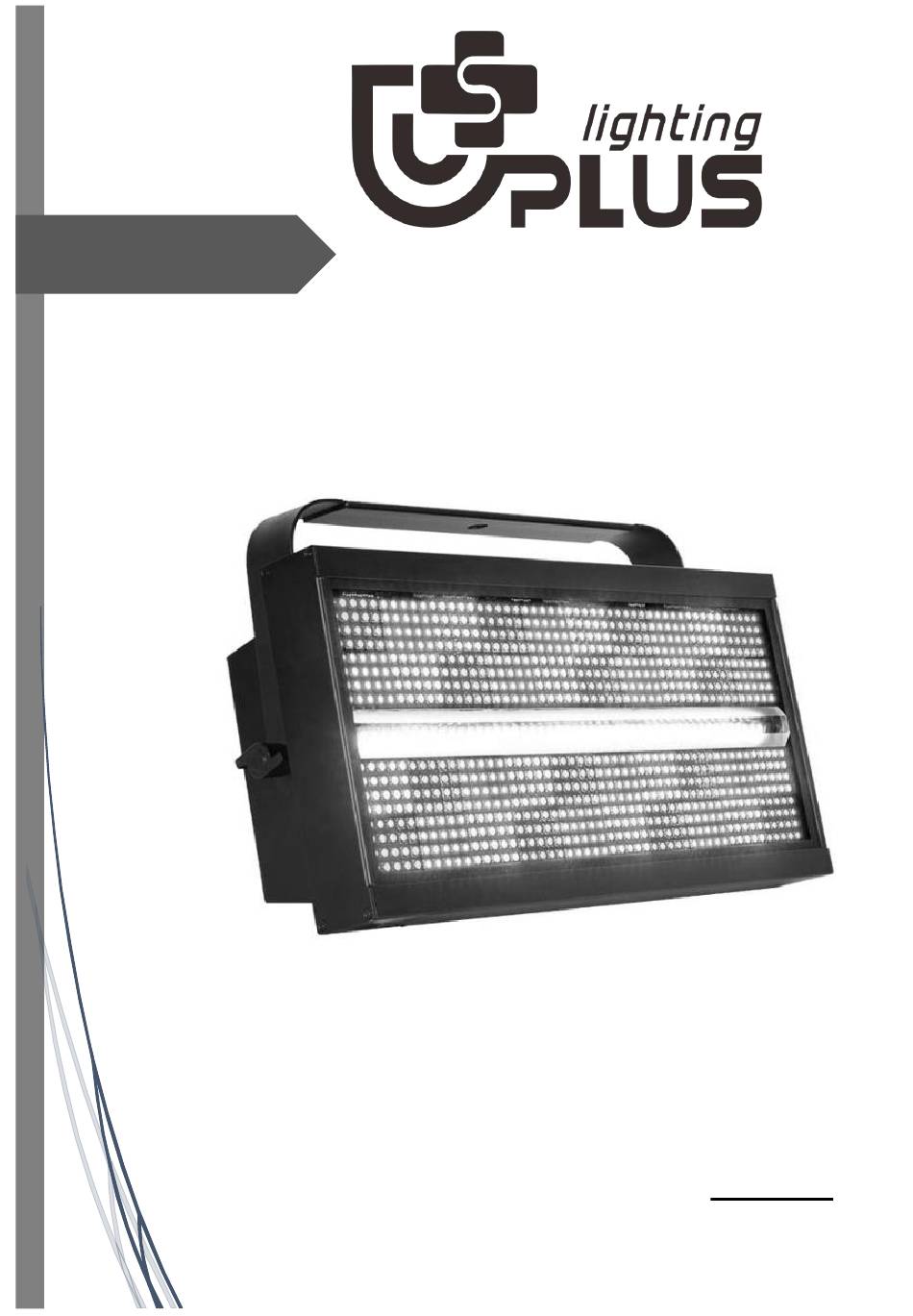

  • Page 1 User manual S1000 Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ……………………………………………………………………………………7-11 Trouble Shooting…………………………………………………………………………………12 Fixture Cleaning………………………………………………………… ………………………12 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...

  • Page 4: Technical Specifications

    •The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

  • Page 5: Control Menu

    3.Control Menu Menu Description 1 - 507 (6ch) 1 - 504 (9ch) 1 - 500 (13ch) 1 - 495 (18ch) DMX Address 1 - 477 (36ch) 1 - 472 (41ch) 1 - 387 (126ch) 1 - 372 (141ch) 13CH 18CH DMX Channel Mode 36CH 41CH...
  • Page 6 Linear Square Dimmer Curve Inv. Sq. S-Curve Display Backlight Off - 2 min Display Display Lock Off - 10 min Display Invert No / Yes Temperature Unit °C / °F Fan Speed High Auto Red1 (000 - 255) Green1 (000 - 255) Blue1 (000 - 255) White Balance Red2...

  • Page 7: Dmx Channels

    4.DMX Channels 6, 9, 13, 18, 36, 41, 126 and 141 channels CHANNEL FUNCTION VALUES 000 - 255 Outer Red, 0% to 100% 000 - 255 Outer Green, 0% to 100% 000 - 255 Outer Blue, 0% to 100% 000 - 255 Inner White, 0% to 100% 000 - 255 Inner White Group 1...
  • Page 8 066 - 075 Macro7 076 - 085 Macro8 086 - 095 Macro9 096 - 105 Macro10 106 - 115 Macro11 116 - 125 Macro12 126 - 135 Macro13 136 - 145 Macro14 146 - 155 Macro15 156 - 165 Macro16 166 - 175 Macro17 176 - 185...
  • Page 9 000 - 255 Red 1 000 - 255 Green 1 000 - 255 Blue 1 000 - 255 Red 2 000 - 255 Green 2 000 - 255 Blue 2 000 - 255 Red 3 000 - 255 Green 3 000 - 255 Blue 3 000 - 255...
  • Page 10 000 - 255 Green 16 000 - 255 Blue 16 000 - 255 Red 17 000 - 255 Green 17 000 - 255 Blue 17 000 - 255 Red 18 000 - 255 Green 18 000 - 255 Blue 18 000 - 255 Red 19 000 - 255...
  • Page 11 000 - 255 Blue 31 000 - 255 Red 32 000 - 255 Green 32 000 - 255 Blue 32 000 - 255 Red 33 000 - 255 Green 33 000 - 255 Blue 33 000 - 255 Red 34 000 - 255 Green 34 000 - 255...

  • Page 12: Trouble Shooting

    5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
