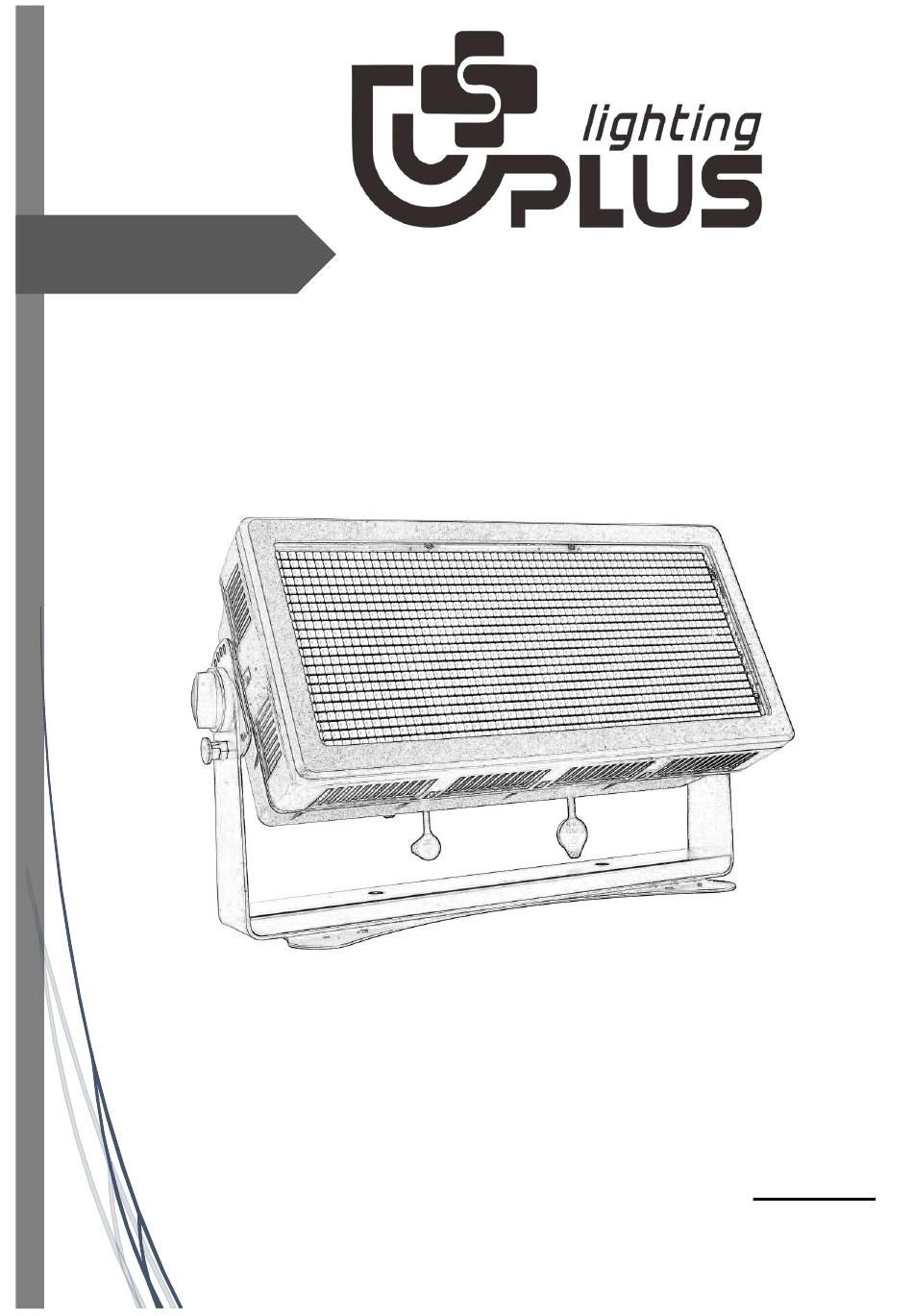

- Page 1 User manual S3000 Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications………………………………………………………………………4 Control Menu ……………………………………………………………………………………5 DMX Channels ……………………………………………………………………………………6-7 Trouble Shooting…………………………………………………………………………………8 Fixture Cleaning………………………………………………………… ………………………8 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 5: Control Menu
3.DMX Channels Menu Description Menu Address 0~512 Down 512~0 7/8/13/15/31 optional, press ENTER Channel button to confirm. Monitor CH1-7/1-8/1-13/1-15/1-31 Auto Auto 00- Auto 36 Effect On Auto Dimmer Value 0-255 Strobe Speed 0-255 Mas mode Slave Master Back.L ON/60S/120S/300S Temp Temp 1 Temp 2 Info... - Page 6 4.DMX Channels 7Channel mode Channel DMX Value Description 0-255 Dimmer 0-255 Intensity of Flash 0-255 Flash 0-255 Random strobe 0-255 Special effect 0-255 Speed of effect 0-255 Color presets 8 Channel mode Channel DMX Value Description 0-255 Dimmer 0-255 0-255 Green 0-255 Blue...
- Page 7 0-255 Flash 0-255 Random strobe 0-255 Special effect CH10 0-255 Speed of effect CH11 0-255 Color presets CH12 0-255 Red background CH13 0-255 Green background CH14 0-255 Blue background CH15 0-255 White background 31 Channel mode Channel DMX Value Description 0-255 Dimmer 0-255...
-
Page 8: Trouble Shooting
5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
