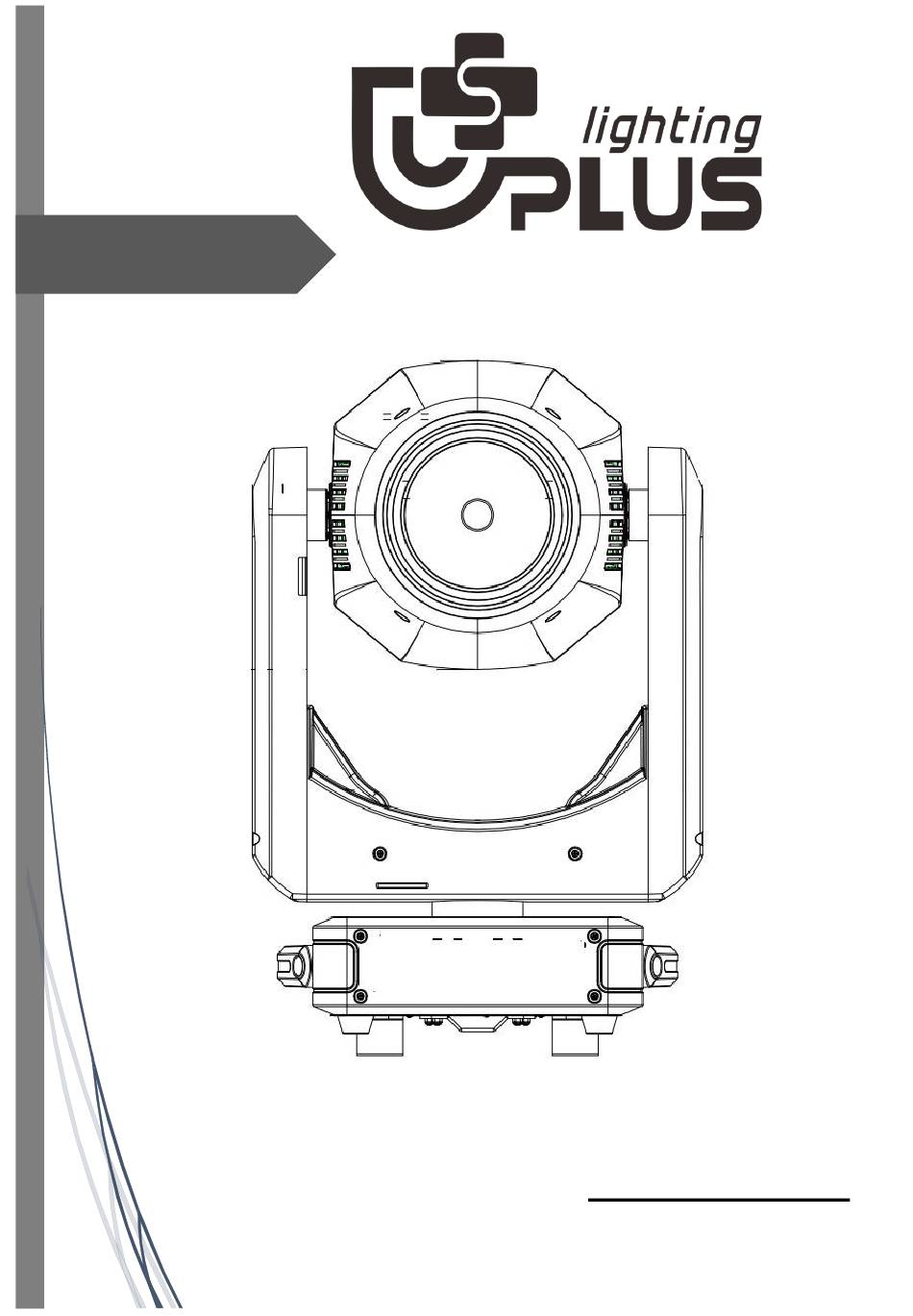

- Page 1 User manual 460LED BSW Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions………………………………………………………………………………3 2. Technical Specifications…………………………………………………………………………4 3. DMX Channels ……………………………………………………………………………………5-10 4. LUX Date ……………………………………………………………………………………………10 5. Dimension …………………………………………………………………………………………11 6. Trouble Shooting…………………………………………………………………………………12 7. Fixture Cleaning………………………………………………………… ………………………12 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications

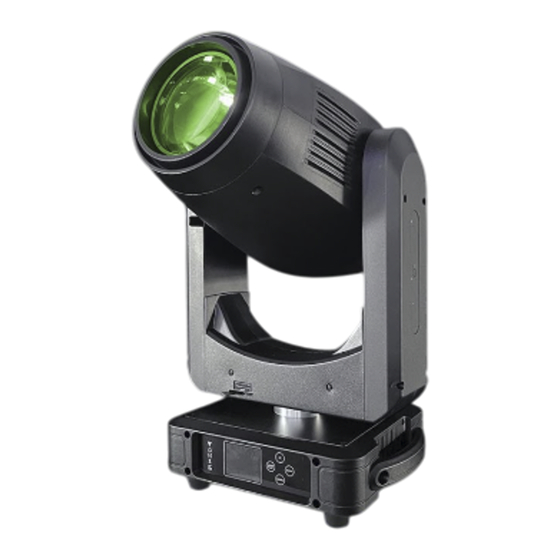

2.Technical Specifications 460W LED BSW 3-in-1 moving head Optics: Source:460W white LED Life:>30000H Zoom angle:6°-42° Input power:550W AC100-240V 50-60HZ Pan movement:540°/630° optional(16bit) Tilt movement:270°(16bit) Advanced motion system:auto repositioning,fast,quiet and smooth Color: CMY+CTO color mixing system 1 color plate: 7 fixed color plates + white light Gobo: 1 effect plate (fire plate) 1 rotating gobo wheel: 7 gobos+white 1 fixed pattern plate: 8 pattern pieces + white... -
Page 5: Dmx Channels
3.DMX Channels DMX channel´ s functions and values (25/36DMX channels) Mode DMX Value Function Illustration CH 25 CH 36 Pan Movement 8bit: Pan Movement 0－255 Pan Fine 16bit: 0－255 Fine control of Pan movement Tilt Movement 8bit: 0－255 Tilt Movement Tilt Fine 16bit 0－255 Fine control of Tilt movement... - Page 6 70-79 Colour 7 80-89 Colour 8 90-99 Colour 9 100-109 Colour 10 110-119 Colour 11 120-129 Colour 12 130-139 Colour 13 140-149 Colour 14 150-159 Colour 15 160-204 Fast rotation - slow rotation 205-210 Stop 211-255 Slow rotation - fast rotation Color Fine 0－255 Linear...
- Page 7 154－204 205－255 Auto Focus fine: 0－255 Continuous adjustment fine Color Wheel: 0－15 Open 16－22 Open/Color 1 23－29 Color 1 30－36 Color 1 / Color 2 37－43 Color 2 44 － 50 Color 2 / Color 3 51 － 57 Color 3 58 －...
- Page 8 0－255 CTO fine Rotating gobos.cont,rotation 1: 0－7 Open 8－20 Rot.gobo 1 21－33 Rot.gobo 2 34－46 Rot.gobo 3 47－59 Rot.gobo 4 60－72 Rot.gobo 5 73－85 Rot.gobo 6 86－98 Rot.gobo 7 99－111 Gobo 1 shake slow to fast 112－124 Gobo 2 shake slow to fast 125－137 Gobo 3 shake slow to fast 138－150...
- Page 9 140－149 Gobo 5 shake slow to fast 150－159 Gobo 6 shake slow to fast 160－169 Gobo 7 shake slow to fast 170－179 Gobo 8 shake slow to fast 180－189 Gobo 9 shake slow to fast 190－221 Gobo wheel rotation forwards from fast to slow 222－223 No rotation 224－255...
-
Page 10: Lux Date
110－119 S Curve 120－129 unused 130－139 Unused 140－149 Unused 150－159 All motor reset 160－169 Scan motor reset 170－179 Colors motor reset 180－189 Gobo motor reset 190－199 Other motor reset 200－255 unused 4.LUX Date... -
Page 11: Dimension
5.Dimension... -
Page 12: Trouble Shooting
6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
