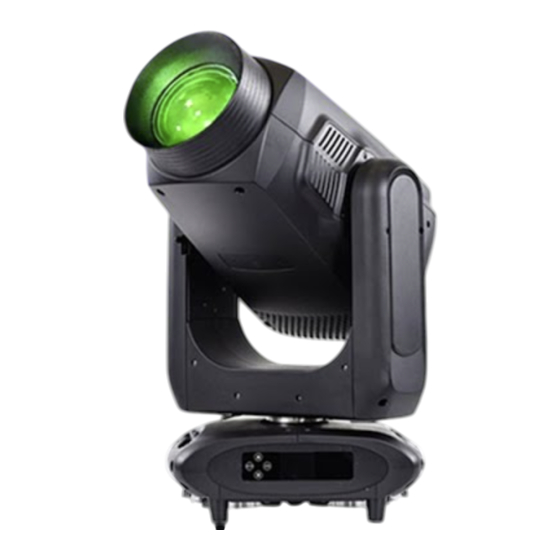

- Page 1 User manual 750 BSWF Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 2. Technical Specifications………………………………………………………………………4-5 3. Description…………………………………………………………………………………………5 4. LED Light Source…………………………………………………………………………………6 5. Control Menu ……………………………………………………………………………………6-8 6. Universal DMX controller control……………………………………………………………8-9 7. DMX Channels …………………………………………………………………………………10-14 8. Dimension…………………………………………………………………………………………15 9. Trouble Shooting…………………………………………………………………………………16 10. Fixture Cleaning………………………………………………………… ………………………16 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 5: Description
white circles; 2.With pattern jitter and pattern arbitrary positioning function. Magnetic positioning function, convenient for initial position correction and maintenance Prism: Prism 1: 4Prisms, Prism 2: Six-sided gradient mirror； It can be rotated and superimposed in both directions, and has a prism positioning function. Atomization: 2 atomizing films, which can be switched independently or superimposed to use light、... -
Page 6: Led Light Source
4.LED Light Source The ultraviolet light emitted by the LED light source is harmful to the eyes and skin. Please do not look directly at the lamp when it is running. 1. In order to protect the lamp, when turning off the lamp, please turn off the LED light source first, and then disconnect the power supply after running for at least 5 minutes. - Page 7 53（CH） Reduced mode 37（CH） Level View current channel ..0-255 Function/Reset DMX/Self-propelled/Voice Mode selection control/Scenes Self-propelled Scene selection ..Scene selection 01-10 Scene time 01.X axis 0-255 Scene selection 0-255 Operating Manual control of lamps 53.Reset/ mode 0-255 Function automatic/ Master-slave selection Slave/ Host...
-
Page 8: Universal Dmx Controller Control
Equipment maintenance times Equipment fine-tuning Application and calibration service Device data clear Equipment usage record 5.2.Error message Temperature error The temperature detection board may be damaged. Fan error The fan and its control part may be broken Magnetic error For the magnetic sensitive function part may be broken. Optocoupler error The optocoupler and its control part may be broken. - Page 9 in parallel. DMX512 signal transmission speed is very fast. Damage to the signal line, weak soldering, poor contact, etc., will affect the signal transmission and cause the system to shut down 3. When the machine power supply of a certain unit is disconnected, the connection of DMX output and input is bypassed in order to maintain the connection of the DMX line.
-
Page 10: Dmx Channels
7.DMX Channels Standard Reduced mode mode Channel name Channel value Function 53（CH） 37（CH） Level 000-255 0-540° Level 000-255 16bit adjustable fine-tuning vertical 000-255 0-270° Vertical fine-tuning 000-255 16bit adjustable XY Speed 000-255 From fast to slow Dimming 000-255 Light spot from dark to bright Dimming fine- 000-255 16bit adjustable... - Page 11 87-94 blue+yellow 95-102 yellow+rose red 103-110 rose red+fluorescence 111-119 fluorescence+white 120-185 Reverse rainbow, from fast to slow 186-189 stop 190-255 Positive rainbow, from slow to fast white 7-13 gobo1 14-20 gobo2 21-27 gobo3 28-34 gobo4 35-41 gobo5 42-48 gobo6 49-55 gobo7 56-63 gobo8...
- Page 12 54-63 gobo6 64-73 gobo 1 jitter effect,from slow to fast 74-82 gobo 2 jitter effect, from slow to fast 83-91 gobo 3 jitter effect, from slow to fast 92-100 gobo 4 jitter effect,from slow to fast 101-109 gobo 5 jitter effect, from slow to fast 110-118 gobo 6 jitter effect,from slow to fast 119-127...
- Page 13 aperture 0-255 From big to small White Atomization1 7-255 Atomization 1 effect White Atomization2 7-255 Atomization 2 effect No function CRI Clip 8-255 CRI effect focusing 0-255 From far to near Focus fine 0-255 16bit Adjustable adjustment no effect 0-255 enlarge 0-255 From small to large...
- Page 14 Cutting group 3 0-255 16bit Adjustable motor 2 fine-tuning Cutting group 4 0-255 0-100% stroke motor 1 Cutting group 4 motor 1 fine 0-255 16bit Adjustable adjustment Cutting group 4 0-255 0-100% stroke motor 2 Cutting group 4 motor 2 fine 0-255 16bit Adjustable adjustment...
-
Page 15: Dimension
8.Dimension... -
Page 16: Trouble Shooting
9.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
