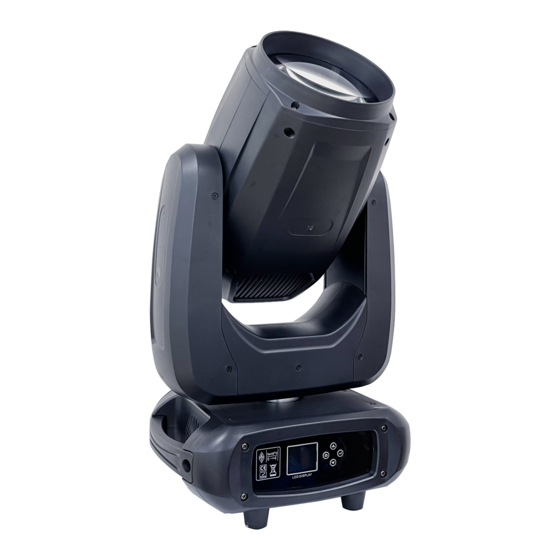

- Page 1 User manual 250 LED BEAM Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels …………………………………………………………………………………6-11 Trouble Shooting…………………………………………………………………………………11 Fixture Cleaning………………………………………………………… ………………………11 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals. -
Page 5: Control Menu
3.Control Menu Menu Operation On the base of the control panel offers a number of features, such as setting DMX fixture address, switch the lamp, run the test program, the mode selection. MAIN SECOND THIRD Dmx Address 1 - 512 Dmx Mode STD/EXT Run Mode... -
Page 6: Dmx Channels
Password 0 - 255 0 - 255 Tilt 0 - 255 Factory Dimmer 0 - 255 Color 0 - 255 FixGobo 0 - 255 ⁞ ⁞ XY reset Off/Run Motor reset Off/Run Reset All Reset Off/Run Factory Off/Run Language CH/EN Display Display Flip Normal / Reverse... - Page 7 100-104 color 10 105-109 color 10+color 11 110-114 color 11 115-119 color 11+color 12 CH 1 Color 120-124 color 12 125-129 color 12+White 130-189 FAST ROTATION - SLOW ROTATION 190-194 STOP 195－255 SLOW ROTATION - FAST ROTATION close 4-103 strobe from slow to fast 104-107 Opening CH 2...
- Page 8 183-190 Gobo 14 Jitter CH 4 Gobo 191-220 FAST ROTATION - SLOW ROTATION 221-225 Stop 226-255 SLOW ROTATION - FAST ROTATION 0－127 Reserve Prism CH 5 128-255 prism Insert 0－127 Rotation 128－190 FAST ROTATION - SLOW ROTATION Prism Rot CH 6 191－192 stop 193－255...
- Page 9 85-89 color 8+color 9 90-94 color 9 95-99 color 9+color 10 100-104 color 10 105-109 color 10+color 11 110-114 color 11 115-119 color 11+color 12 CH 1 Color 120-124 color 12 125-129 color 12+White 130-189 FAST ROTATION - SLOW ROTATION 190-194 STOP 195－255...
- Page 10 159-166 Gobo 11 Jitter 167-174 Gobo 12 Jitter 175-182 Gobo 13 Jitter 183-190 Gobo 14 Jitter CH 4 Gobo 191-220 FAST ROTATION - SLOW ROTATION 221-225 Stop 226-255 SLOW ROTATION - FAST ROTATION 0－127 Reserve Prism CH 5 128-255 prism Insert 0－127 Rotation 128－190...
-
Page 11: Trouble Shooting
5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
