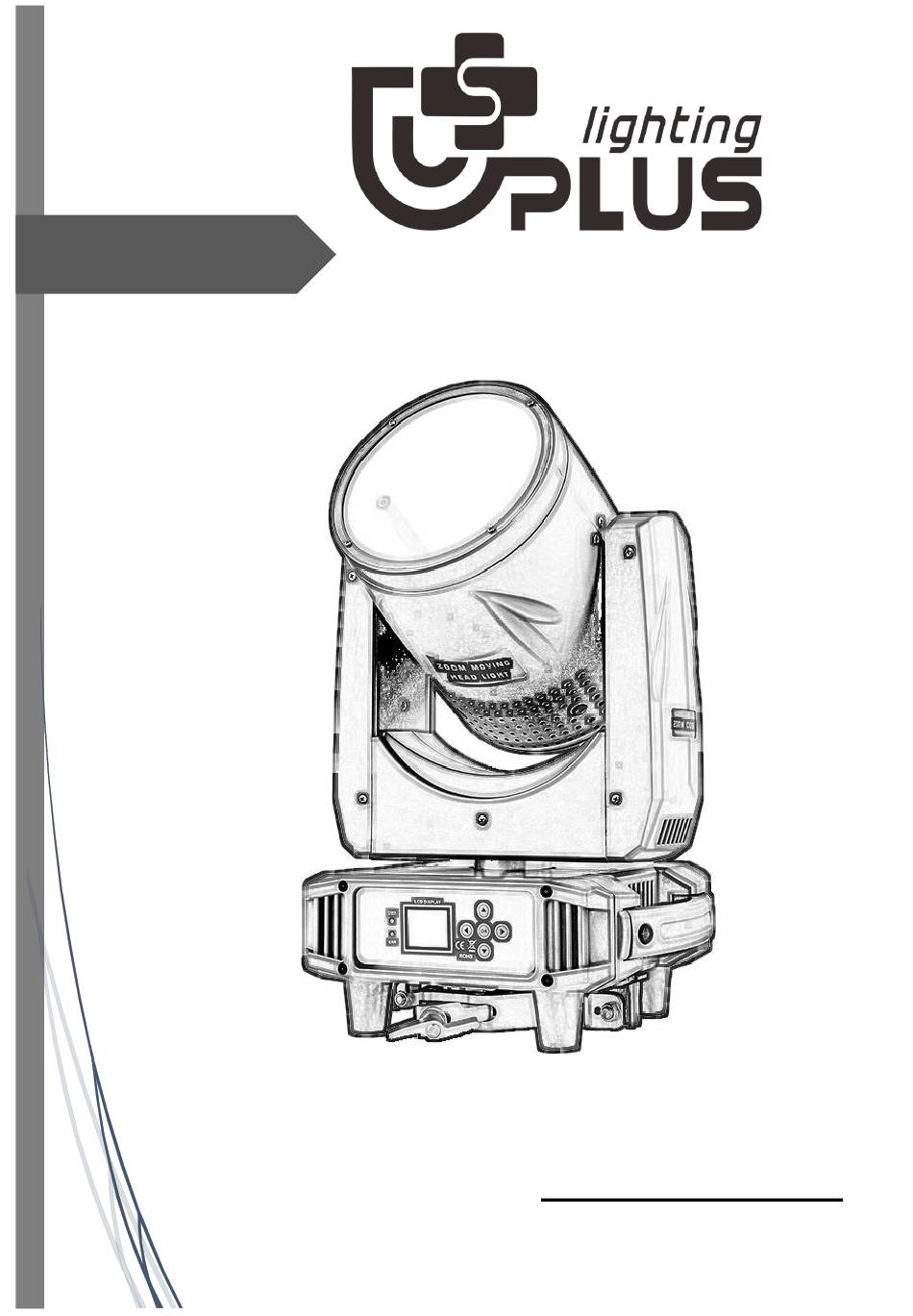

- Page 1 User manual COB400 ZOOM Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 2. Technical Specifications…………………………………………………………………………4 3. Control Menu ………………………………………………………………………………………5 4. DMX Channels ……………………………………………………………………………………6 5. Trouble Shooting…………………………………………………………………………………6 6. Fixture Cleaning………………………………………………………… ………………………7 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
- Page 4 firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
- Page 5 3.Control Menu Operation method touch wheel function turn left option/edit down turn right option/edit OK / Enter press the wheel Executive start / exit return when return menu ,press the wheel return previous page Set ”Modify address code” as an example, tell about the using of the touch. 1.
- Page 6 4.DMX Channels 10 Channel mode Channel Name DMX Value Description 0-255 Pan Movement Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Movement Tilt Fine 0-255 Tilt Fine P/T SPEED 0-255 P/T SPEED ZOOM 0-255 ZOOM 0-255 Change Color temperature (2600-6500K) Dimmer 0-255 Dimmer from dark to bright...
- Page 7 6.Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid.
