Summary of Contents for Uplus Lighting IP1000 Strobe

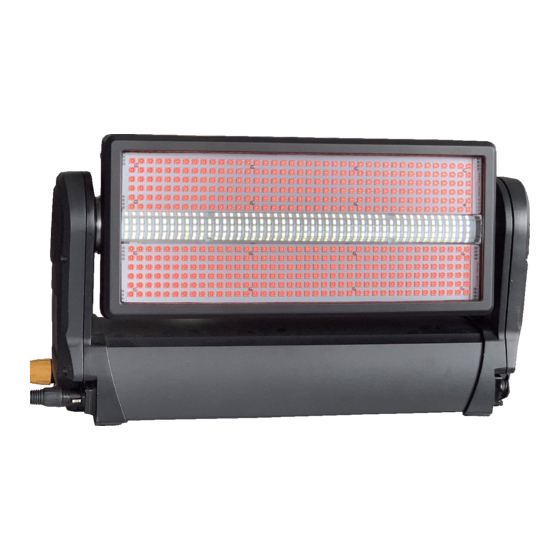

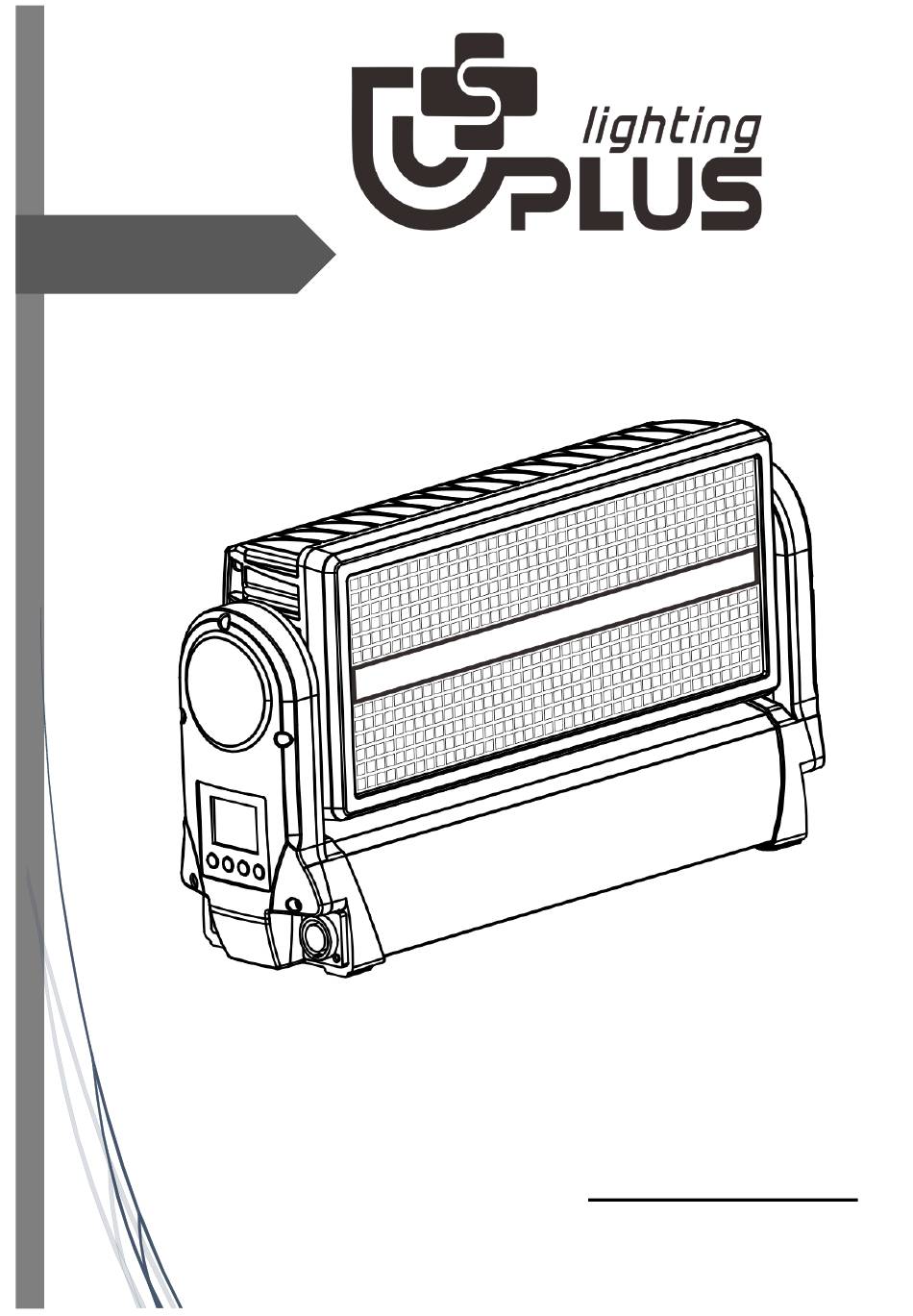

- Page 1 User manual IP1000 Strobe Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 2. Technical Specifications………………………………………………………………………4-5 3. Control Menu ……………………………………………………………………………………5-6 4. DMX Channels …………………………………………………………………………………7-11 5. Dimension…………………………………………………………………………………………12 6. Trouble Shooting…………………………………………………………………………………12 7. Fixture Cleaning………………………………………………………… ………………………13 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 5: Control Menu
Power: 1000W Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating Position: any Mounting Options Hanging: Omega-Bracket Safety wire attachment: foldout eyelets Shipping Single fixture: cardboard (inner and outer cartons) Tourpack: 4-way Flight Case Housing Colors Standard colors: black Dimensions Length: 482 mm / 18.9 in Width: 178 mm / 9.0 in... - Page 6 Level 1 Level 2 Description DMX Address 001-512 Set DMX address Address DMX_CH7 7 channels DMX mode DMX_CH14 14 channels DMX mode Channel DMX_CH42 42 channels DMX mode Mode DMX_CH15 15 channels DMX mode DMX_CH43 43 channels DMX mode DIM1 Dimmer mode 1 DIM2 Dimmer mode 2...
-
Page 7: Dmx Channels
4.DMX Channels 7 Channel mode Channel Name Description Value Tilt 0-255 Tilt Movement Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5 215-255 Strobe Mode 6... - Page 8 14 Channel mode Channel Name Description Value Tilt 0-255 Tilt Movement Tilt Fine 0-255 Tilt Fine Movement Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5...
- Page 9 15 Channel mode Channel Name Description Value Tilt 0-255 Tilt Movement Tilt Fine 0-255 Tilt Fine Movement Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5...
- Page 10 42 Channel mode Channel Name Description Value Tilt 0-255 Tilt Movement Tilt Fine 0-255 Tilt Fine Movement Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5...
- Page 11 43 Channel mode Channel Name DMX Value Description Tilt 0-255 Tilt Movement Tilt Fine 0-255 Tilt Fine Movement Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214...
-
Page 12: Dimension
5.Dimension 6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. -
Page 13: Fixture Cleaning
7.Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid.
