Uplus Lighting BSW 350 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual
BSW 350
Please read the instructions carefully before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the BSW 350 and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting BSW 350

Summary of Contents for Uplus Lighting BSW 350

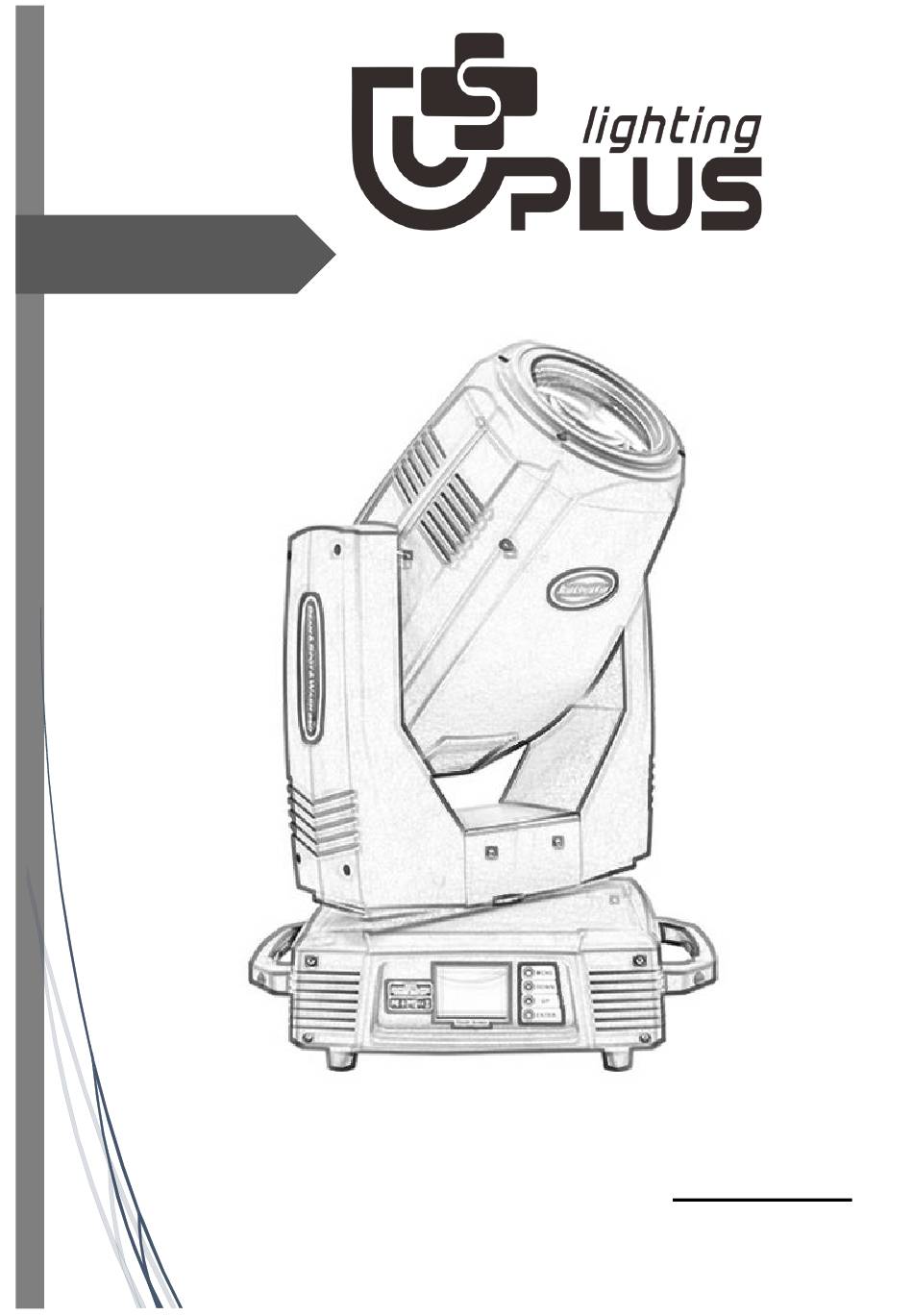

  • Page 1 User manual BSW 350 Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 2. Technical Specifications…………………………………………………………………………4 3. Control Menu ……………………………………………………………………………………5-6 4. DMX Channels ……………………………………………………………………………………7-10 5. Trouble Shooting…………………………………………………………………………………11 6. Fixture Cleaning………………………………………………………… ………………………11 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.

  • Page 4: Technical Specifications

    firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

  • Page 5: Control Menu

    3.Control Menu Menu Operation On the base of the control panel offers a number of features, such as setting DMX fixture address, switch the lamp, run the test program, the mode selection. DMX Address 001-512 Simple mode 16CH DMX Mode Standard mode 24CH Pan Inverse Tilt Inverse...
  • Page 6 Rotating Gobo 0-255 Rot Gobo 0-255 Rot Gobo Fine 0-255 Prism 0-255 Prism Rot 0-255 Frost 0-255 Zoom 0-255 Zoom Fine 0-255 Focus 0-255 Focus Fine 0-255 Auto Focus 0-255 Shutter 0-255 Dimmer 0-255 Dimmer Fine 0-255 Exit Infor Factory Passwords 158 Lamp Status Lamp...

  • Page 7: Dmx Channels

    4.DMX Channels Model - CH16/CH24 CH24 CH16 DMX Value Function 0－255 0－255 Pan Low 0－255 Tilt 0－255 Tilt Low 0－255 P/T Speed Macro function 0－19 Reserve 20－24 230W power 25-29 350W power 30-49 Reserve 50-59 Reserve 60-69 Reserve 70-79 P/T Rotate Off Light 80-89 P/T Rotate On Light 90-99...
  • Page 8 162-166 Colour 8 167-171 Colour 9 172-176 Colour 10 177-180 Colour 11 181-185 Colour 12 186-189 Colour 13 FAST ROTATION - SLOW 190-220 ROTATION 221-224 STOP SLOW ROTATION - FAST 225-255 ROTATION 0-255 Reserve Gobo 1 white Gobo 1 10-15 Gobo 2 16-21 Gobo 3...
  • Page 9 200-201 white FAST ROTATION - SLOW 202-227 ROTATION 228-229 STOP SLOW ROTATION - FAST 230-255 ROTATION Gobo 2 S white L white Gobo 2 -1 9-12 Gobo 2 -2 13-16 Gobo 2 -3 17-20 Gobo 2 -4 21-24 Gobo 2 -5 25-28 Gobo 2 -6 29-32...
  • Page 10 0-63 empty 64-127 Prism-1 128-191 Prism-2 192-255 Prism-1/Prism-2 Prism-1/Rot 0－127 Rotation FAST ROTATION - SLOW 128－189 ROTATION 190－192 STOP SLOW ROTATION - FAST 193－255 ROTATION Prism-2/Rot 0－127 Rotation FAST ROTATION - SLOW 128－189 ROTATION 190－192 STOP SLOW ROTATION - FAST 193－255 ROTATION Frost...

  • Page 11: Trouble Shooting

    5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
