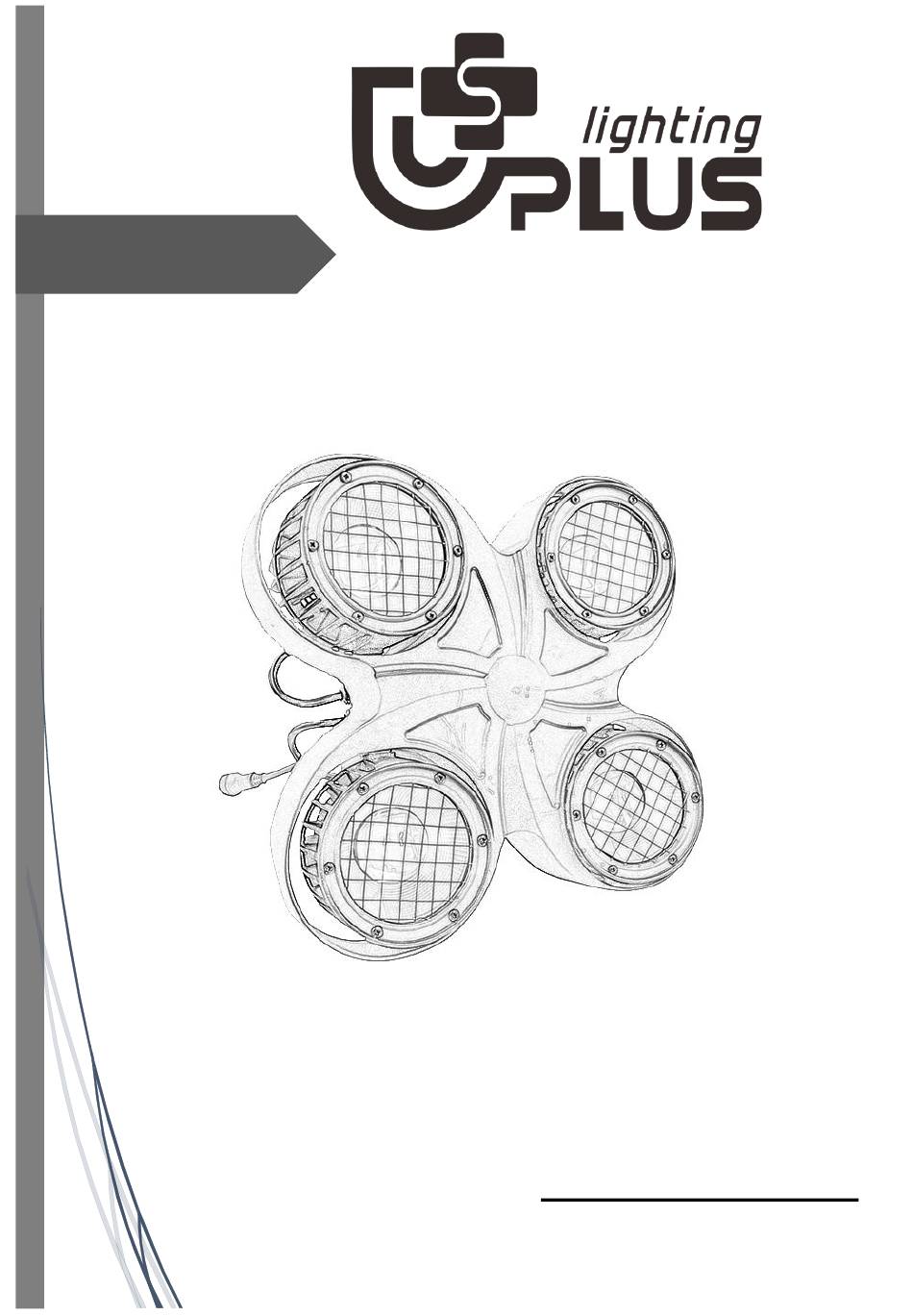

- Page 1 User manual 400 IP BLINDER Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 2. Technical Specifications…………………………………………………………………………4 3. Control Menu ………………………………………………………………………………………5 4. DMX Channels ………………………………………………………………………………………6 5. Trouble Shooting……………………………………………………………………………………7 6. Fixture Cleaning………………………………………………………… …………………………7 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
- Page 4 firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
- Page 5 3.Control Menu Display: The operating instructions:according to the function keys A will cycle out eight different function effect, digital tube top two number represents the current in the function(see table)function.After two number represents the function in the address or speed,parameters.According to B or C key can change the parameters,press D key confirmation.
- Page 6 4.DMX Channels DMX Channels(8 channels) Channels Function Explain NO.1 Total dimming RGBW total dimming,from dark to bright NO.2 W1 Dimming W1 Dimming,from dark to bright NO.3 W2 Dimming W2 Dimming,from dark to bright NO.4 W3 Dimming W3 Dimming,from dark to bright NO.5 W4 Dimming W4 Dimming,from dark to bright...
- Page 7 5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
