Fits: 2009-2015 Dodge Ram 1500 Quad Cab 6.5' Standard Bed
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver Front Mounting Bracket
1
Driver Front Support Bracket
1
Driver Center Mounting Bracket
2
Passenger Front and Center Mounting Brackets
1
Driver Rear Mounting Bracket
1
Passenger Rear Mounting Bracket
6
12mm Plastic Retainers
6
12mm x 35mm Bolt x 10mm Nut Plates
5
12mm x 32mm OD x 3mm Flat Washers
5
12mm Lock Washers
Passenger/
Right Rear
Bracket
Passenger/Right
Front and Center
Brackets
PROCEDURE:
1.
Starting at the driver side-front of the vehicle, remove the sealing tape covering the factory holes on the side of the inner panel,
(Figure 1).
2.
Determine the correct procedure to attach the driver side front Bracket for your model/year:
Models without factory threaded inserts in body panel:
Page 1 of 6

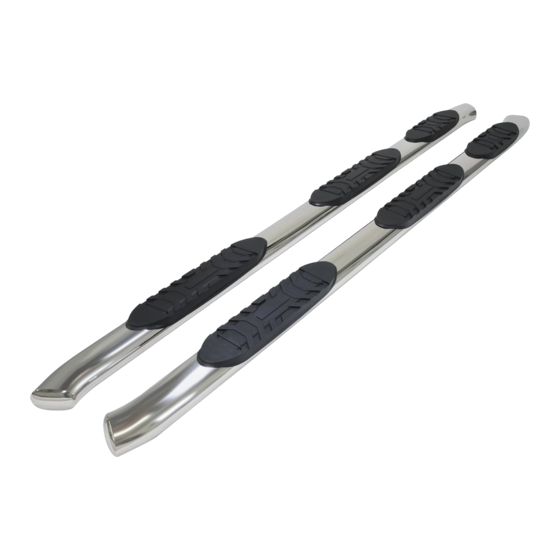

5" Oval W2W Nerf Bar
Part No. A7059S/B
Part Description
Passenger/Right Sidebar
PARTS LIST:
Qty
5
12mm Hex Nuts
6
10-1.5mm x 35mm Hex Bolts
6
10mm x 27mm OD x 3mm Flat Washers
6
10mm Lock Washers
7
8mm-1.25 x 30 Hex Bolt
12
8mm-1.25 x 25mm Hex Bolts
20
8mm x 24mm x 2mm Flat Washers
18
8mm Lock Washers
1
8mm Nylon Lock Nuts
2
6mm x 25mm Hex Bolts
4
6mm x 22mm x 2mm Flat Washers
2
6mm Nylon Lock Nuts
(6) 12mm x 35mm Bolt x 10mm
Nut Plates
(6) Plastic Retainers
Driver/Left Front
Mounting Bracket
www.TrailFX.com
CUTTING NOT
60-180 min
REQUIRED
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Front
Support Bracket
Front
DRILLING
REQUIRED
Driver/Left
Rear
Bracket
Drive/Left
Center Bracket
Rev 092215
Advertisement
Table of Contents
Related Manuals for TrailFX A7059S
Summary of Contents for TrailFX A7059S

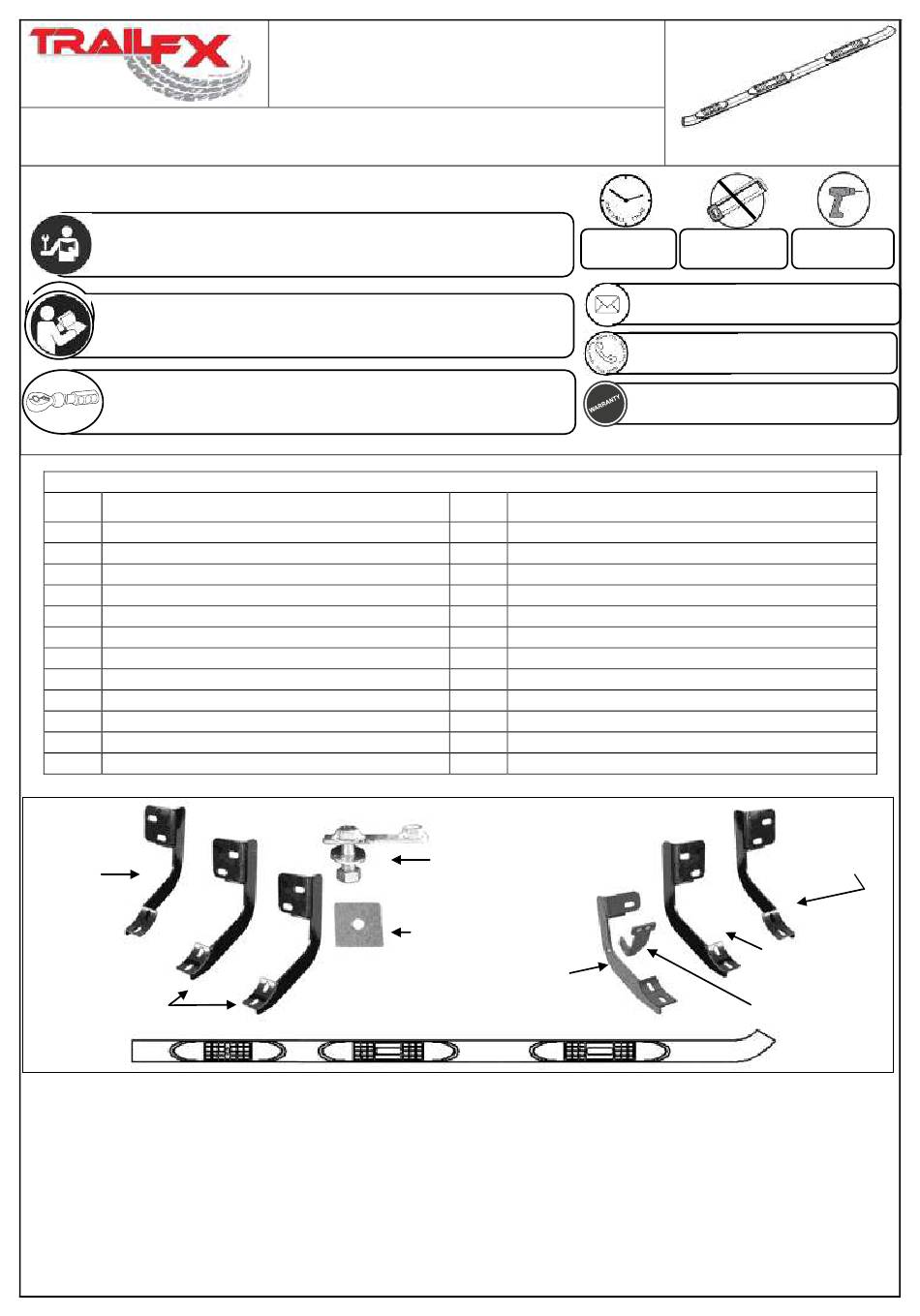

- Page 1 5" Oval W2W Nerf Bar Part No. A7059S/B Fits: 2009-2015 Dodge Ram 1500 Quad Cab 6.5' Standard Bed REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. DRILLING CUTTING NOT 60-180 min REQUIRED REQUIRED support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 Partially thread a 12mm Plastic Retainer onto the threaded end of a 12mm Bolt and Nut Plate, (Figure 2). Insert the Bolt and Nut Plate into the oval hole and tighten the Plastic Retainer, (Figure 3). NOTE: The Plastic Retainer is designed to keep the Bolt/Nut Plate from falling into the body panel and to aid in Bracket installation.
- Page 3 Driver Side Installation Pictured 12mm x 40mm Bolt/10mm Nut Plate Rotate Bolt/Nut Plate to line up correct 12mm Plastic Retainer threaded hole with body panel and hole in Mounting Bracket (see arrow) Front Front (Fig 3) Driver side front 2011-mid 2015.
- Page 4 Driver Side Installation Pictured Models without threaded insert using Bolt/Nut Plate, use: 10mm x 35mm Hex Bolt 10mm Lock Washer 10mm Flat Washer Front Models with threaded insert use: 8mm x 30mm Hex Bolt 8mm Lock Washer 8mm Flat Washer...
- Page 5 12mm Flat Washer Models without threaded IMPORTANT: The rear 12mm Lock Washer insert using Bolt/Nut Mounting Brackets look 12mm Hex Nut Plate, use: similar to the front and 10mm x 35mm Hex Bolt 10mm Lock Washer center brackets but they are 10mm Flat Washer unique.
- Page 6 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
