PPEVTEST

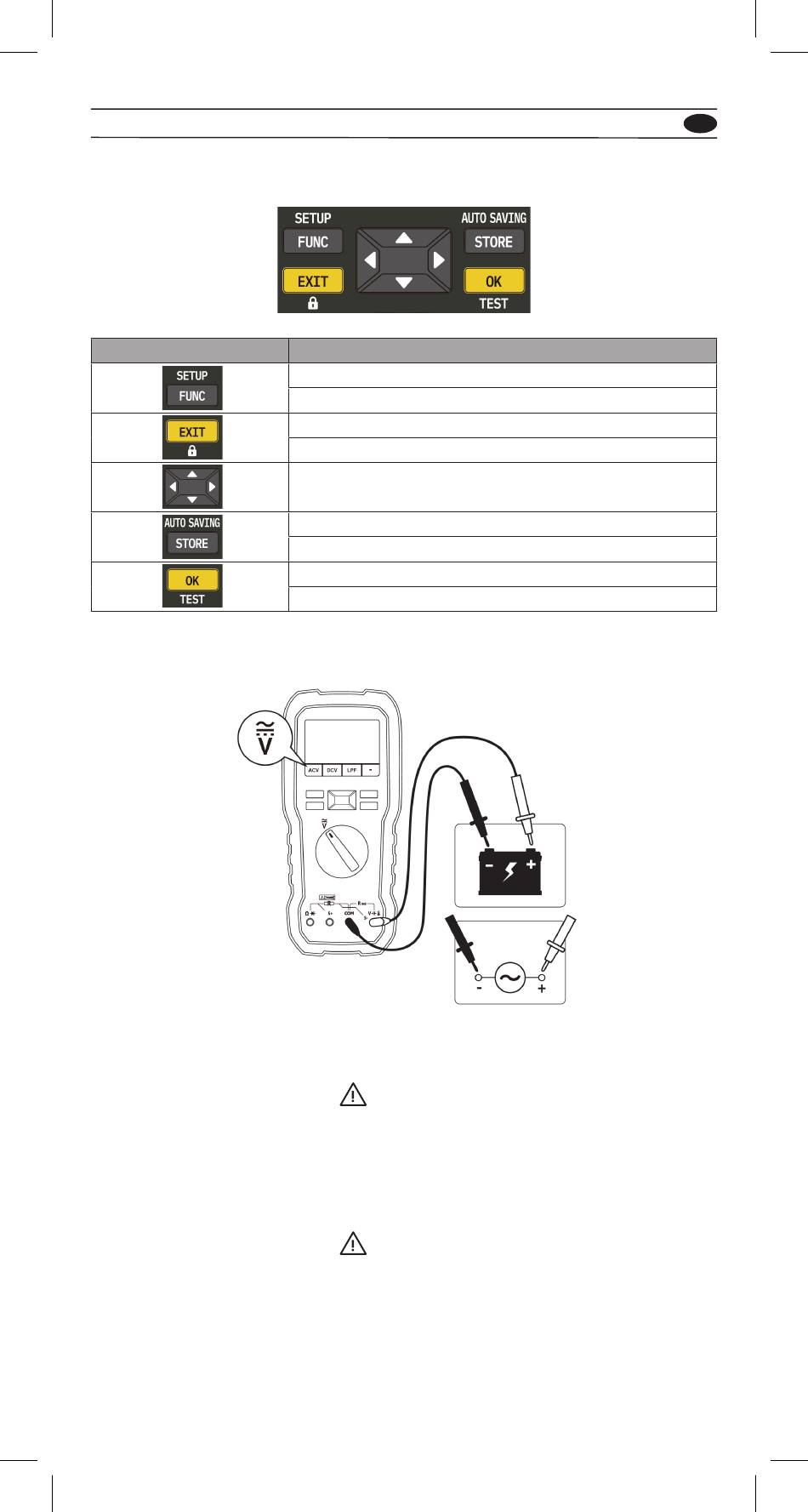

The Key Description
Keys
Measuring Voltage
Press the left/right Button to select measuring Mode after pressing the "FUNC" button
short into the function menu and at the end press the "OK" button short to confirm.
When connecting the test leads to the DUT (Device Under Test) connect the common
test leads before connecting the live leads; When removing the test leads, remove the
test live leads before removing the common test leads. Don't apply more than AC/DC
1000V between the V-COM terminals.
Do not use the High Frequency Rejection (Low Pass Filter) to verify the presence of
hazardous voltages. Voltages greater than what is indicated may be present. First,
make a voltage measurement without the filter to detect the possible presence of
hazardous voltage. Then select the filter function.
Press short to show the function menu.
Press long to into set up mode.
Press short to EXIT/Return.
Press long to go into LOCK mode (Continuous output).
Arrow keys.
Press short to store the current reading.
Press long into auto-saving mode.
Press short to ack an OK.
Press long outputs the current/voltage to test.
WARNING
WARNING
4
Description
EN
