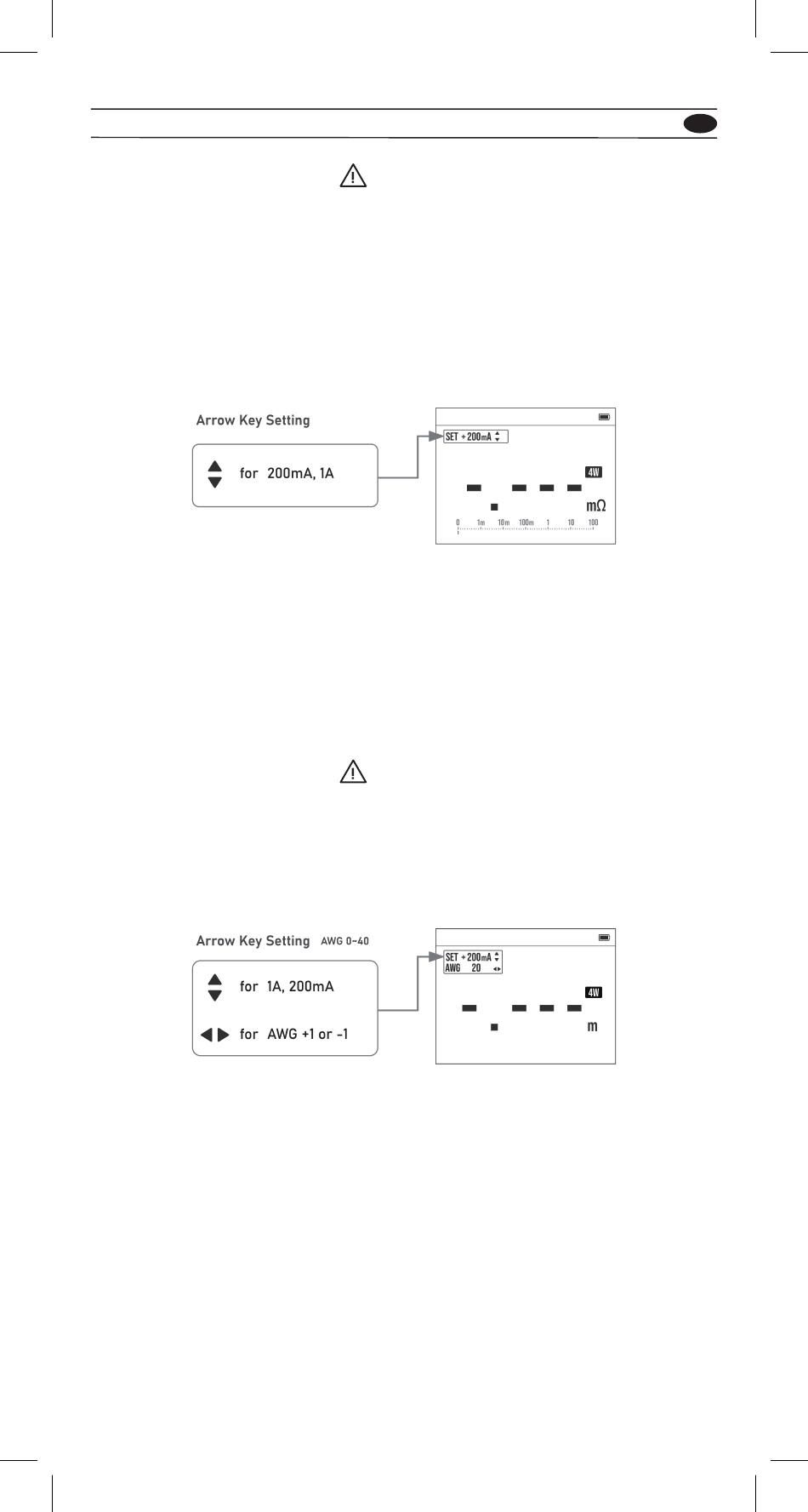

Power Probe PPEVTEST User Manual page 11

PPEVTEST
The circuit under test must be completely de-energized.
1. Before starting the test:
(a) Check the fuse is good. See the chapter "Testing the fuse".
(b) Set up the output current level.
2. Lock mode : Press the "Lock" button > 2sec to enter the Lock Mode. Then press the
"TEST" button >2 Sec to start the test. The test voltage will continue to be applied
until the "TEST" button is pressed again.
3. ZERO mode : After shorting the test probe, wait for the reading to stabilize before
starting to zero.
4. The meter displays the ">" symbol and the maximum resistance for the range when
measured resistance is higher than the maximum display range.
Measuring Wire length
The circuit under test must be completely de-energized.
1. Before starting the test:
(a) Check the fuse is good. See the chapter "Testing the fuse".
(b) Set up the output current level and the AWG value of the wires.
2. Lock mode: Press the "Lock" button > 2sec to enter the Lock Mode. Then press the
"TEST" button >2 Sec to start the test. The test voltage will continue to be applied
until the "TEST" button is pressed again.
3. ZERO mode: After shorting the test probe, wait for the reading to stabilize before
starting to zero.
4. The meter displays the " > " symbol and the maximum length for the range when
measured length is higher than the maximum display range.
