PPEVTEST
4. Stop the output test voltage before removing the test leads (to enable the tester to
discharge capacitive circuits).
5. If the screen displays volts, wait until it reaches zero.
6. The meter displays the ">" symbol and the maximum resistance for the range when
measured resistance is higher than the maximum display range.

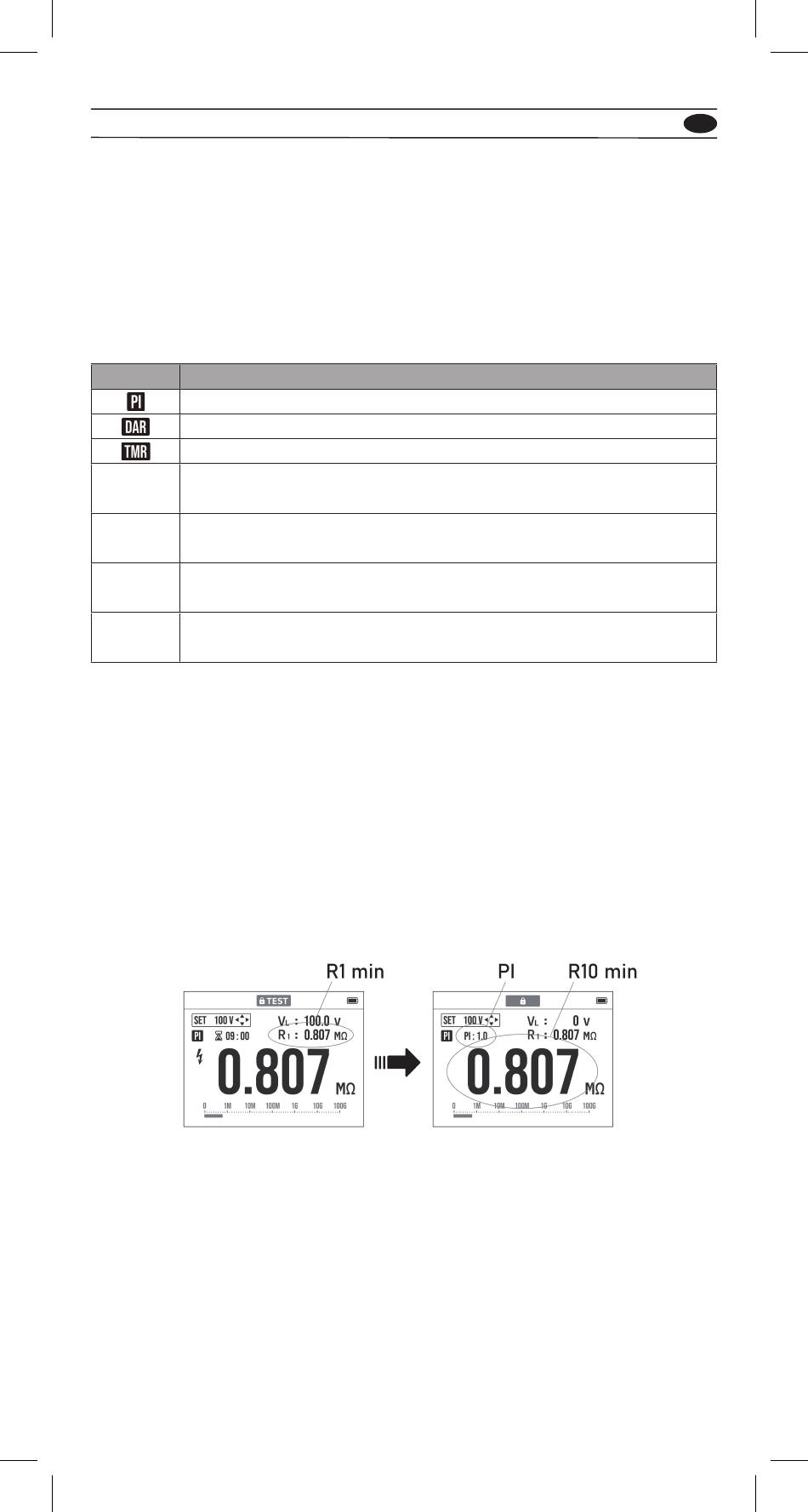

About display symbols:
Symbols
Polarization Index=R
Dielectric Absorption Rations=R
Countdown timer
The measured reading of insulation resistance at 10 minutes after
R
starting measuring.
10
The measured reading of insulation resistance at 1 minute after starting
R
measuring.
1
The measured reading of insulation resistance at 30 seconds after
R
starting measuring.
30
The measured reading of insulation resistance at 15 seconds after
R
starting measuring.
15
If the reading for DAR is bigger than 1.3 or PI is bigger than 2, it indicates a good
insulation quality.
When the measured resistance is higher than the maximum range, the screen will
display a "----" reading for the PI/DAR value.
NOTE : R
or R
can be set in setup mode
30
15
NOTE : Countdown time interval can be set in setup mode
Show the measured reading after the PI test is completed
Directions
/R
10
1
/ (R
or R
1
30
11
)
15
EN
