PPDRAW
User Manual / MANUAL DEL USUARIO
Manuel d'utilisation / Benutzer-Handbuch
使用者手冊 / 使用者手册 / ユーザー マニュアル
Draw Monitor
EN
Medidor de corrientes parásitas en baterías
ES
Testeur de drain parasite dans les batteries
FR
Parasitäres Abflussmessgerät in Batterien
DE
車用電能監測器
TC
车用电能监测器
SC
モーター電気エネルギーモニター
JP
Advertisement
Related Manuals for Power Probe PPDRAW
Summary of Contents for Power Probe PPDRAW

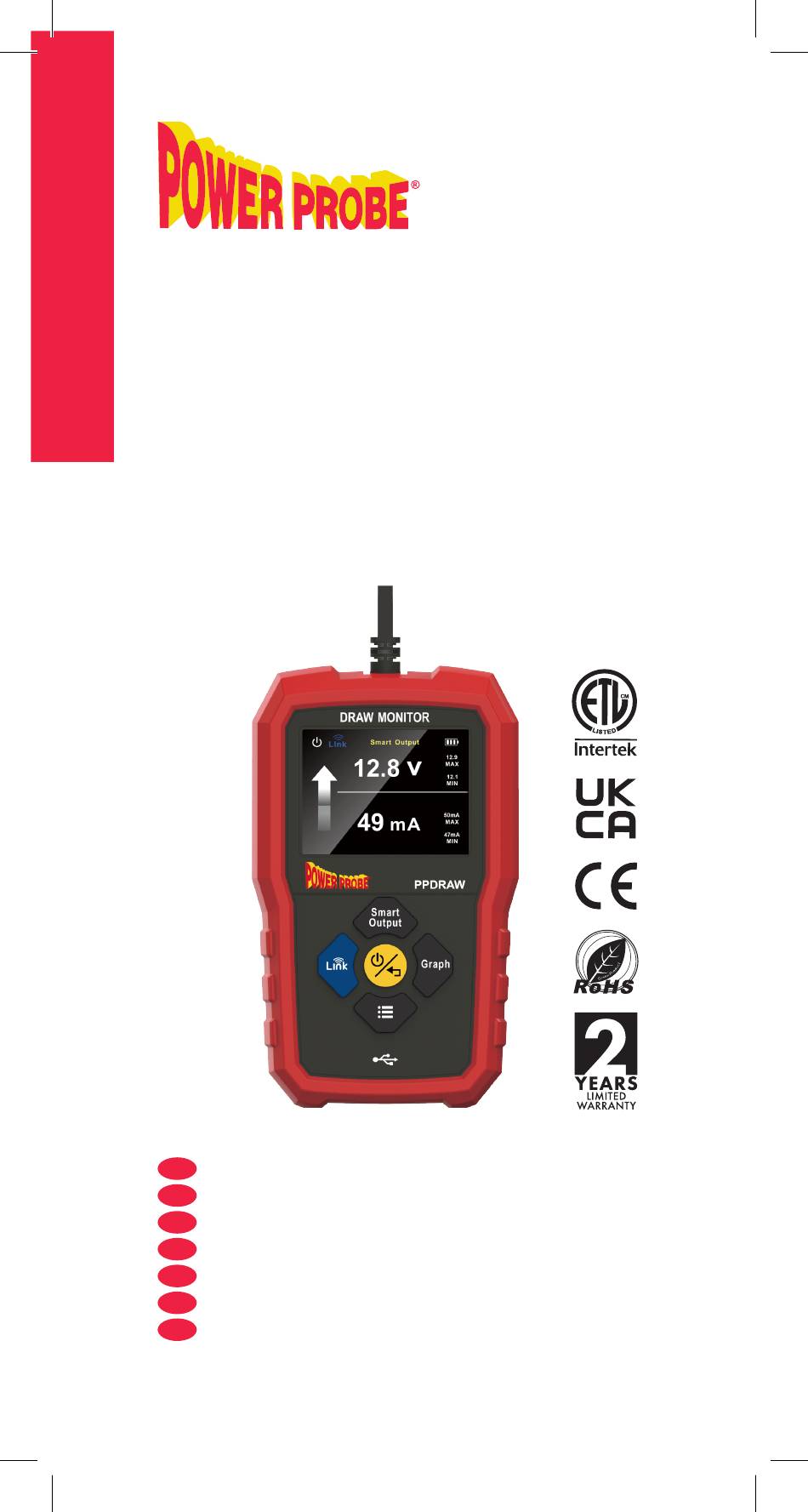

- Page 1 PPDRAW User Manual / MANUAL DEL USUARIO Manuel d'utilisation / Benutzer-Handbuch 使用者手冊 / 使用者手册 / ユーザー マニュアル Draw Monitor Medidor de corrientes parásitas en baterías Testeur de drain parasite dans les batteries Parasitäres Abflussmessgerät in Batterien 車用電能監測器 车用电能监测器 モーター電気エネルギーモニター...
- Page 2 PPDRAW I . Introduction of Product Functions Welcome to use our company's Draw Monitor product. This product is designed for use in monitoring car battery voltage, leakage current, and serving as a backup power supply when replacing the battery. The product is connected to the car's OBDII interface via an OBDII connection cable to supply 12V power to the car and monitor the car system's leakage current for diagnosing various faults.
- Page 3 PPDRAW II . Appearance, Button Definition, and Icons OBD II Cable TFT Screen Smart Output Button Link Button Power/Return Button Graph Button Menu Button USB Type-C Charge Port III . Operation Instructions 1. Power On/Off When the device is powered off, long press the power button to turn it on, and long press the power button to turn it off when it is powered on.
- Page 4 To reset the Min/Max amperage values during a draw test, simply press the Power/ Return button and the values will reset. IV. Measuring Parasitic Draw Step #1: Press and hold power button to turn on PPDRAW. Step #2: Connect the PPDRAW to the vehicle’s OBDII interface via the PPDRAW OBDII cable.
- Page 5 Select the Smart Output function by pressing the Smart Output button on the PPDRAW. The PPDRAW should display an arrow on the left of the display screen indicating the PPDRAW is now providing power from the internal battery of the PPDRAW to the...
- Page 6 After the vehicle’s battery is disconnected, all power to the vehicle is now supplied from the PPDRAW internal battery and the PPDRAW will display the total parasitic draw to the vehicle. (Make sure all vehicle doors are closed and no lights are left on to ensure all modules go to sleep and the tool displays an accurate reading).
- Page 7 After testing is completed, first reconnect the vehicle’s battery before disabling Smart Output or disconnecting the PPDRAW from the vehicle. NOTE: Follow steps carefully to avoid any power interruptions while disconnecting and reconnecting the vehicle’s battery. The PPDRAW can also function as a Memory Saver during battery replacements. V . Precautions 1.
- Page 8 6. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. 7. While PPDRAW MONITOR is stil on the OBD circuit, it is necessary to ensure that the battery voltage of the car greater than 12V before connecting the battery to the car’s circuit.
- Page 9 PPDRAW Battery Life 10 minutes under 10A output condition. Charge Type DC 5V/1.5A (Option: DC 12V/1.5A) Operating Temperature 0°C to 50 °C (≤ 80% R.H.) Storage Temperature -20°C to 60 °C (≤ 80% R.H., no batteries) Operating Altitude 2000m (6562 ft)
- Page 10 Parque Empresarial de Argame CL Picu Castiellu i1-i4 33163 Morcín, Asturias, Spain Imported in UK by: Power Probe Group Limited C/O Warwick House Queen Street 65-66 EC4R 1EB, London 700032282 JAN 2025 V4 All rights reserved. Specifications are subject to change without notification.
