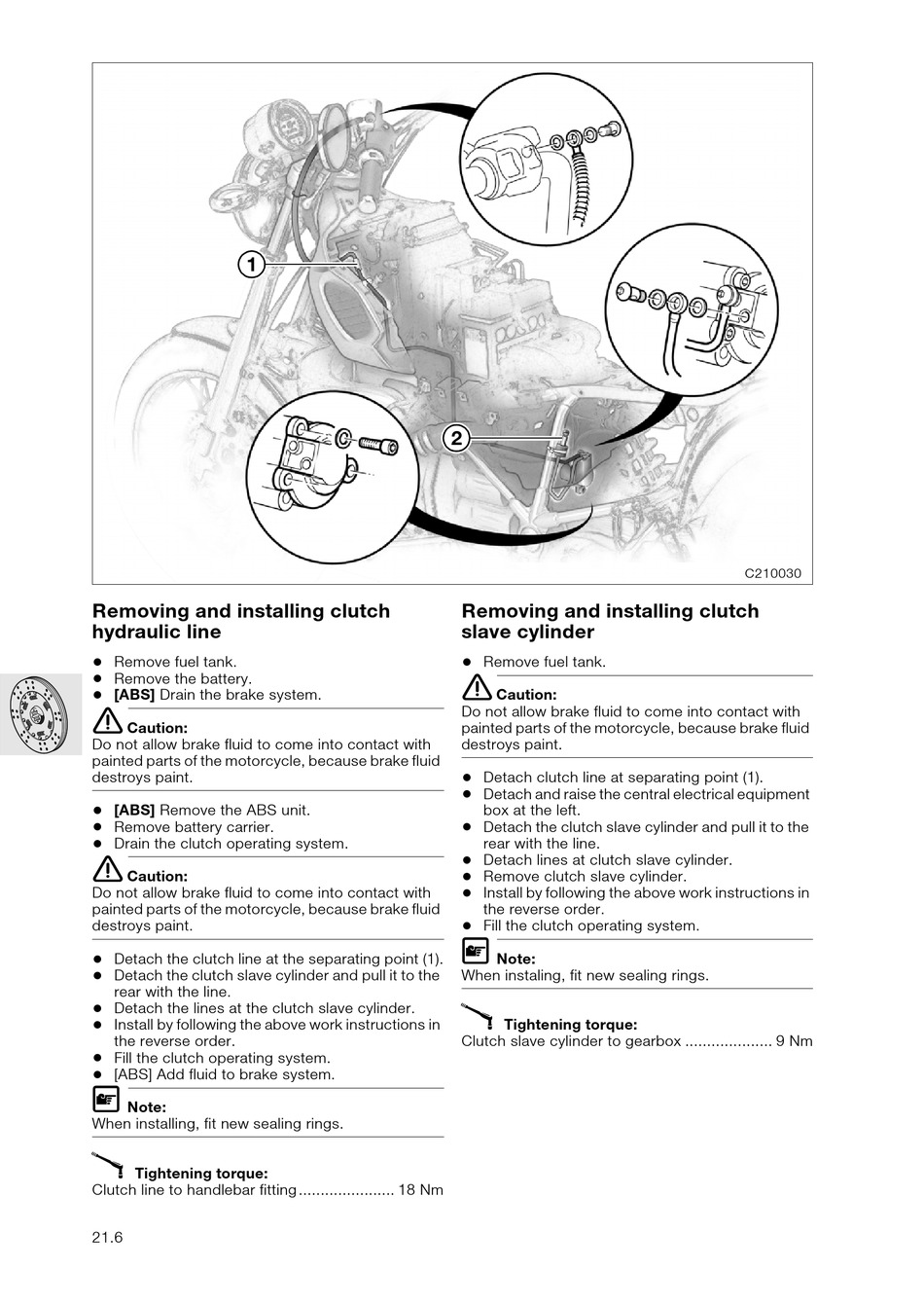

Removing and installing clutch
hydraulic line
•
Remove fuel tank.
•
Remove the battery.
•
[ABS] Drain the brake system.
e
Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.
•
[ABS] Remove the ABS unit.
•
Remove battery carrier.
•
Drain the clutch operating system.
e
Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.
•
Detach the clutch line at the separating point (1).
•
Detach the clutch slave cylinder and pull it to the
rear with the line.
•
Detach the lines at the clutch slave cylinder.
•
Install by following the above work instructions in
the reverse order.
•
Fill the clutch operating system.
•
[ABS] Add fluid to brake system.
L
Note:
When installing, fit new sealing rings.
X
Tightening torque:
Clutch line to handlebar fitting ...................... 18 Nm
21.6
2
Removing and installing clutch
slave cylinder
•
Remove fuel tank.
e
Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.
•
Detach clutch line at separating point (1).
•
Detach and raise the central electrical equipment
box at the left.
•
Detach the clutch slave cylinder and pull it to the
rear with the line.
•
Detach lines at clutch slave cylinder.
•
Remove clutch slave cylinder.
•
Install by following the above work instructions in
the reverse order.
•
Fill the clutch operating system.
L
Note:
When instaling, fit new sealing rings.
X
Tightening torque:
Clutch slave cylinder to gearbox .................... 9 Nm
