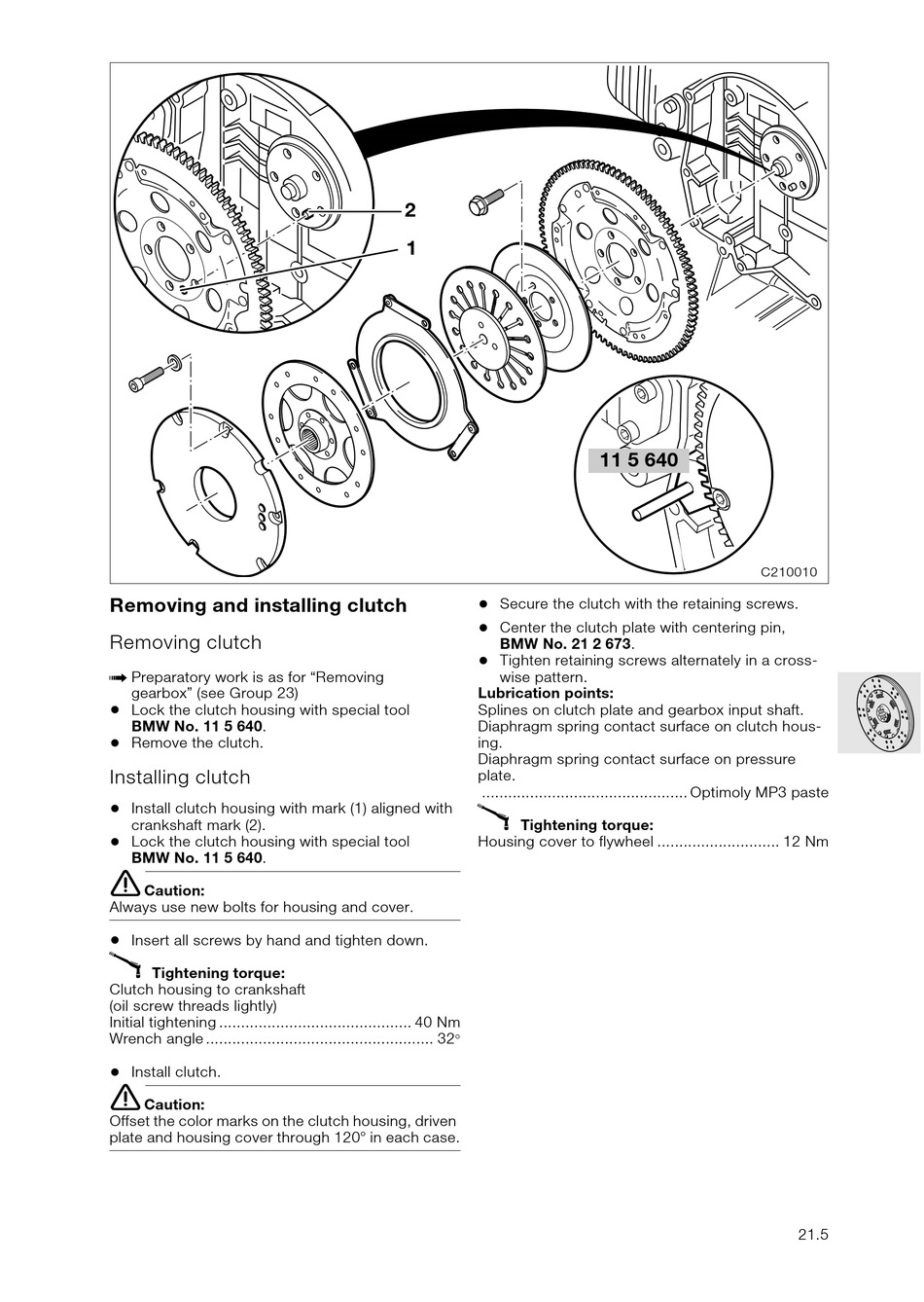

Removing and installing clutch

Removing clutch

Preparatory work is as for "Removing
a
gearbox" (see Group 23)
•
Lock the clutch housing with special tool
BMW No. 11 5 640.
•
Remove the clutch.

Installing clutch

•
Install clutch housing with mark (1) aligned with
crankshaft mark (2).
•
Lock the clutch housing with special tool
BMW No. 11 5 640.
e
Caution:
Always use new bolts for housing and cover.
•
Insert all screws by hand and tighten down.
X
Tightening torque:
Clutch housing to crankshaft
(oil screw threads lightly)
Initial tightening ............................................ 40 Nm
Wrench angle .................................................... 32°
•
Install clutch.
e
Caution:
Offset the color marks on the clutch housing, driven
plate and housing cover through 120° in each case.
2
1
•
Secure the clutch with the retaining screws.
•
Center the clutch plate with centering pin,
BMW No. 21 2 673.
•
Tighten retaining screws alternately in a cross-
wise pattern.
Lubrication points:
Splines on clutch plate and gearbox input shaft.
Diaphragm spring contact surface on clutch hous-
ing.
Diaphragm spring contact surface on pressure
plate.
............................................... Optimoly MP3 paste
X
Tightening torque:
Housing cover to flywheel ............................ 12 Nm
11 5 640
C210010
21.5
