EGR RollTrac RT0037 Installation Instructions Manual page 5

SECTION A
NOTE: IF TUBLINER FITTED,
REMOVE PLASTIC COVER
FIRST TO EXPOSE THE
RUBBER PLUG AND
REMOVE.
1

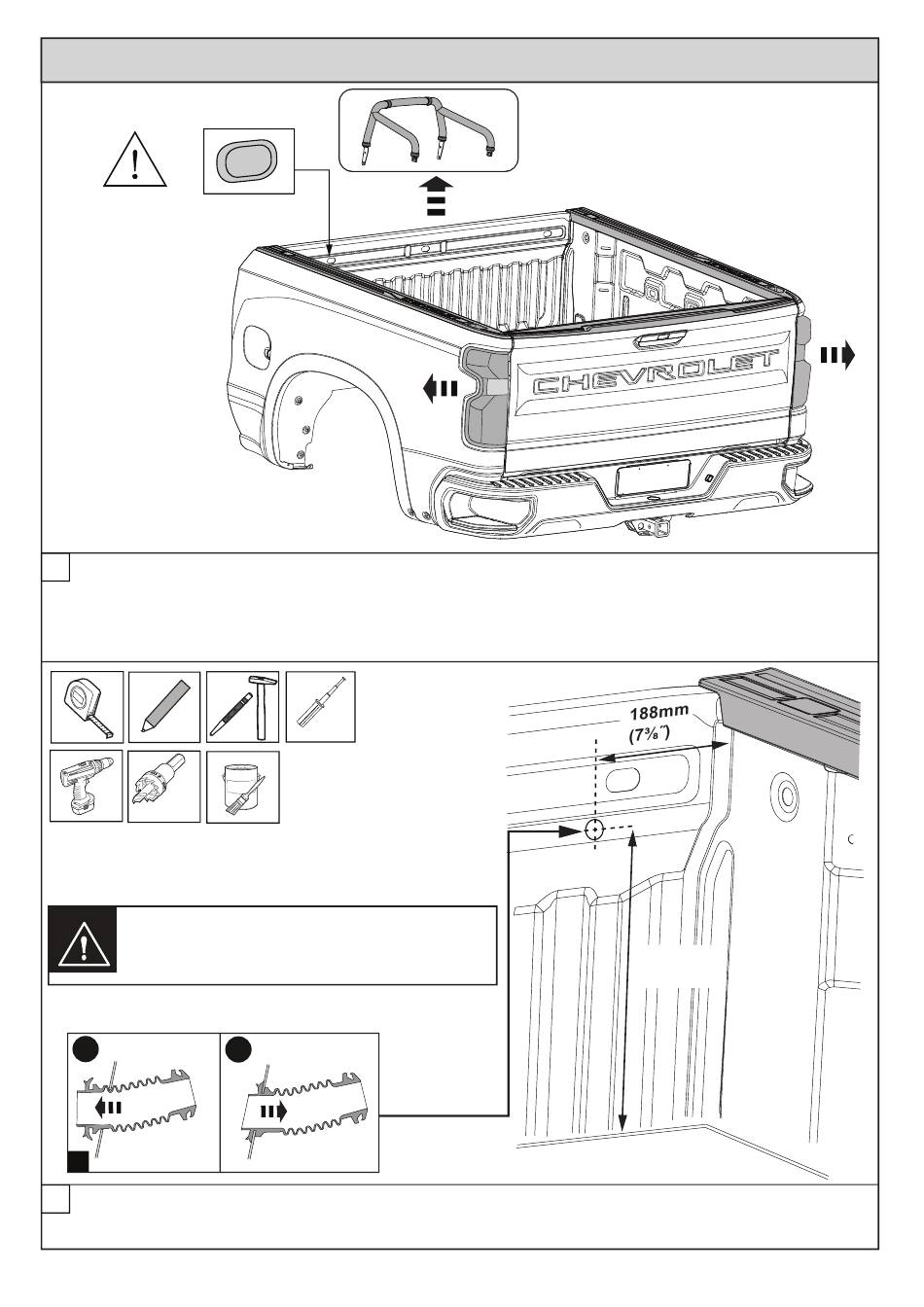

Carefully remove any accessories (Sports Bars, Cabin Guards, etc.) attached to the vehicle bed. Do not remove the
bed rail caps and tailgate step handle if fitted. Thoroughly wash the vehicle and bed and ensure that all dirt and grease
is removed. Allow to dry. Clean the top surfaces of the bed and tailgate and allow to dry. Carefully remove both Rear
Tail Lamps with the appropriate tools and store in safe place. Remove and discard the LHS rubber plug as shown.
Retain all hardware for re-installation.
Ø38mm (11/2")
ATTENTION
Ensure that the diameter of the hole does not exceed
Larger hole size will lead to water ingress
INSTALL FRONT DRAIN TUBES TO BED
1
16
2
Mark the position for the front drain holes in the bed front panel, center punch and drill with
RHS shown, repeat on the LHS.
supplied). Fit front drain tubes (16) to the bed.
RT0037
-- EGR Document ID#120520 v4
RHS & LHS
ANTI RUST
Ø38mm (11/2")
into the bed
2
Clean all burrs and coat the exposed metal with a suitable rust preventative (not
2022-07-08 16:26:14
Page 5 of 33
jhorwill --
BED PREPARATION
390mm
(15⅜˝)
Ø38mm (1¹/2") hole saw.
Issue 4: 27/04/22
