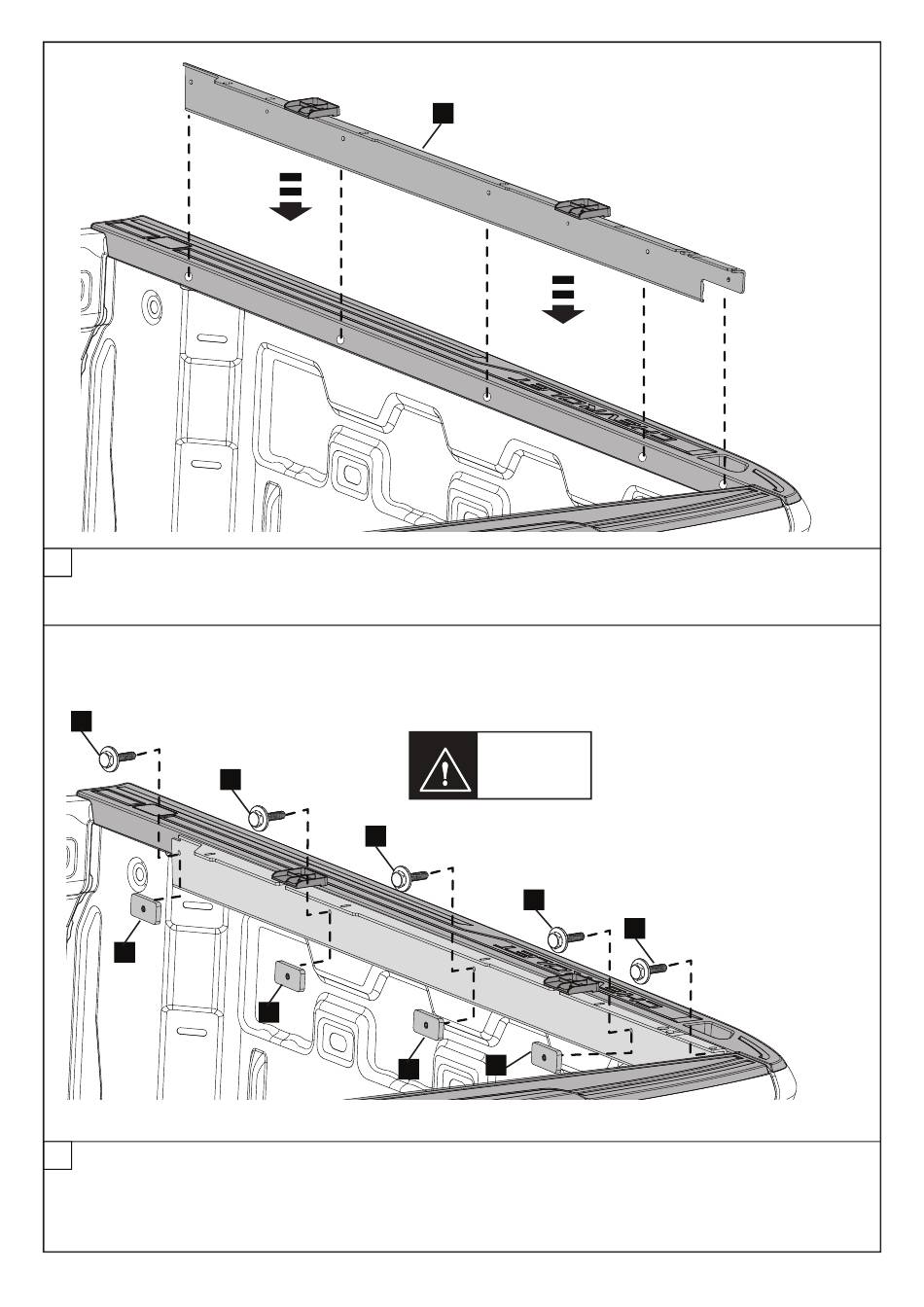

Place the mounting extrusion (6) on the inside of the bed until the setup jigs rest on top of the bed cap.
Align the 5 holes in the extrusion with the 5 holes in the bed side face (holes previously drilled in the plastic bed
cap).
19
10
14
Secure loosely the mounting extrusion (6) to the bed using 5 screws (19) and 4 tapped plates (10), slide the plates
behind the bed inner flange and while holding with one hand secure with screw. The last screw towards the rear of
the bed will not require plate as it will screw into the previously fitted M6 clip.
