1/2 Pull out the tray gently from the tray slot.
3 Place an SD card on the tray with the gold-coloured contacts facing downwards and
gently press the SD card into the tray to secure it.
4 Insert the tray back into the tray slot.
Battery

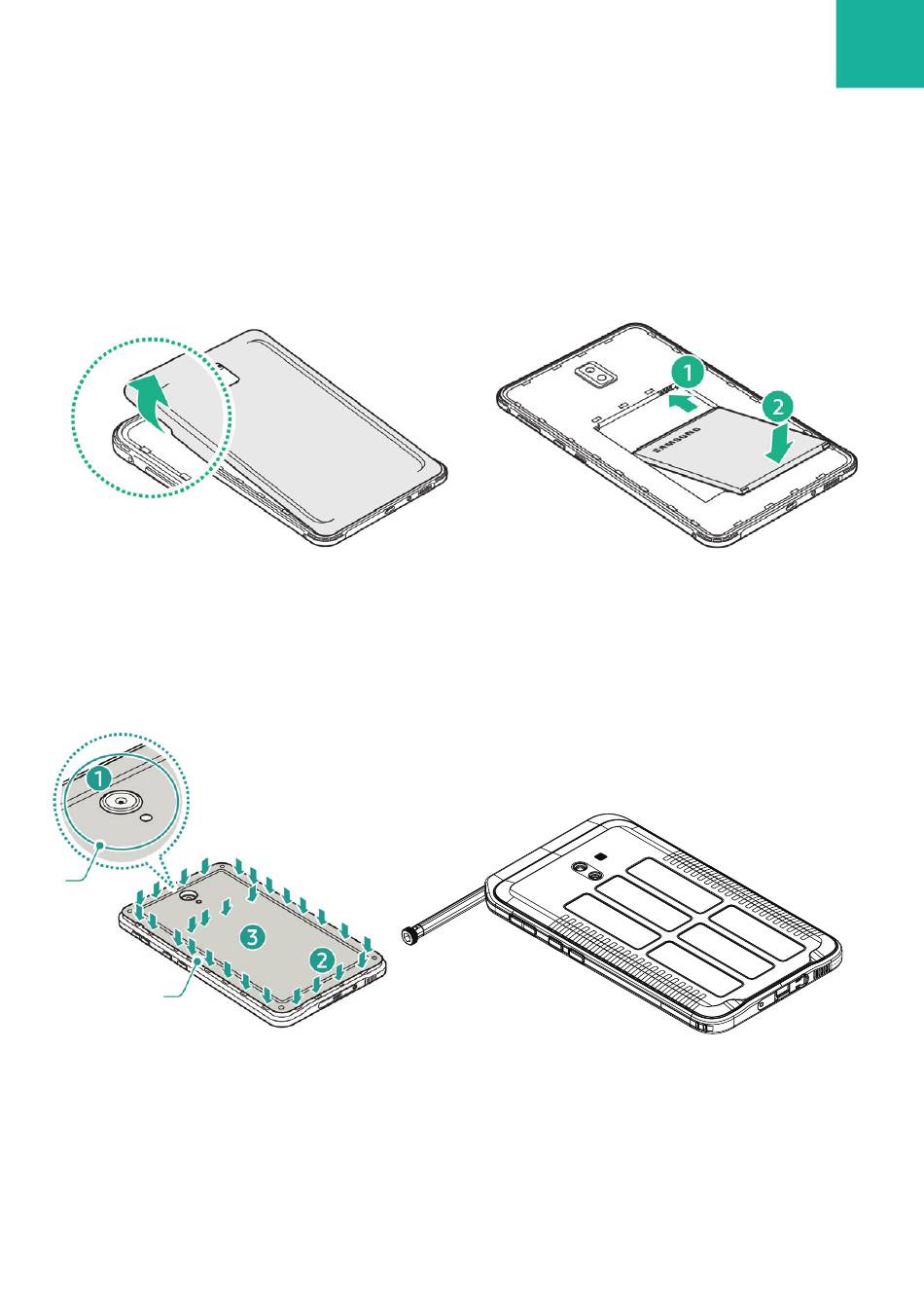

Installing the battery

1. Remove the Ex-Battery Cover.
2. Insert the battery with the battery's gold-coloured contacts properly aligned with the
device's contacts.
3. Replace the Ex-Battery Cover and the Ex-Protective Case.
Press

Charging the battery

Charge the battery before using it for the first time or when it has been unused for extended
periods. Use only Pepperl+Fuchs-approved charger and cable specifically designed for
your device. Incompatible charger and cable can cause serious injuries or damage to your
device.
7
