  • Page 1 Installation Guide IoT MIMO Direct-Connect Cell Signal Amplifier...
  • Page 2: Table Of Contents

    Index About the IoT MIMO ............1 Package Contents .
  • Page 3: About The Iot Mimo

    IoT MIMO Direct-Connect Cell Signal Amplifier The WilsonPro IoT MIMO is a Direct Connect solution for amplifying cellular network equipment with MIMO (multiple input/multiple output) capability, such as a cellular “hotspot” (ex. ‘Cradlepoint’ Device or similar), and other high data-rate applications. The IoT MIMO is “carrier agnostic”...
  • Page 4: Package Contents

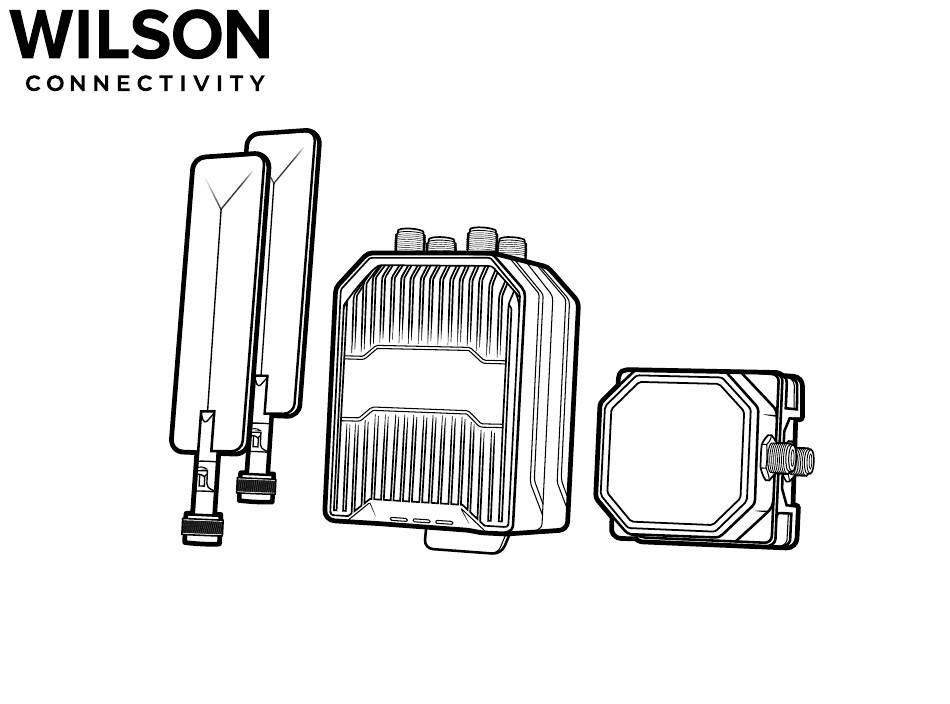

    Package Contents Dual Connector (2) External Hinged (2) POC Units (2) IoT 3.0 12V AC/DC Power Antennas Cell Signal Amplifiers (Power over Coax) Supply & Wall Mount Bracket 20’ Conjoined N to N Cable & (2) 1’ SMA to SMA Cables...
  • Page 5: Iot Mimo Application Overview

    IoT MIMO Application Overview 1 Foot SMA Cables IoT MIMO Stacked Amplifiers (mounted on wall next to window) External Hinged Stacked Antennas POC Units Cellular Hot Spot Device DC Power Cable...
  • Page 6: Step 1 Amplifiers Placement

    STEP 1 Amplifiers Placement Select a location to mount the IoT MIMO amplifiers that is away from excessive heat, direct sunlight, moisture and that has proper ventilation. Slide amplifiers screws to together as shown and secure with the fastened units together provided screws at the top and bottom.
  • Page 7: Step 2 Attach External Antennas

    STEP 2 Attach External External Hinged Antennas Antennas Attach the external antennas to top of the amplifiers labeled Outside Antenna. Position antennas so that one is horizontal and the other is vertical. NOTE: Outdoor antennas (e.g., omni) for good performance hinge can be installed if desired.
  • Page 8: Step 4 Connect Pocs To Amplifiers

    STEP 4 Connect POCs to connect cables to Amplifiers Amplifiers Connect the 20 foot twin cable to the POC units labeled AMP and then connect cable to the amplifiers labeled Data Device. Finger tighten only. connect cables to POC Units STEP 5 Connect POCs to Hotspot Device Connect the included one foot cables to the...
  • Page 9: Step 6 Power Up The Amplifiers

    STEP 6 Power Up the Amplifiers plug power Plug the Power Supply into a power into POC outlet and then connect the output cable to the power input of the POC Unit. NOTE: the Power Supply output cable can be plugged directly into the end of the amplifier labeled instead of the POC device if it is more convenient.
  • Page 10: Status Light Patterns

    Status Light Patterns SOLID GREEN D/L A Solid Green D/L LED indicates that your amplifier is functioning properly and there are no issues with installation. BLINKING GREEN U/L The U/L LED will rapidly blink (flicker) Green to indicate the amplifier is functioning properly and actively communicating with the cell tower.
  • Page 11 Status Light Patterns (cont.) seconds and then blink Green/Red for about 7 seconds, and then return to normal operation as described above. Refer to Troubleshooting section. SOLID RED U/L and D/L When a Band has been shuto , the U/L and D/L LEDs will be Solid Red. This is due to a feedback loop condition called oscillation.
  • Page 12: Troubleshooting

    Troubleshooting FIXING RED LIGHT ISSUES This involves Solid Red & Blinking Green/Red lights. ■ Make sure all connections are tight. Un-plug and re-plug in power supply. ■ Increase the distance (horizontally or vertically) between the external antenna/ amplifier and the data device. Un-plug and re-plug in power supply. LIGHTS OFF ■...
  • Page 13: Safety Guidelines

    Verify that both the Outside Antenna and the adapter extension cable are connected to the Signal Amplifier before powering up the Signal Amplifier. Use only the power supply provided in this package. Use of a non-Wilson Electronics products may damage your equipment.
  • Page 14 Safety Guidelines (cont.) FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: https://www.weboost.com/carrier-registration...
  • Page 15: Antenna Info

    Antenna Info The following accessories are certified by the FCC to be used with the IoT 3.0 Direct-Connect Cell Signal Amplifier. This radio transmitter 4726A-079 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
  • Page 16: Specifications

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wilson Electronics LLC could void the authority to operate this equipment. This device contains licence- exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
  • Page 17: 30 Day Money-Back Guarantee

    DISCLAIMER: The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
  • Page 18 Notes 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com...
  • Page 19 Notes 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com...
  • Page 20 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com Copyright © 2024 Wilson Electronics. All rights reserved. Wilson Electronics products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents GDE000600_Rev01_11.07.24 NOT AFFILIATED WITH WILSON ANTENNA...
