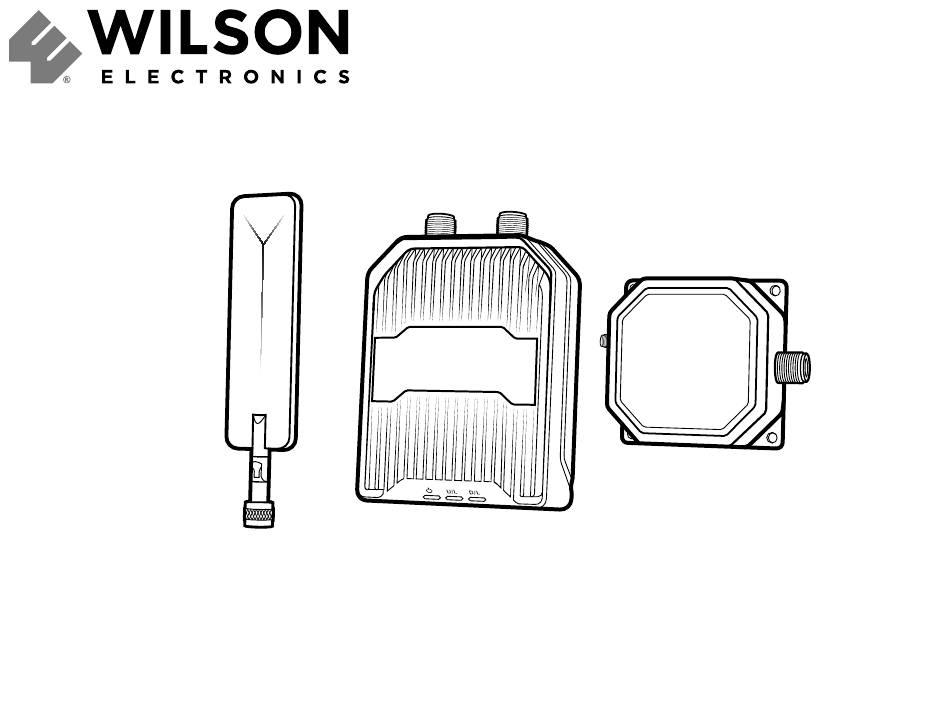

Page 1 Installation Guide IoT 3.0 Direct-Connect Cell Signal Ampliﬁer...
Page 2: Table Of Contents
Index About the IoT 3.0 ............. 1 Package Contents .
Page 3: About The Iot 3.0
IoT 3.0 Direct-Connect Cell Signal Ampliﬁer The WilsonPro IoT 3.0 is a “Direct-Connect” solution for amplifying cellular network capable equipment and devices, including vending machines, ATMs, security panels, and cellular “hotspots”. The IoT 3.0 is “carrier agnostic” and pre-approved by all major cell carriers under FCC “part 20”...
Page 4: Package Contents
Package Contents IoT 3.0 20’ N to N Cable External Hinged Cell Signal Ampliﬁer & Antenna (Power over & 1’ SMA to SMA Wall Mount Bracket Coax) Unit Cable 12V AC/DC Power 1’ SMA to MMCX Supply & 12V DC &...
Page 5: Iot Retail Application Overview
IoT Retail Application Overview External Antenna IoT 3.0 Ampliﬁer back of retail machine Data Device Power over Coax Unit to power with surge protection...
Page 6: Iot Retail Application Example Steps
IoT Retail Application Example IoT 3.0 Ampliﬁer STEP 1 Ampliﬁer Placement Select a location to install the signal ampliﬁer that is away from excessive heat, direct sunlight, moisture and that Mounting has proper ventilation. Secure ampliﬁer Bracket with mounting bracket. External STEP 2 Attach External Antenna...
Page 7 STEP 3 Connect Data Device to POC Place the POC (Power over Coax) unit near the data device. Connect the included one foot cable to the Data data device, then to the connector Device on the POC, labeled Data Device. Finger tighten connectors only.
Page 8 STEP 5 Power Up the Ampliﬁer Plug the power supply into a power outlet (or connect to a hardwired 12V DC source with the included hardware cable) and then connect the output cable to the power input of the POC Unit. plug power into POC NOTE: The power supply output cable...
Page 9: Iot Security Application Overvie
IoT Security Application Overview POC Unit IoT 3.0 Ampliﬁer DC power Security Control Panel...
Page 10: Iot Security Application Example Steps
IoT Security Application Example IoT 3.0 STEP 1 Ampliﬁer Placement Ampliﬁer Select a location to install the signal ampliﬁer that is away from excessive heat, direct sunlight, moisture and that has proper ventilation. Secure ampliﬁer with mounting bracket. Mounting Bracket STEP 2 Attach External External Antenna...
Page 11 STEP 3 Connect Data Device to POC ﬁnger tighten Connect the included one foot cable to the only security panel, then to the POC (Power over Coax), labeled Data Device. STEP 4 Connect POC to Ampliﬁer Connect the 20 foot cable to the POC unit labeled AMP and then connect cable to ﬁnger tighten only...
Page 12 STEP 5 Power Up the Ampliﬁer Plug the Power Supply into a power plug power power outlet (or connect to a hardwired 12V DC into POC source with the included hardware cable) and then connect the output cable to the power input of the POC Unit.
Page 13: Status Light Patterns
Status Light Patterns SOLID GREEN D/L A Solid Green D/L LED indicates that your ampliﬁer is functioning properly and there are no issues with installation. BLINKING GREEN U/L The U/L LED will rapidly blink (ﬂicker) Green to indicate the ampliﬁer is functioning properly and actively communicating with the cell tower.
Page 14 Status Light Patterns (cont.) SOLID RED U/L and D/L When a Band has been shuto , the U/L and D/L LEDs will be Solid Red. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut o to prevent harmful interference with a nearby cell tower.
Page 15: Troubleshooting
Troubleshooting FIXING RED LIGHT ISSUES This involves Solid Red & Blinking Green/Red lights. ■ Make sure all connections are tight. Un-plug and re-plug in power supply. ■ Increase the distance (horizontally or vertically) between the external antenna/ ampliﬁer and the data device. Un-plug and re-plug in power supply. LIGHTS OFF ■...
Page 16: Safety Guidelines
Verify that both the Outside Antenna and the adapter extension cable are connected to the Signal Ampliﬁer before powering up the Signal Ampliﬁer. Use only the power supply provided in this package. Use of a non-Wilson Electronics products may damage your equipment.
Page 17 Safety Guidelines (cont.) FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: https://www.weboost.com/carrier-registration...
Page 18: Antenna Info
Antenna Info The following accessories are certiﬁed by the FCC to be used with the IoT 3.0 Direct-Connect Cell Signal Ampliﬁer. This radio transmitter 4726A-079 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
Page 19: Specifications
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wilson Electronics LLC could void the authority to operate this equipment. This device contains licence- exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Page 20: Warranty
DISCLAIMER: The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
Page 21 Notes 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com...
Page 22 Notes 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com...
Page 23 Notes 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com...
Page 24 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.wilsonelectronics.com support@wilsonelectronics.com Copyright © 2024 Wilson Electronics. All rights reserved. Wilson Electronics products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents GDE000599_Rev02_08.28.24 NOT AFFILIATED WITH WILSON ANTENNA...
